Trailer Camper Adapter
Trailer Camper Adapter

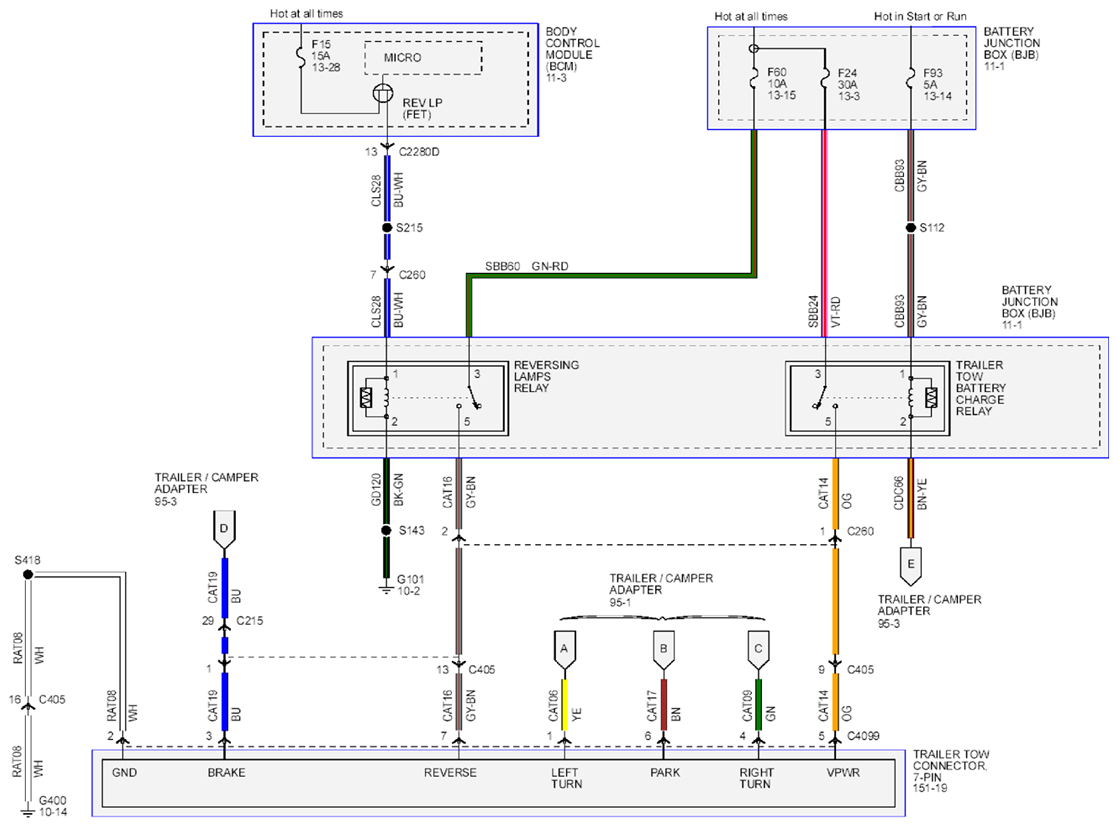

Fig 1: Trailer Camper Adapter - Wiring Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.

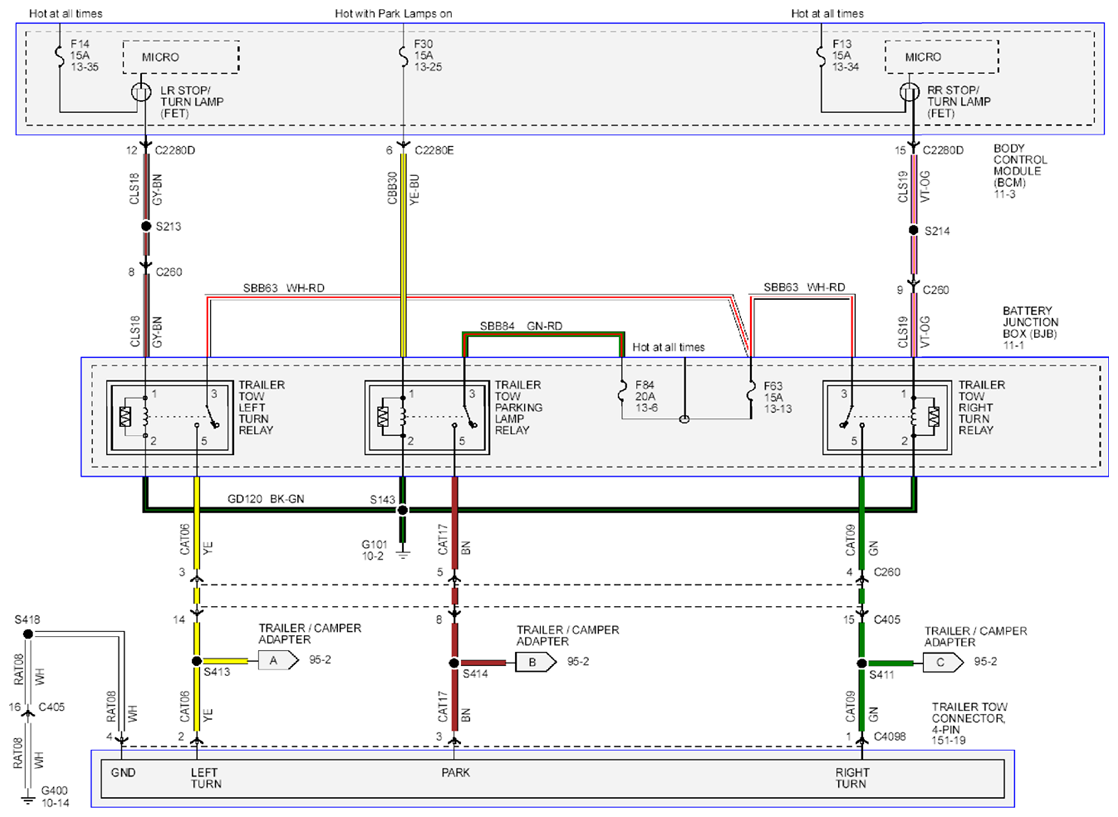

Fig 2: Trailer Camper Adapter - Wiring Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.

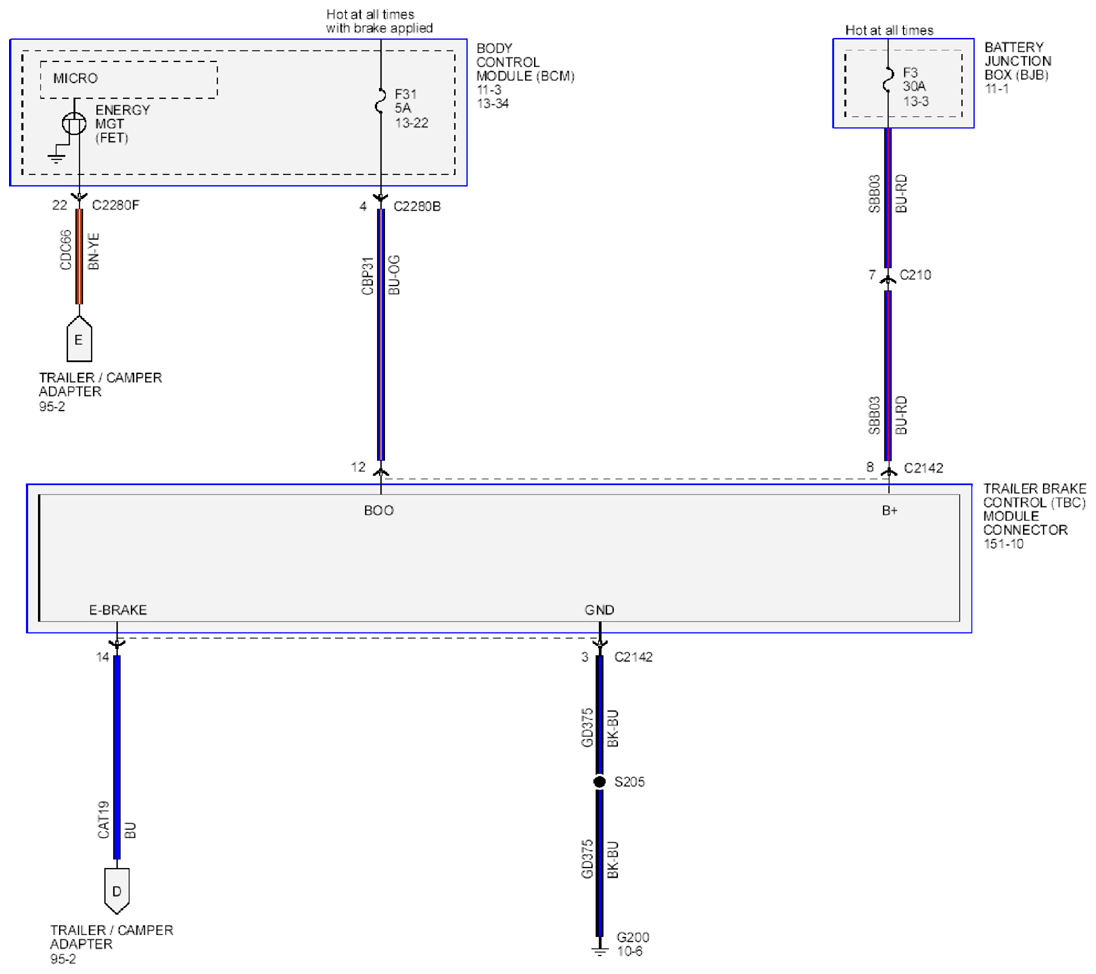

Fig 3: Trailer Camper Adapter - Wiring Diagram (3 Of 3)
Courtesy of FORD MOTOR CO.
