Without IA

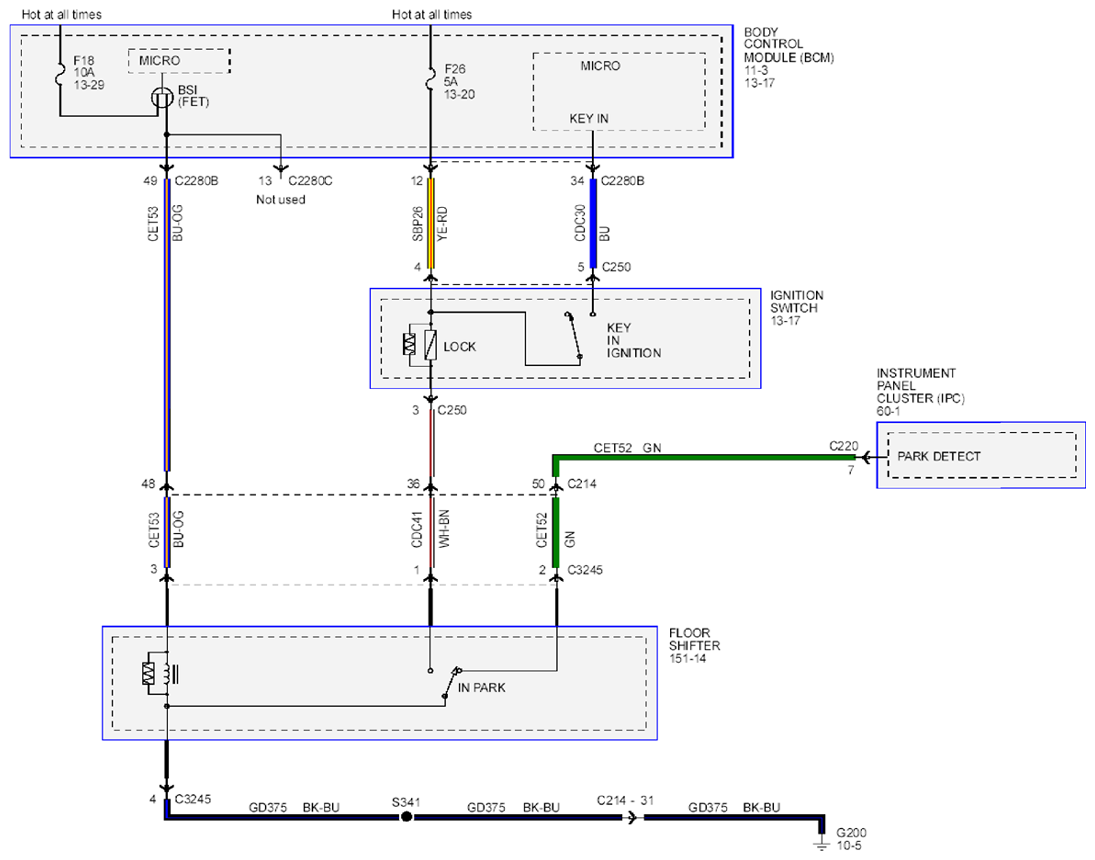

Fig 1: Shift Interlock - Without IA - Wiring Diagram

G09252413

Courtesy of FORD MOTOR CO.
