Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Shift Interlock
>>
With IA
With IA

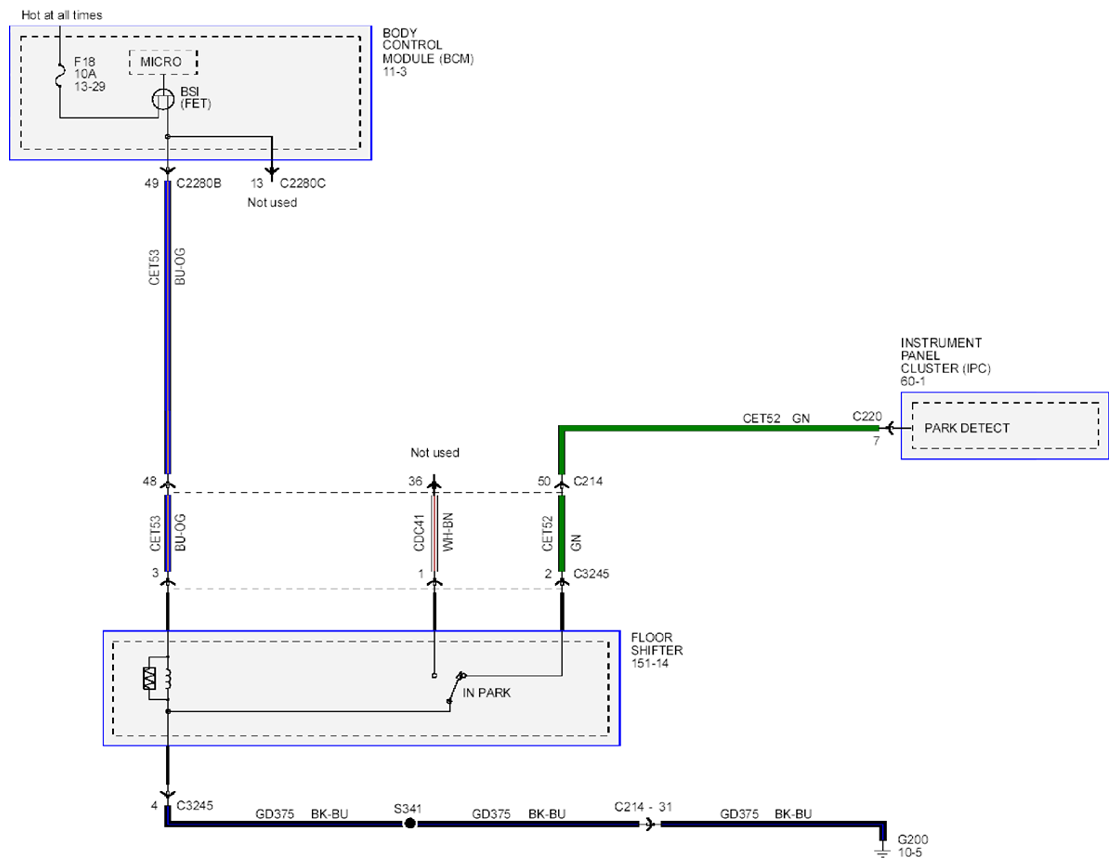

Fig 1: Shift Interlock - With IA - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

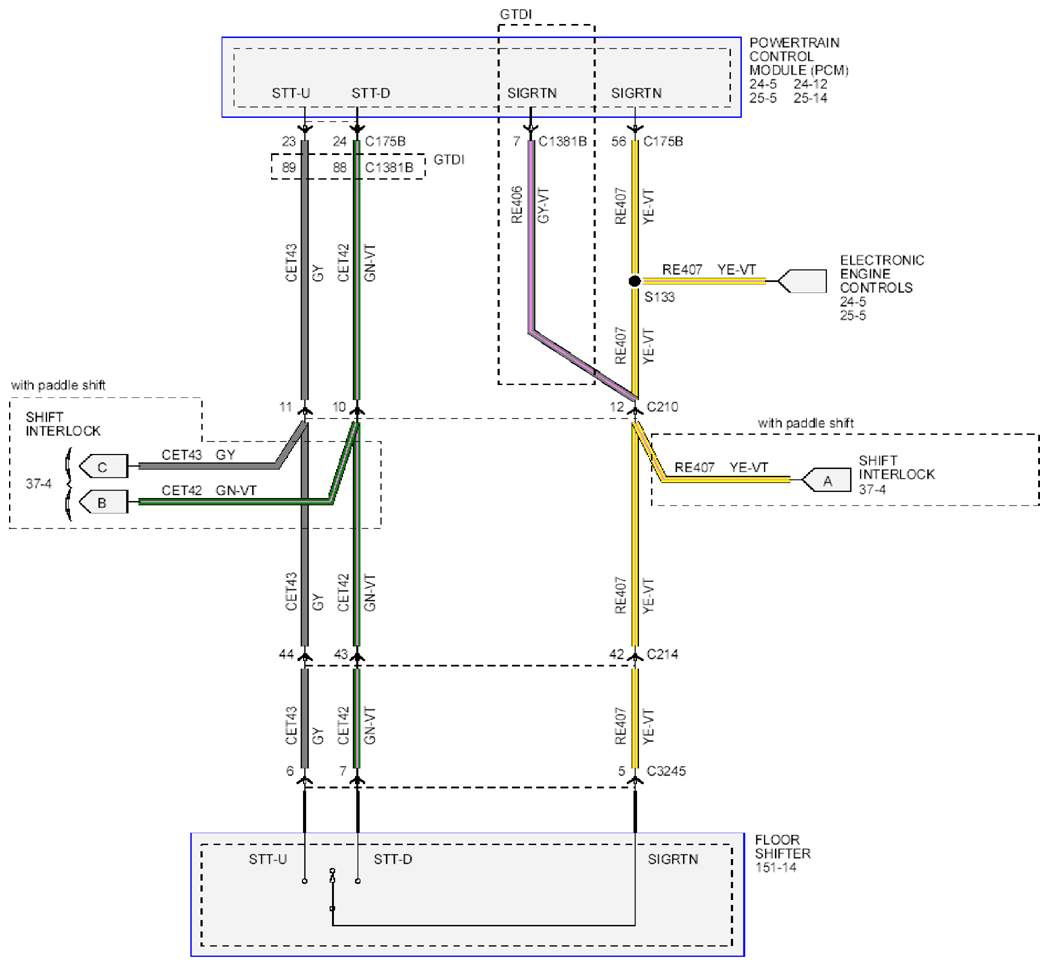

Fig 2: Shift Interlock - With IA - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
