6-Way Power Seat - Driver
6-Way Power Seat - Driver

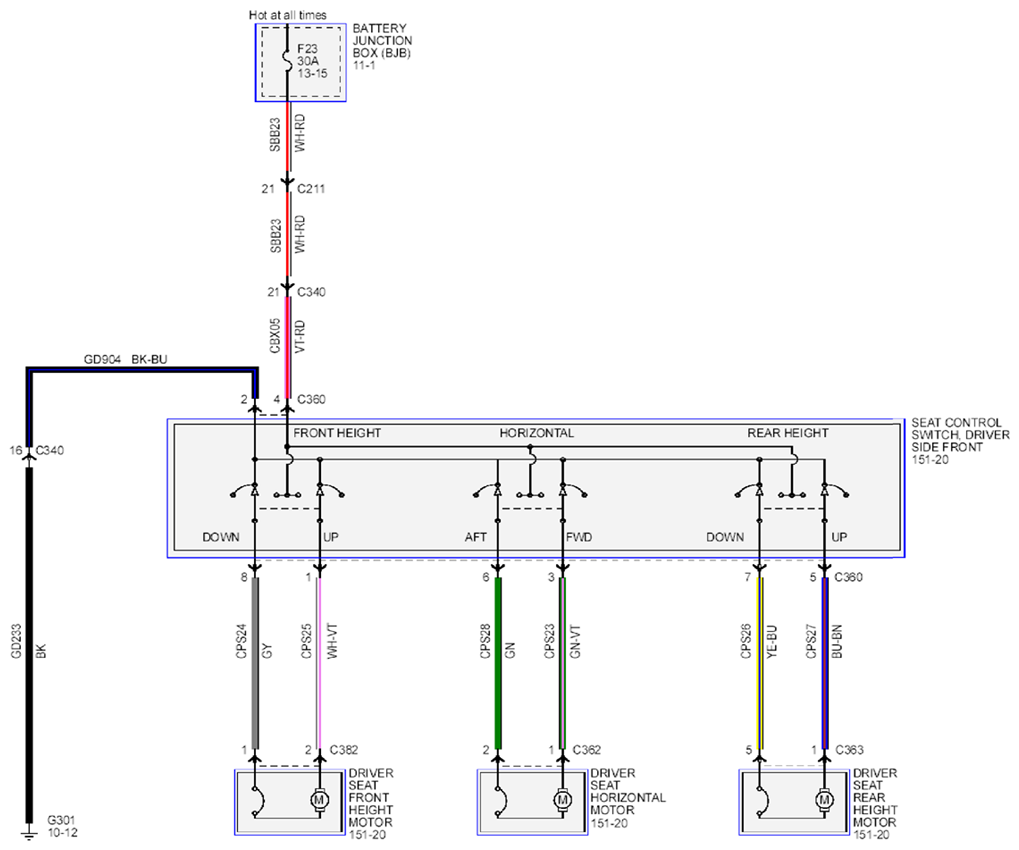

Fig 1: Driver 6-Way Power Seats - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
