10-Way Power Seat Without Memory - Driver
10-Way Power Seat Without Memory - Driver

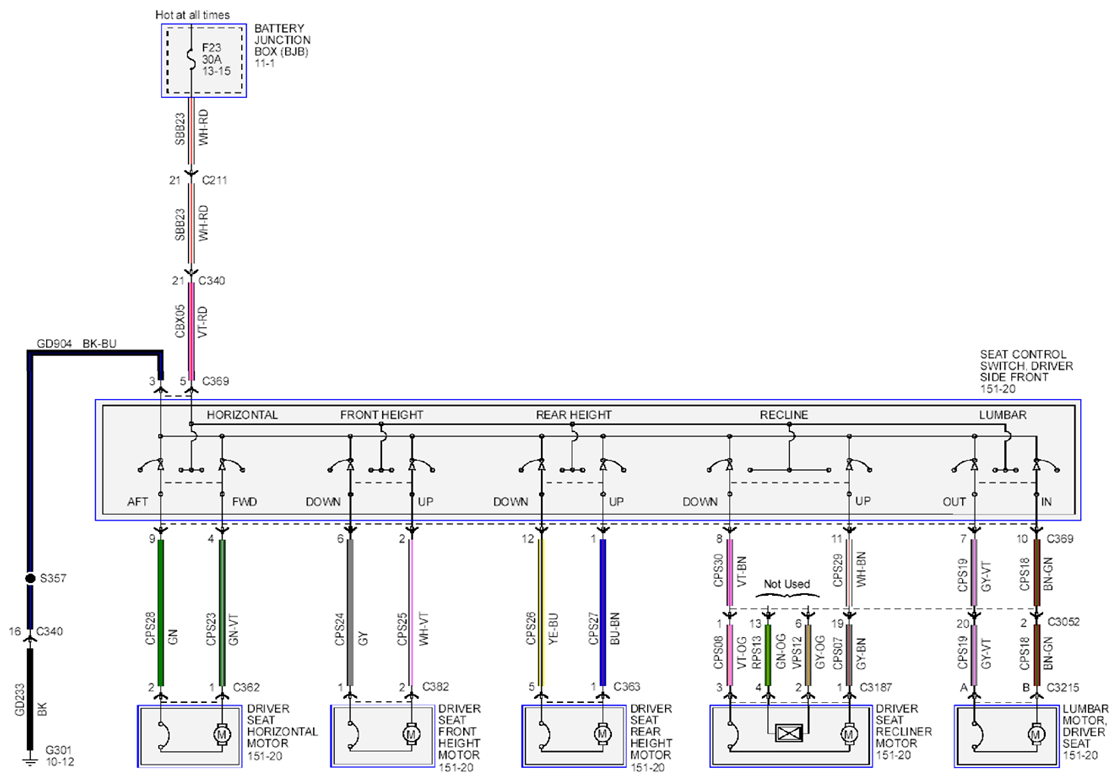

Fig 1: Driver 10-Way Power Seats Without Memory - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
