Flex SEL, FWD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Power Distribution BCM
>>
F79, F87, F92, F93, F94
F79, F87, F92, F93, F94

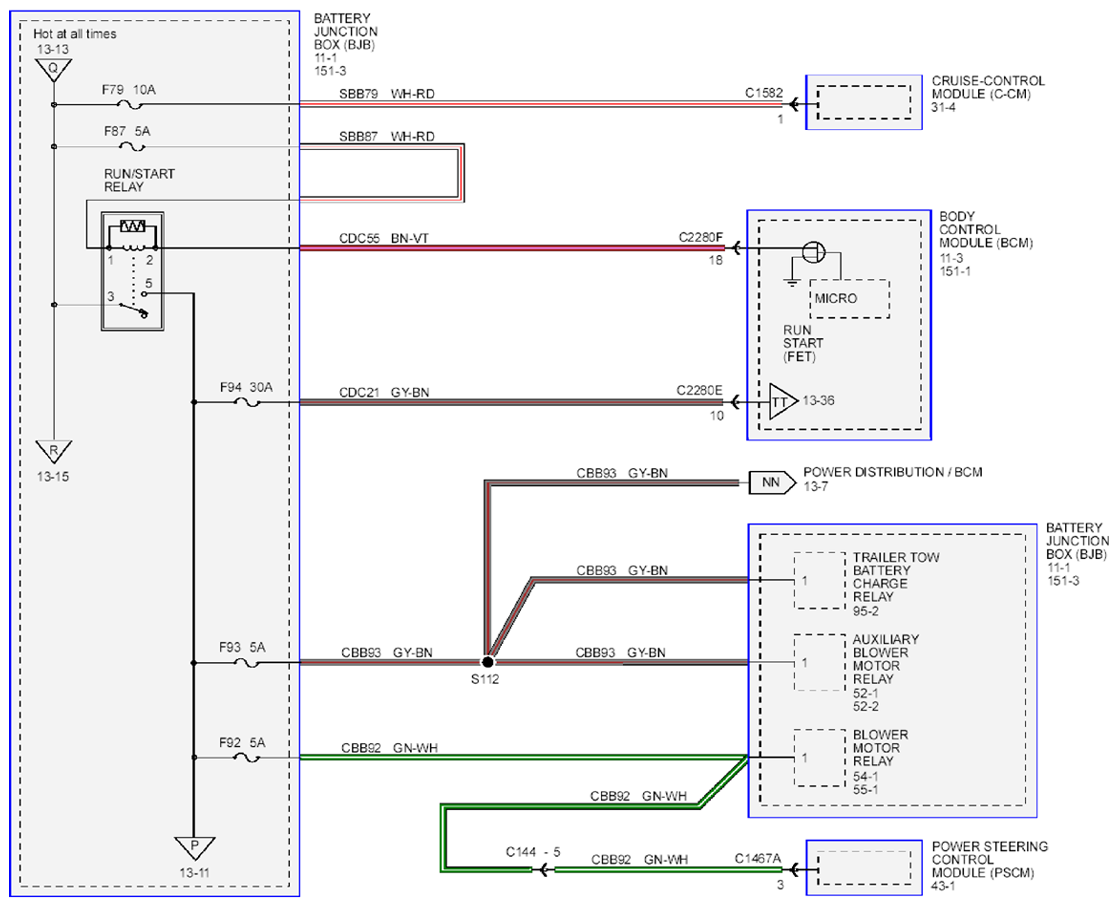

Fig 1: Power Distribution Wiring Diagram - F79, F87, F92, F93, F94
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
