Ford
>>
2014
>>
Flex SEL, FWD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Power Distribution BCM
>>
F54, F7, F28, F29, F43, F56
F54, F7, F28, F29, F43, F56

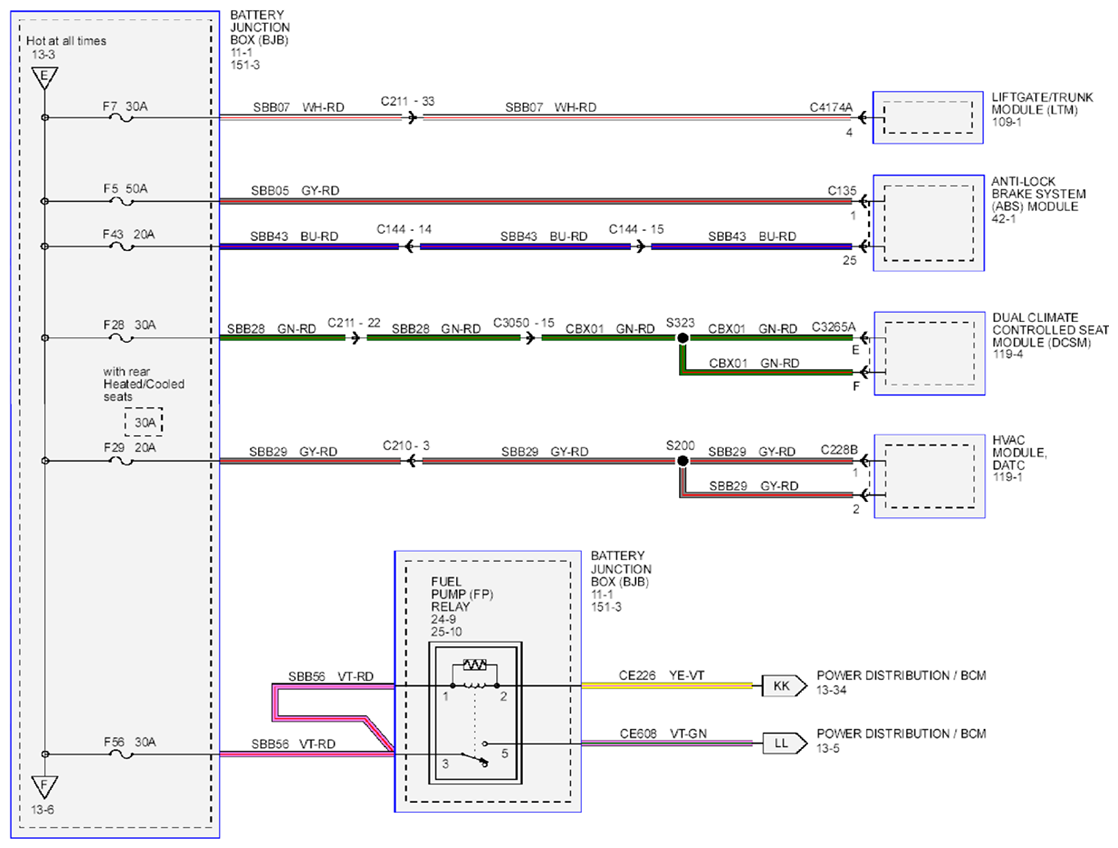

Fig 1: Power Distribution Wiring Diagram - F54, F7, F28, F29, F43, F56
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
