Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Power Distribution BCM
>>
F23, F27, F43, F44, F46
F23, F27, F43, F44, F46

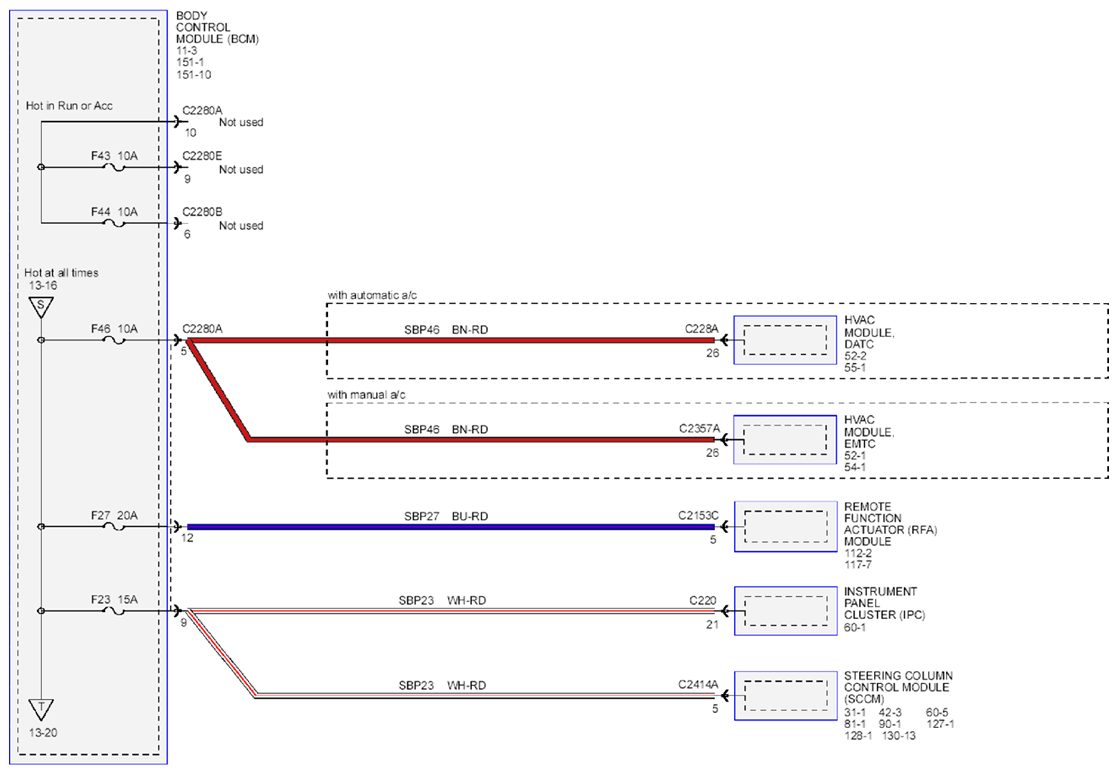

Fig 1: Power Distribution Wiring Diagram - F23, F27, F43, F44, F46
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
