F1, F3, F9, F26

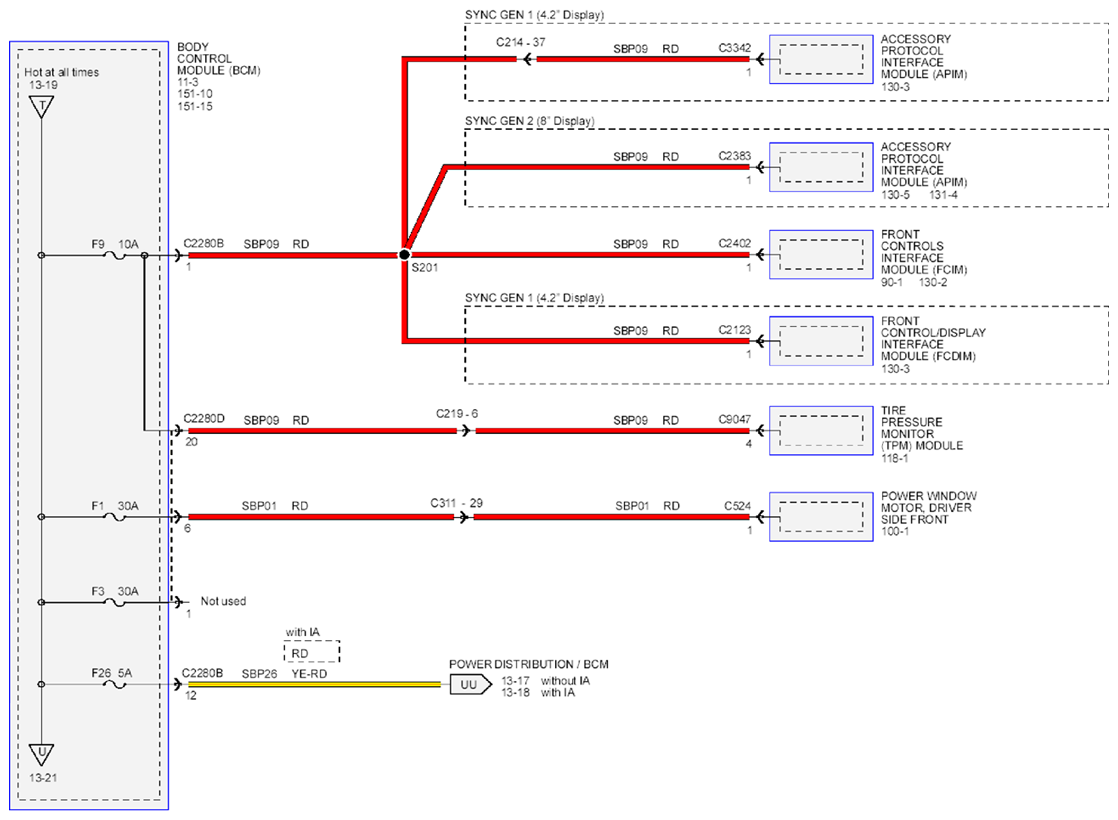

Fig 1: Power Distribution Wiring Diagram - F1, F3, F9, F26

G09252339

Courtesy of FORD MOTOR CO.
