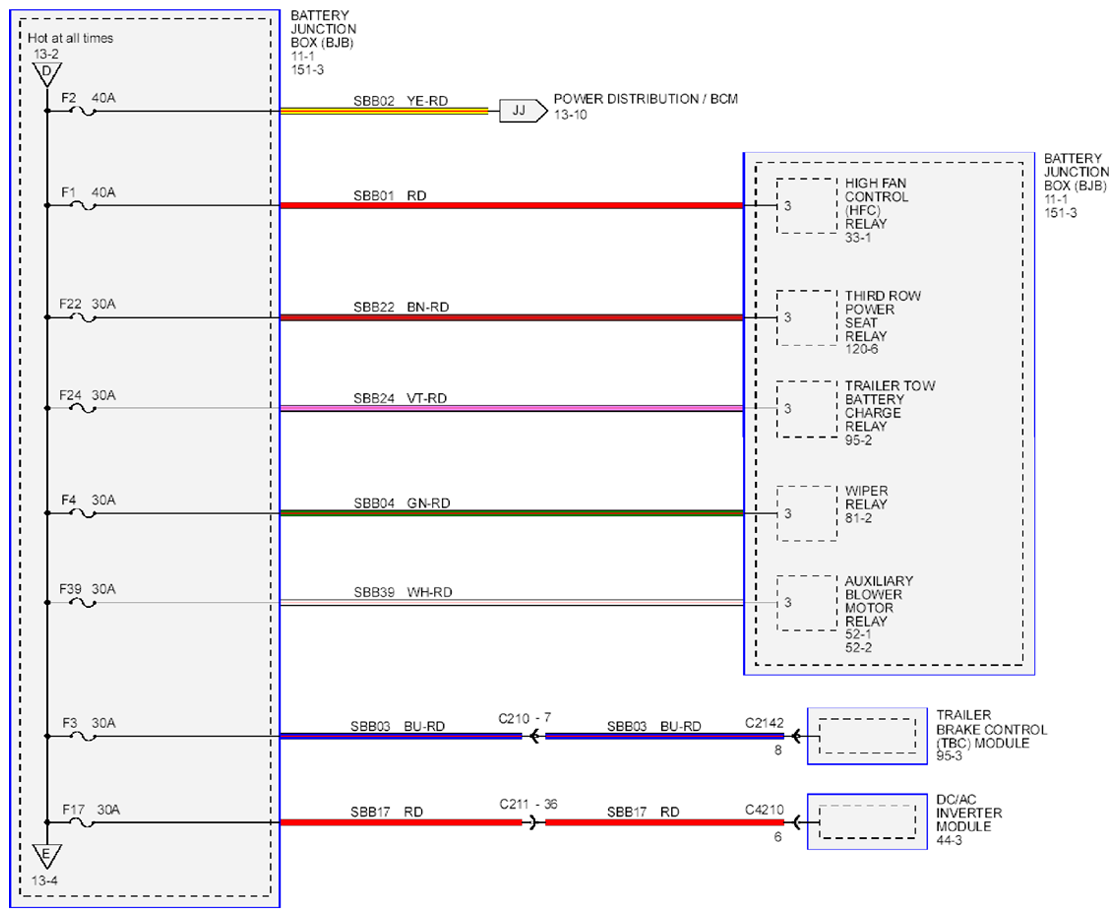

Home >> Ford >> 2014 >> Flex SEL, FWD >> Repair and Diagnosis (Single Page) >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams >> Power Distribution BCM >> F1, F2, F3, F4, F17, F22, F24, F39
