Interior Lamps

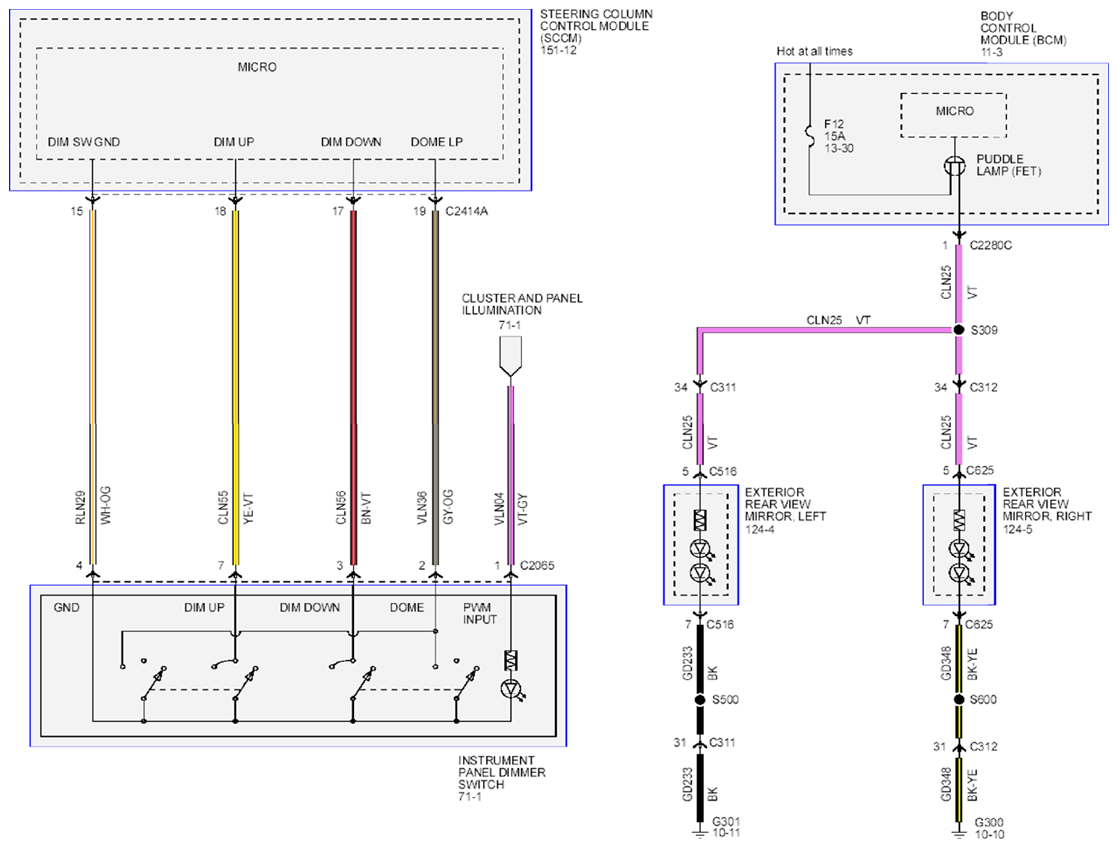

Fig 1: Interior Lamps - Wiring Diagram (1 Of 5)
G09252471Courtesy of FORD MOTOR CO.

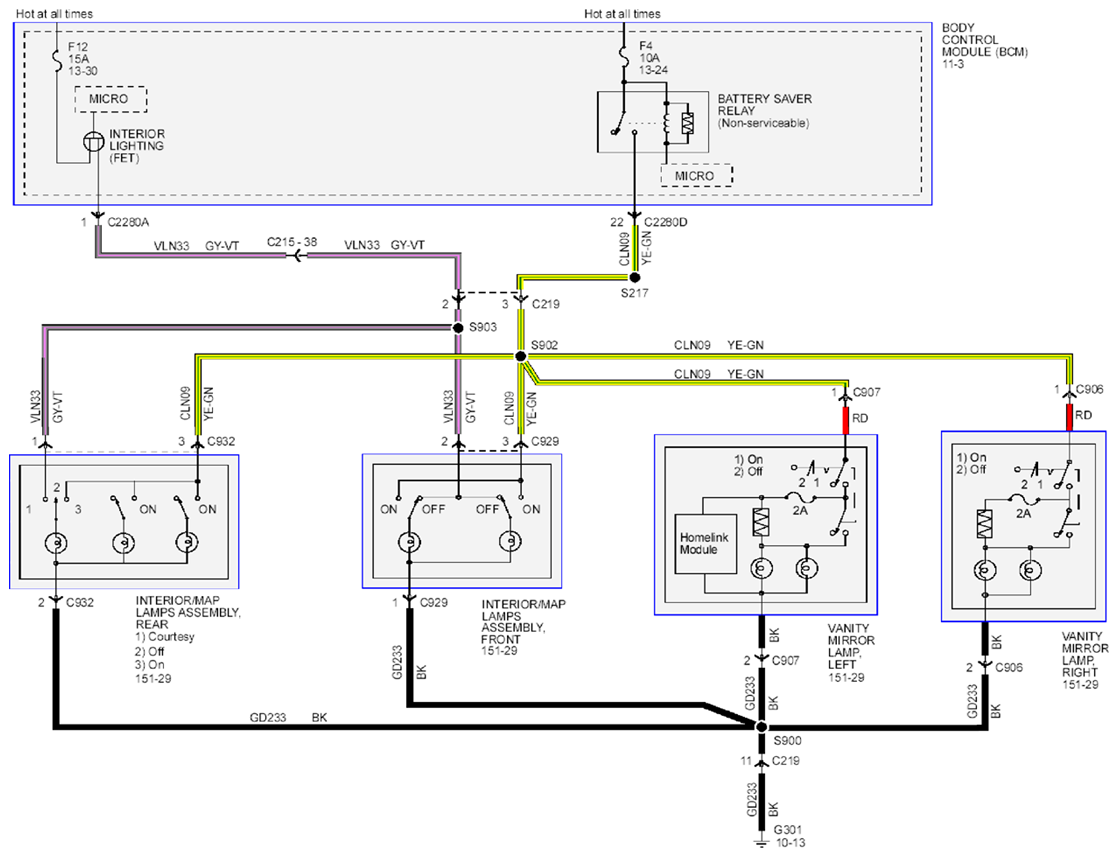

Fig 2: Interior Lamps - Wiring Diagram (2 Of 5)
G09252472Courtesy of FORD MOTOR CO.

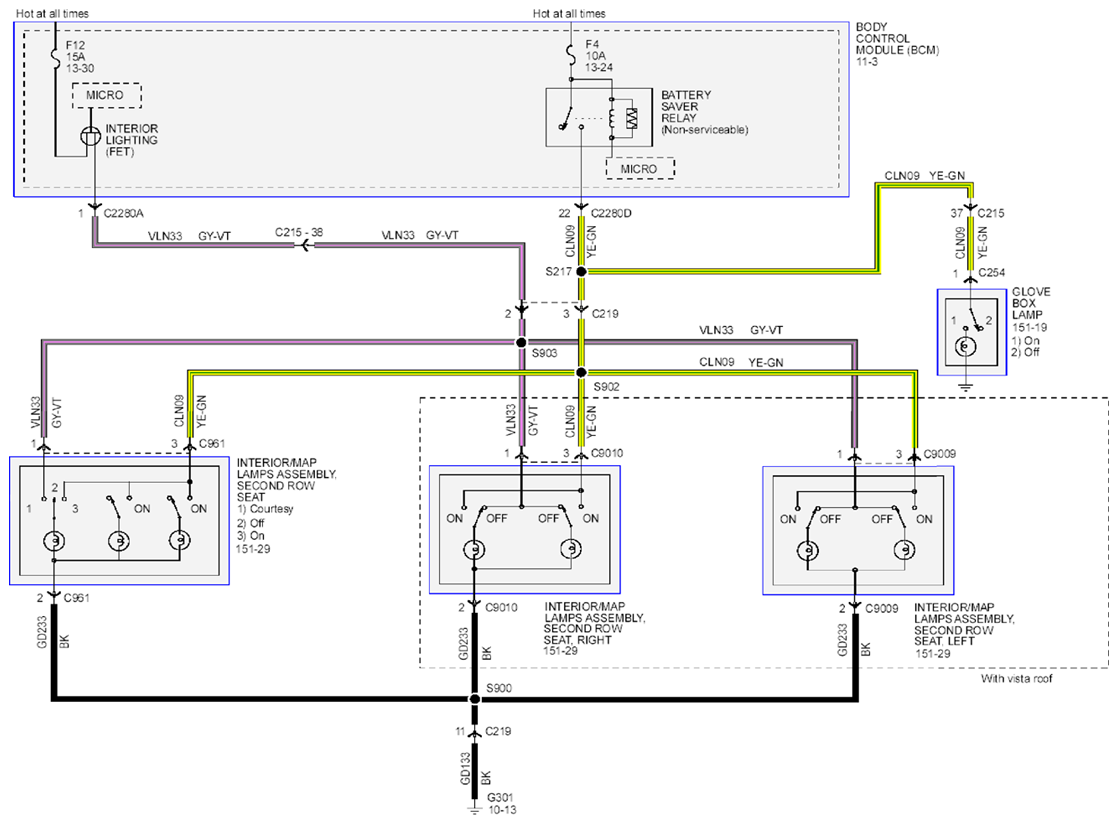

Fig 3: Interior Lamps - Wiring Diagram (3 Of 5)
G09252473Courtesy of FORD MOTOR CO.

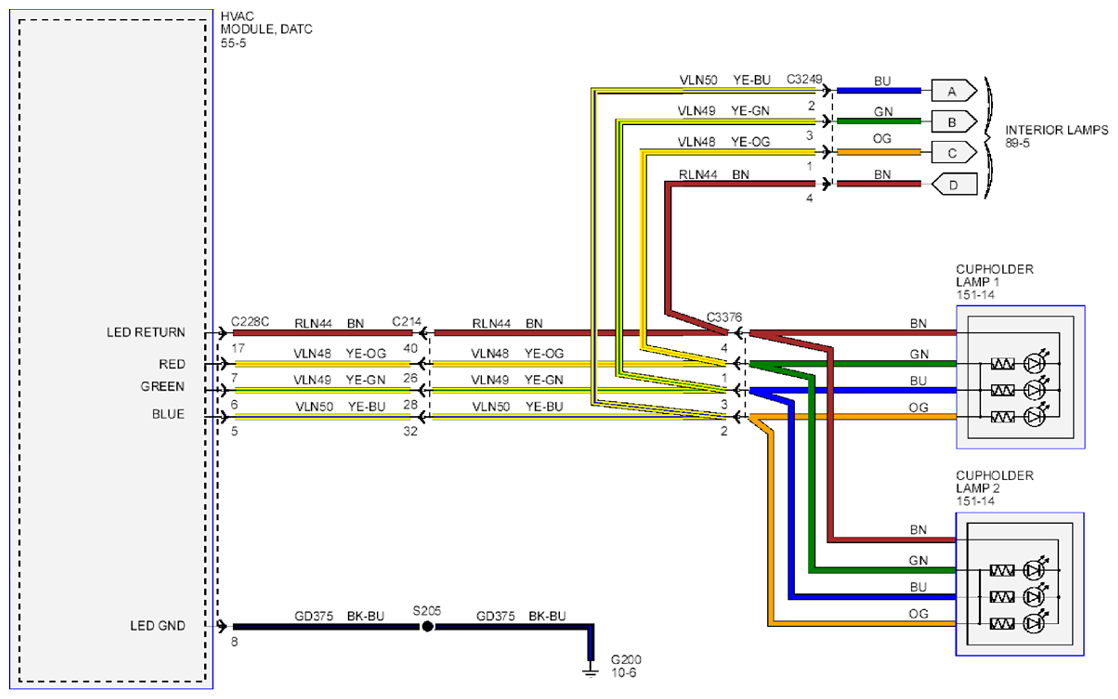

Fig 4: Interior Lamps - Wiring Diagram (4 Of 5)
G09252474Courtesy of FORD MOTOR CO.

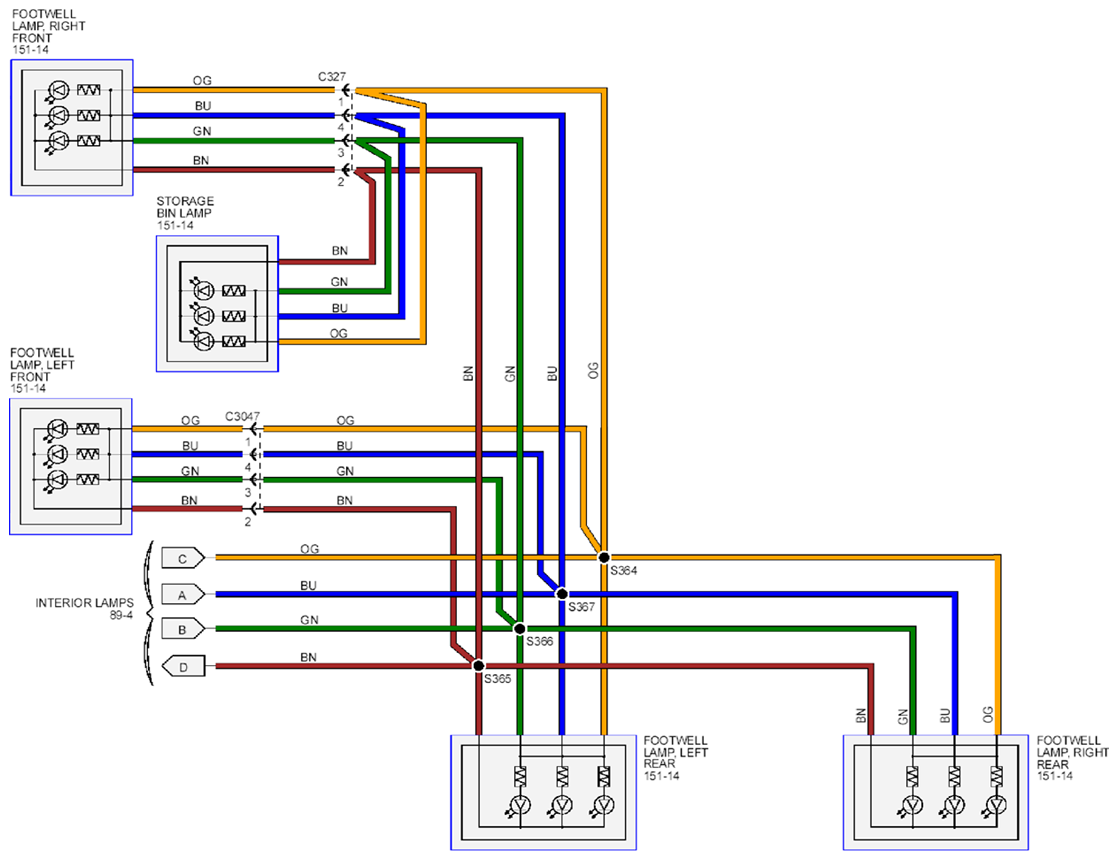

Fig 5: Interior Lamps - Wiring Diagram (5 Of 5)
G09252475Courtesy of FORD MOTOR CO.
