Electronic Engine Controls - 3.5L GTDI

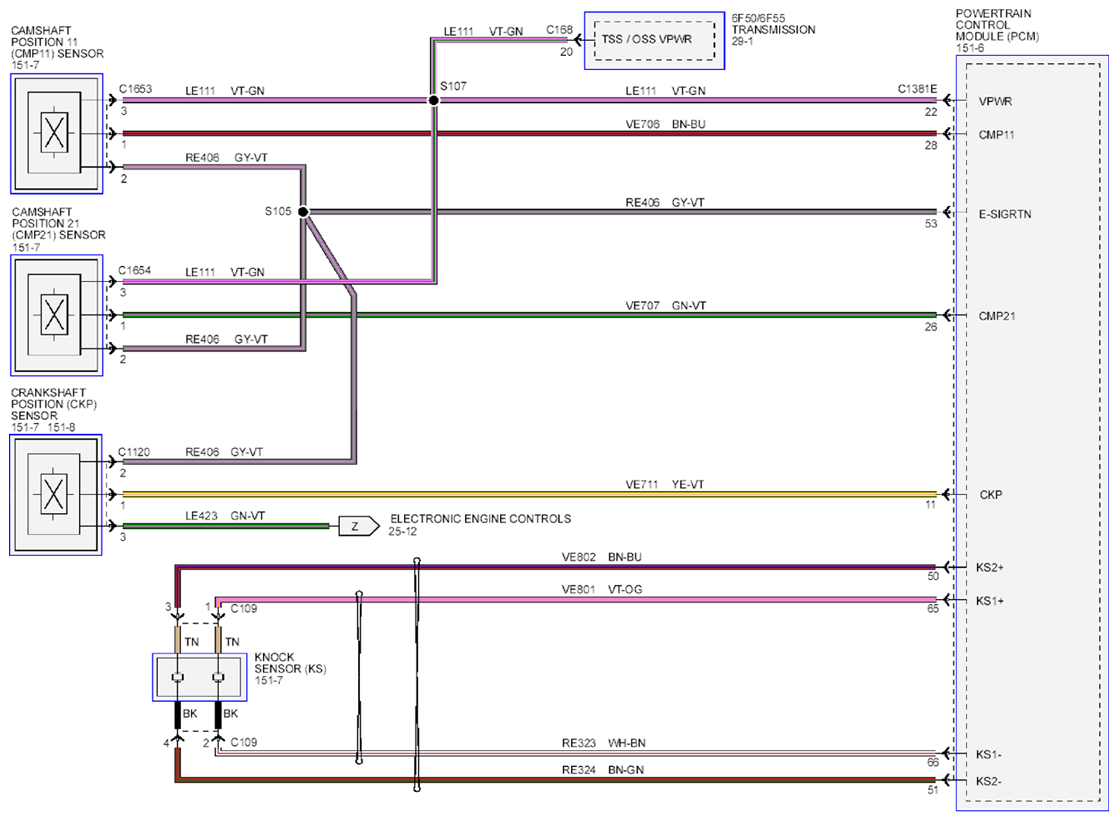

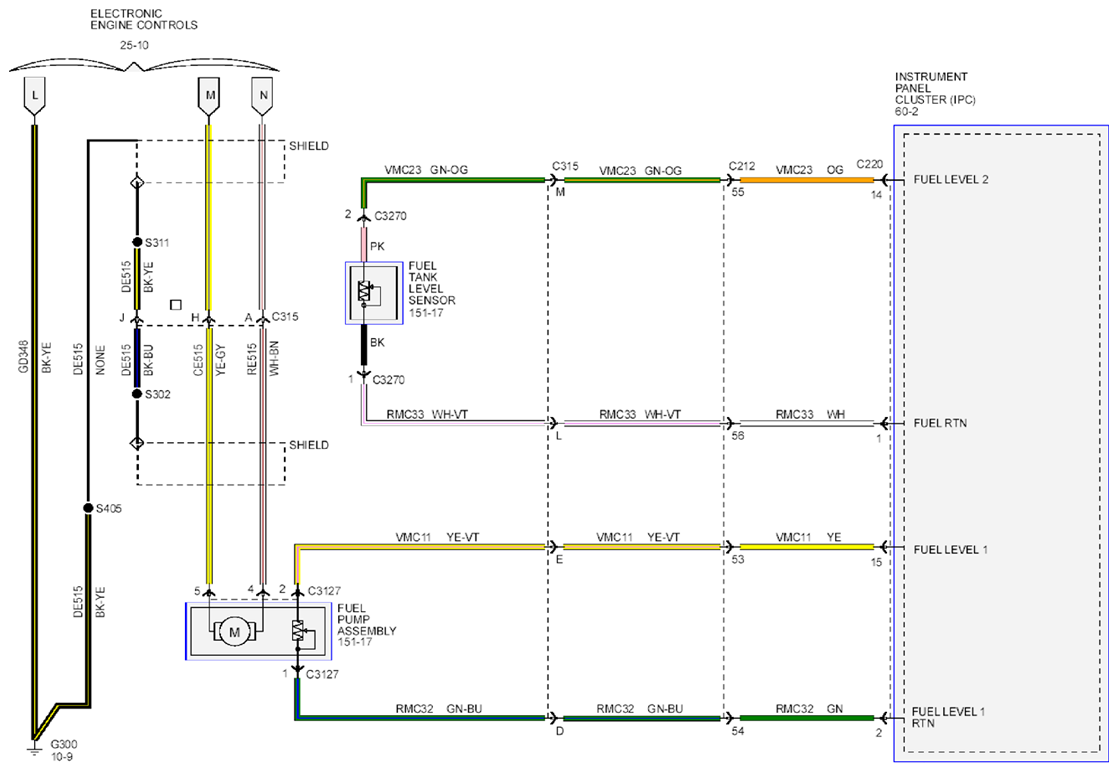

Fig 1: Electronic Engine Controls - 3.5L GTDI - Wiring Diagram (1 Of 15)

Courtesy of FORD MOTOR CO.

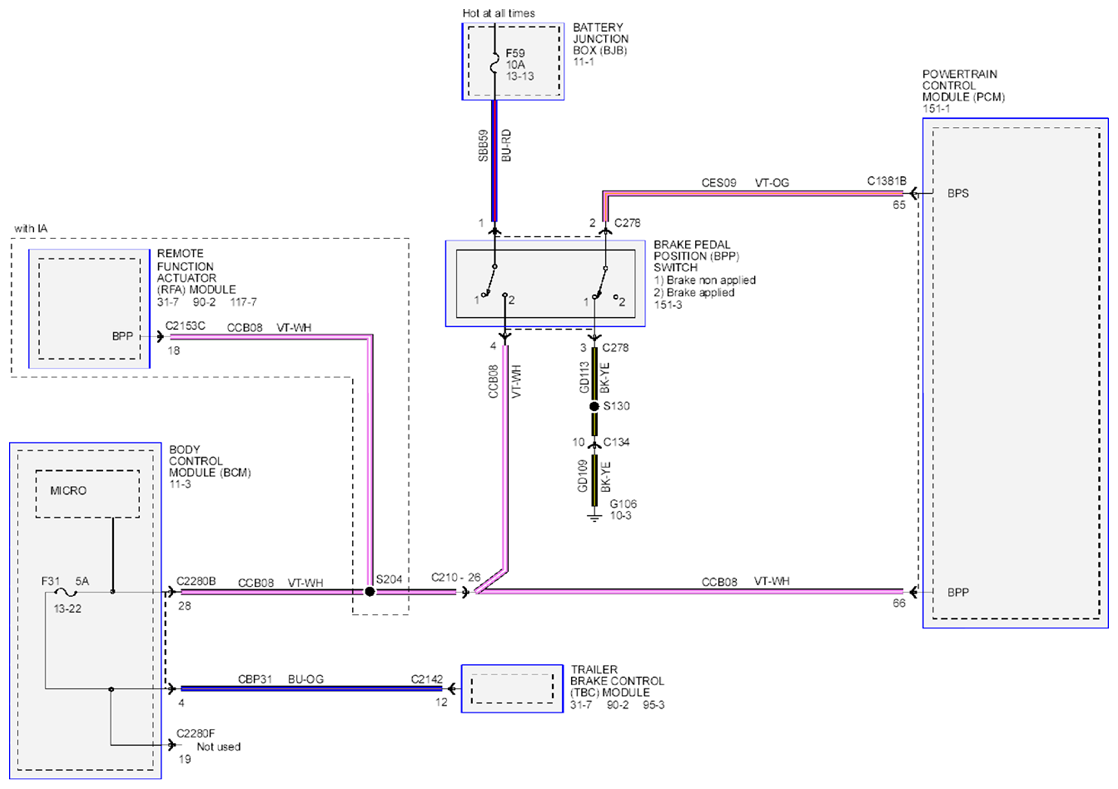

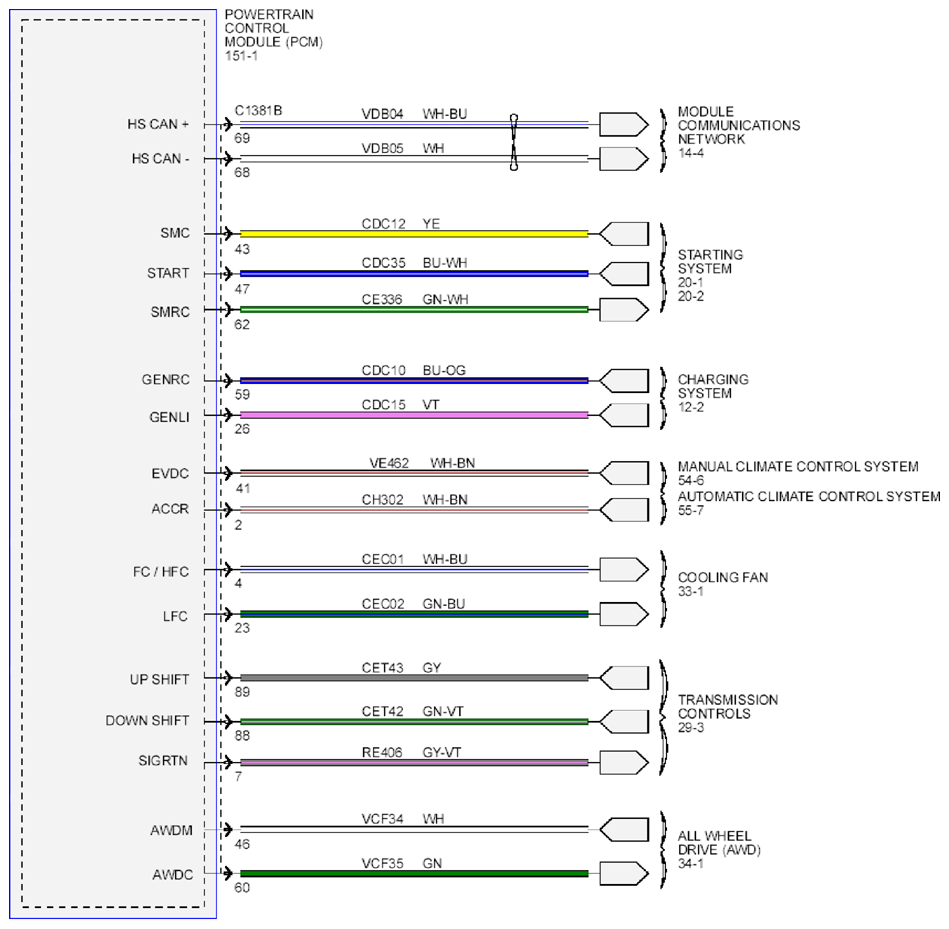

Fig 2: Electronic Engine Controls - 3.5L GTDI - Wiring Diagram (2 Of 15)

Courtesy of FORD MOTOR CO.

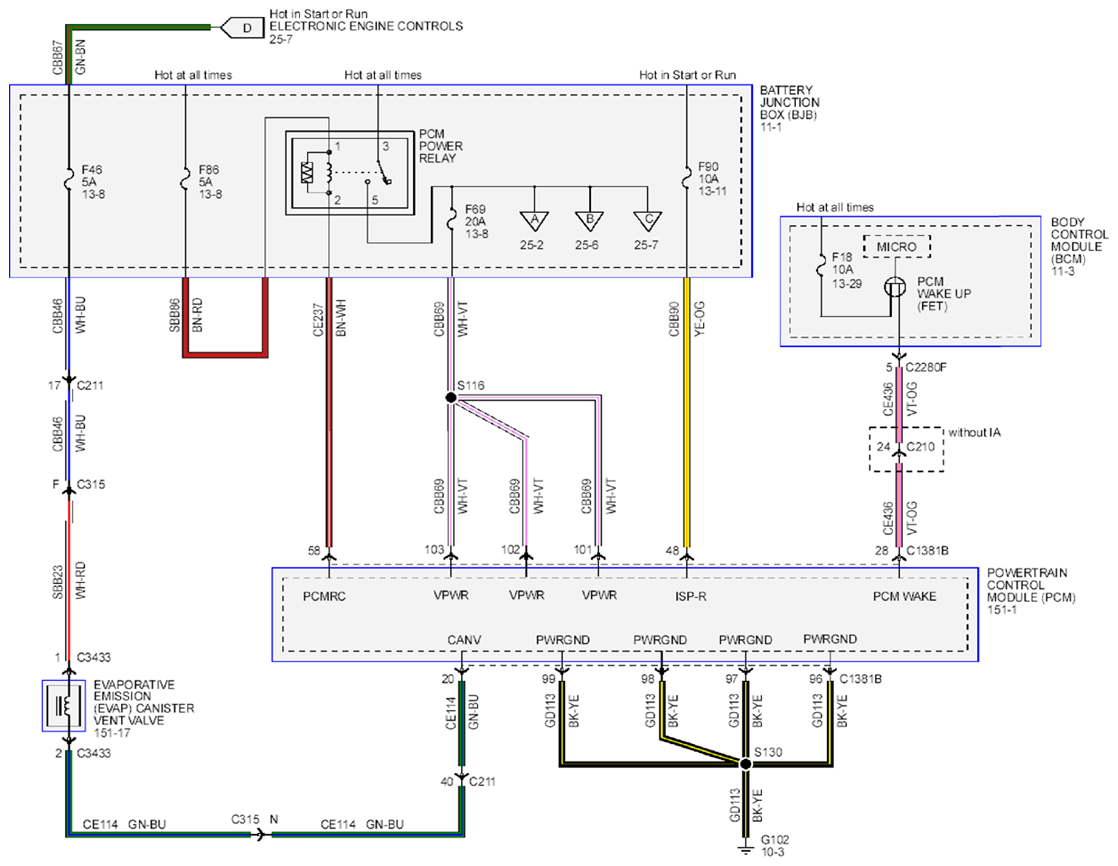

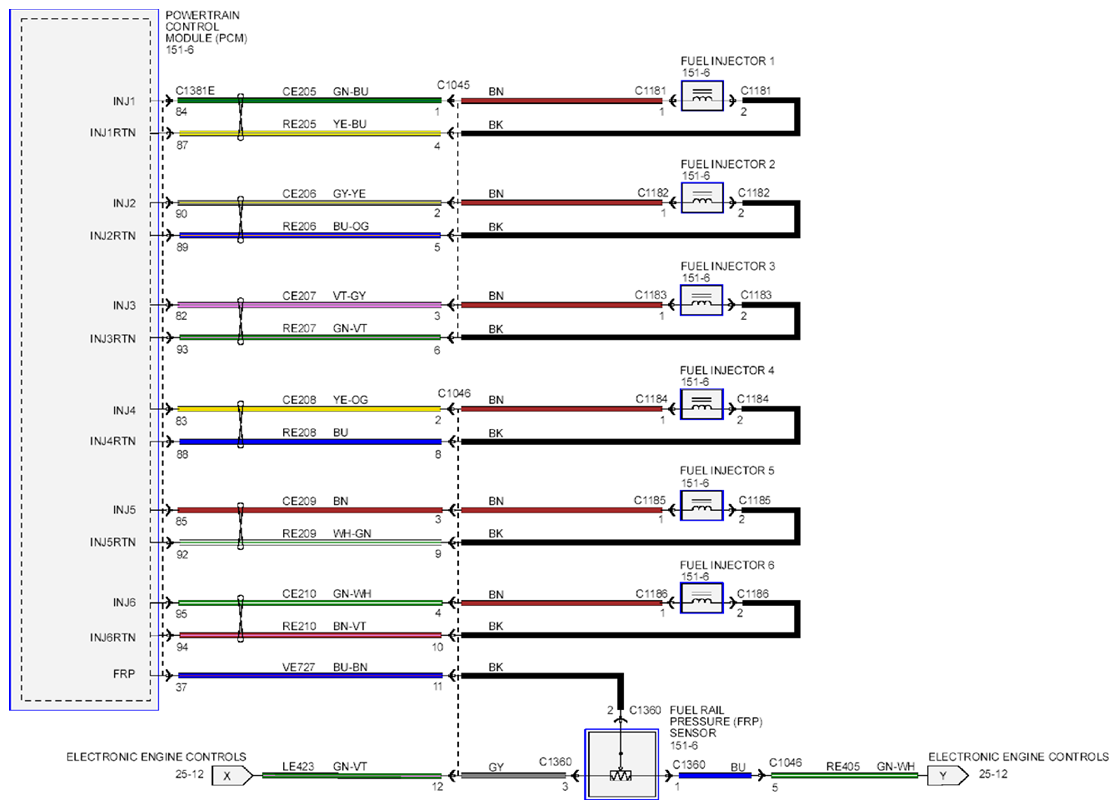

Fig 3: Electronic Engine Controls - 3.5L GTDI - Wiring Diagram (3 Of 15)

Courtesy of FORD MOTOR CO.

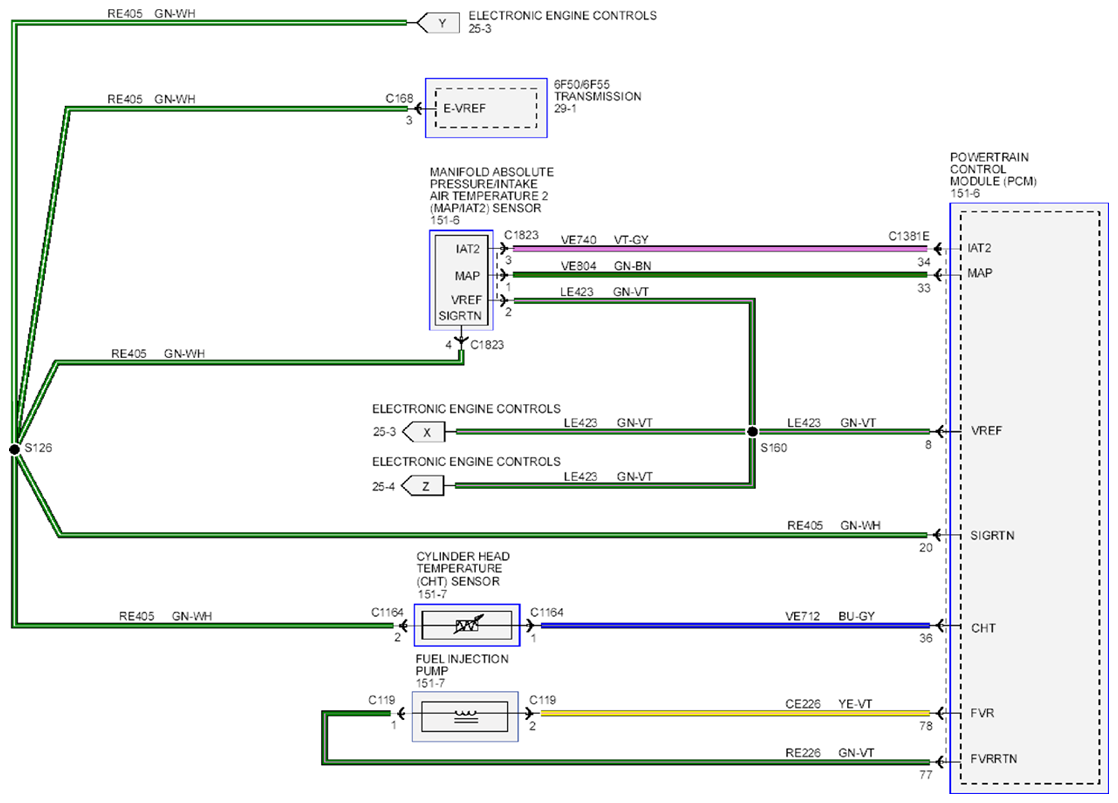

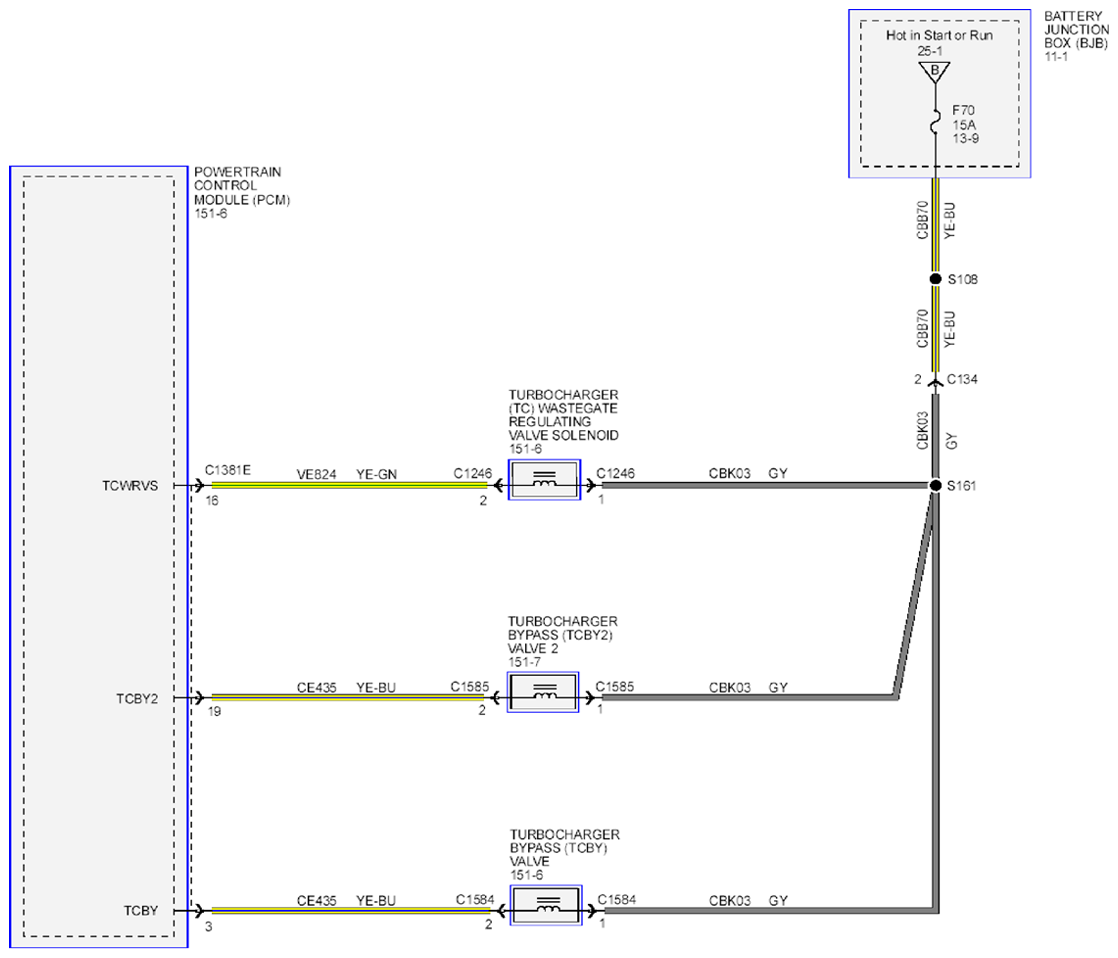

Fig 4: Electronic Engine Controls - 3.5L GTDI - Wiring Diagram (4 Of 15)

Courtesy of FORD MOTOR CO.

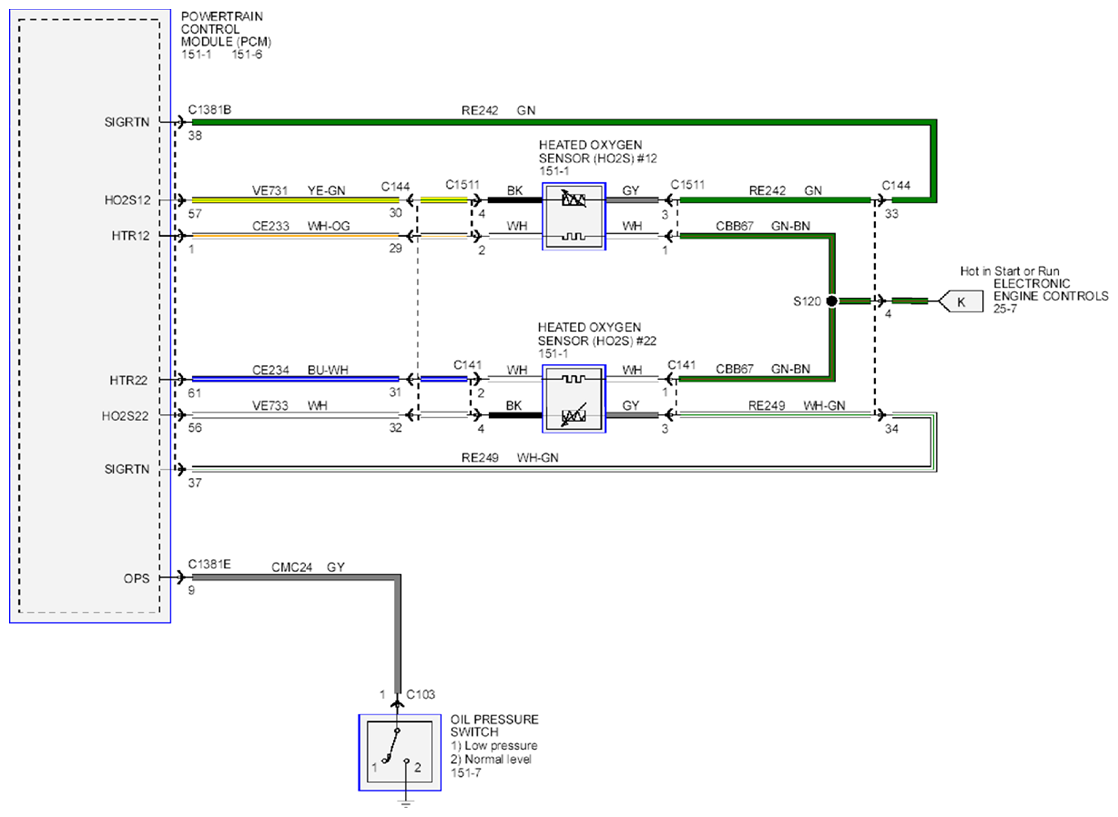

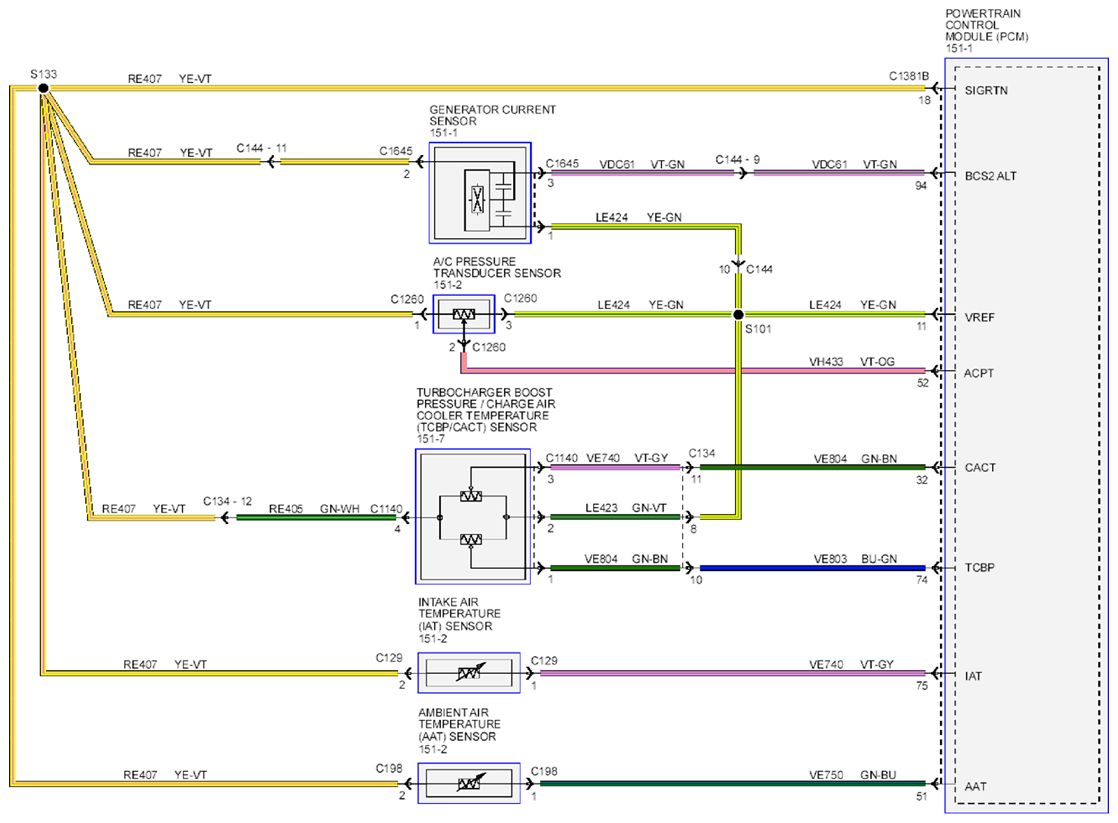

Fig 5: Electronic Engine Controls - 3.5L GTDI - Wiring Diagram (5 Of 15)

Courtesy of FORD MOTOR CO.

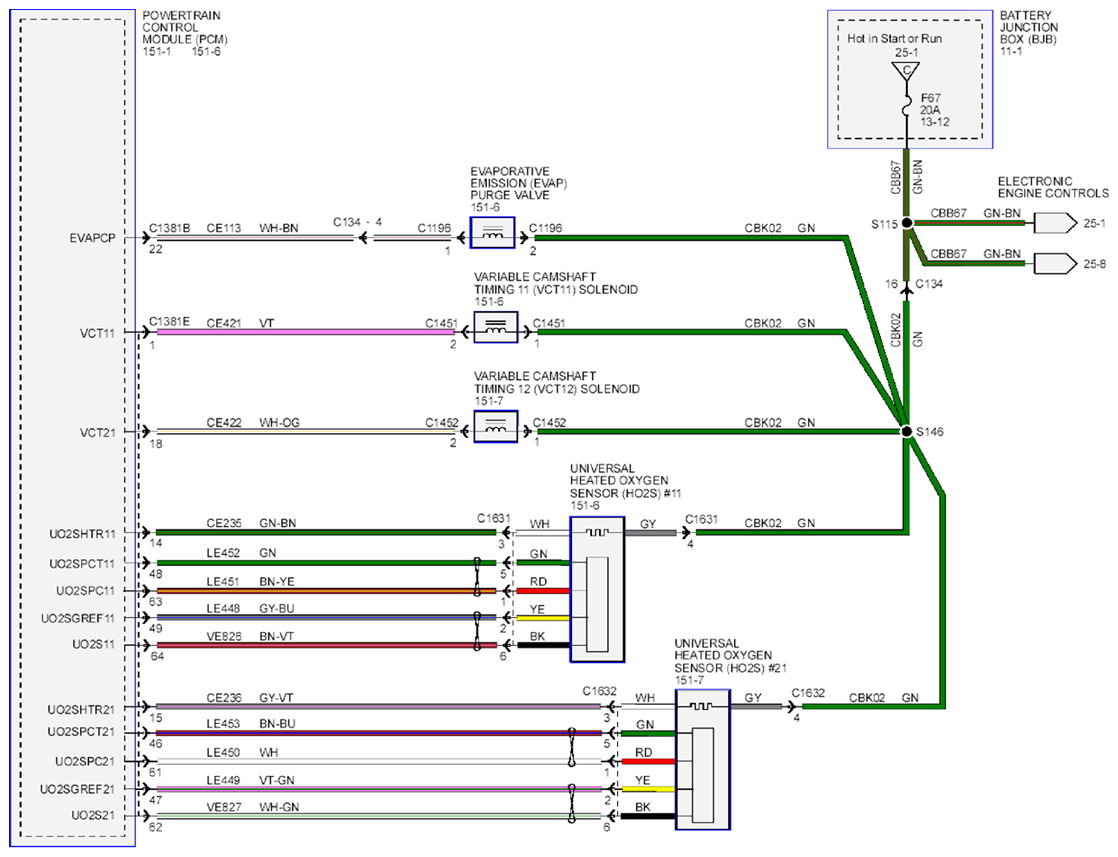

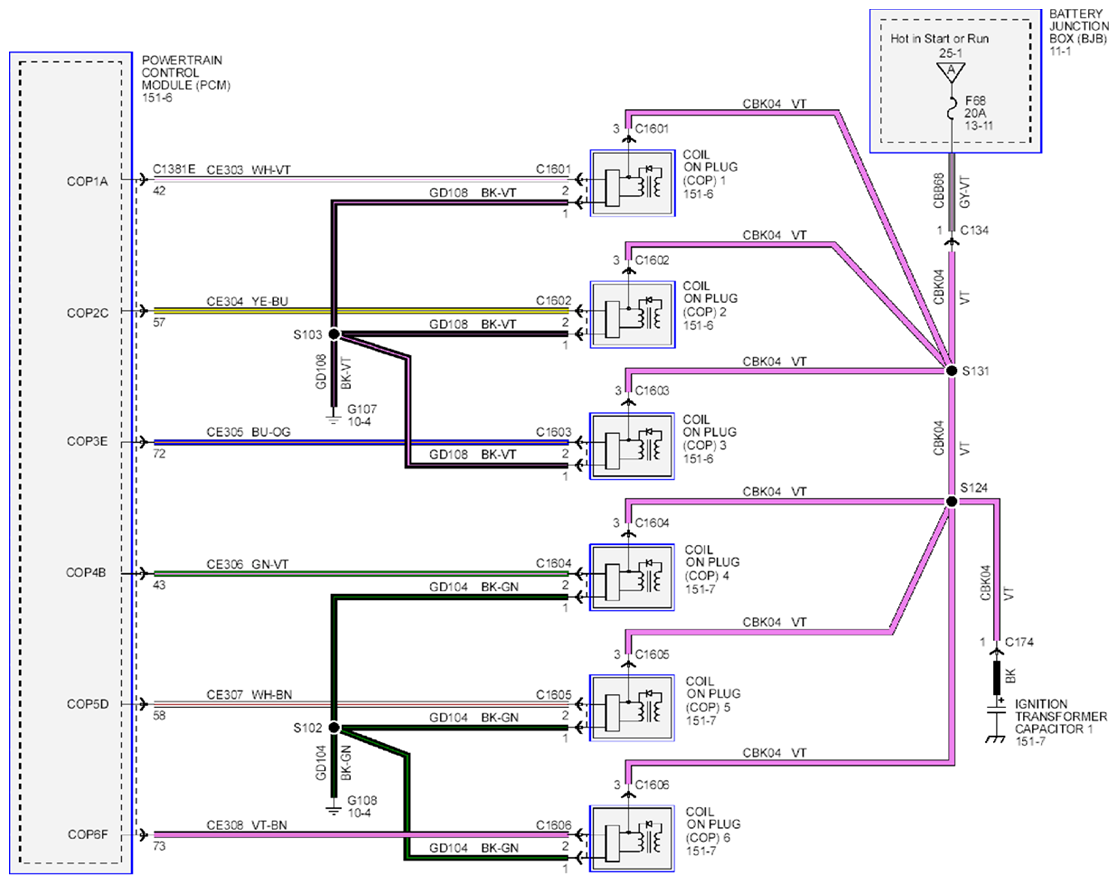

Fig 6: Electronic Engine Controls - 3.5L GTDI - Wiring Diagram (6 Of 15)

Courtesy of FORD MOTOR CO.

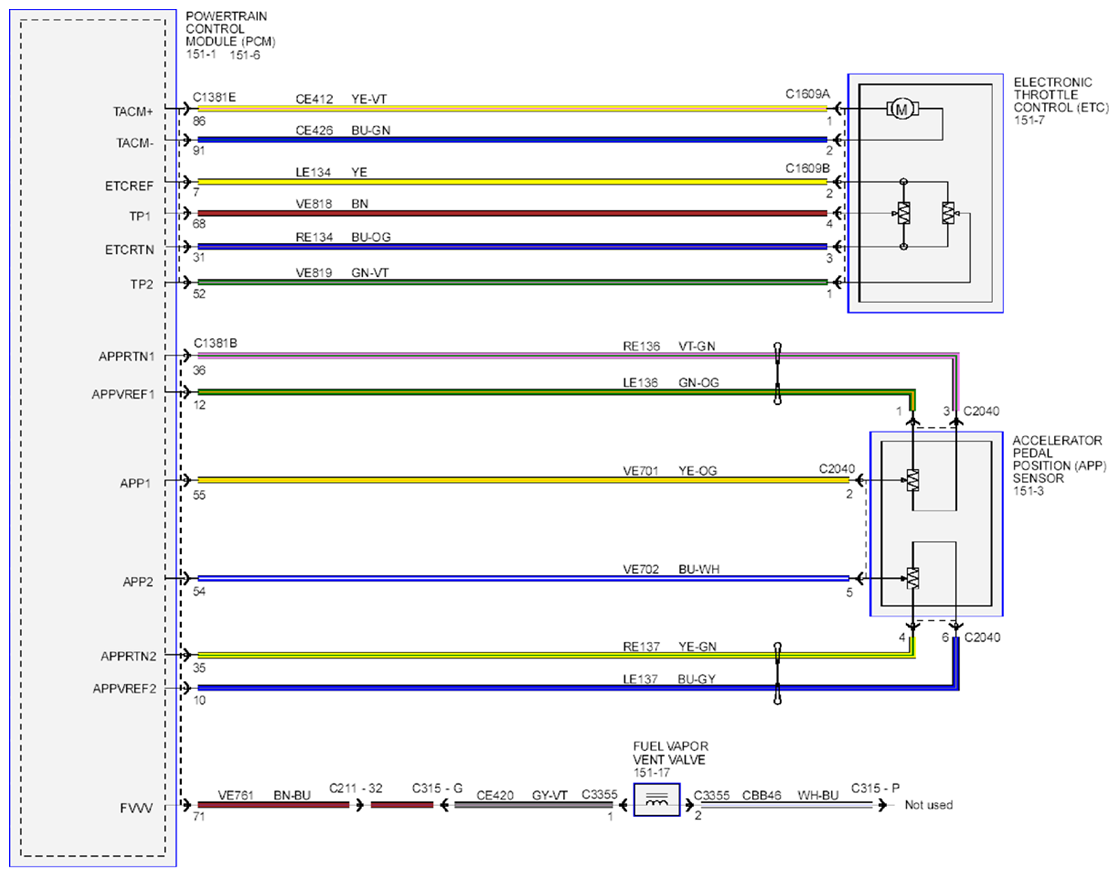

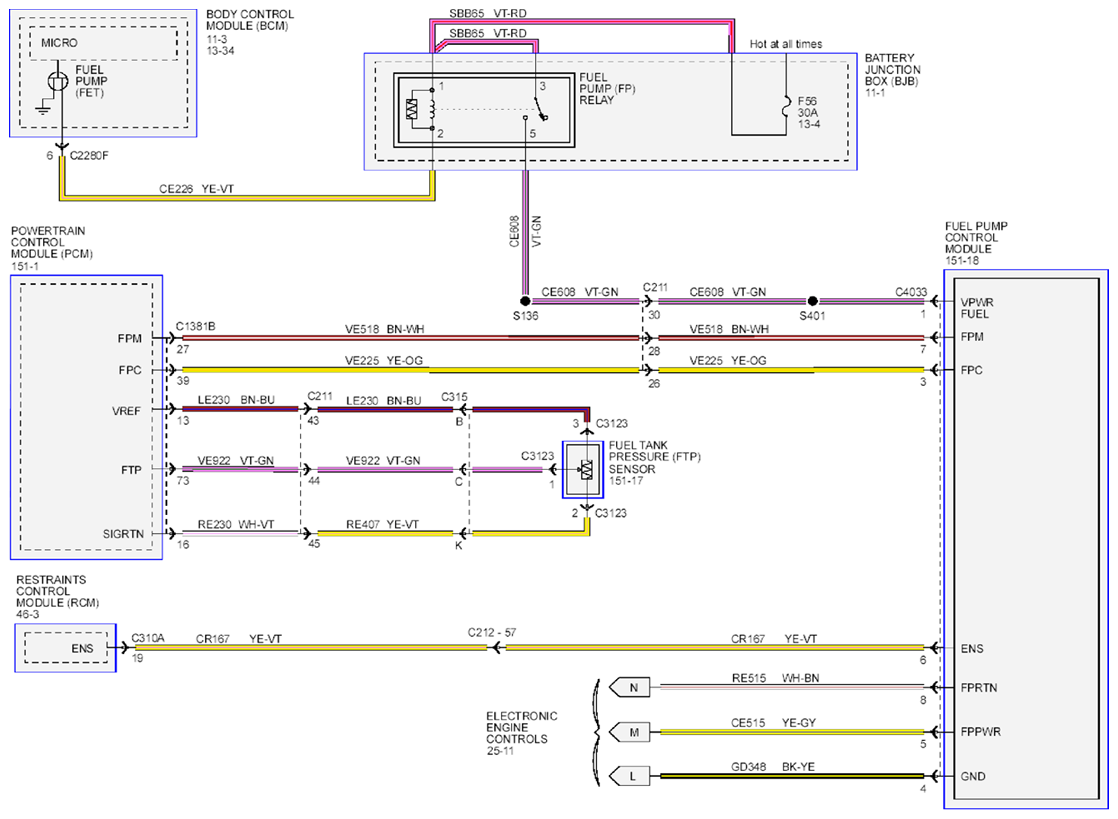

Fig 7: Electronic Engine Controls - 3.5L GTDI - Wiring Diagram (7 Of 15)

Courtesy of FORD MOTOR CO.

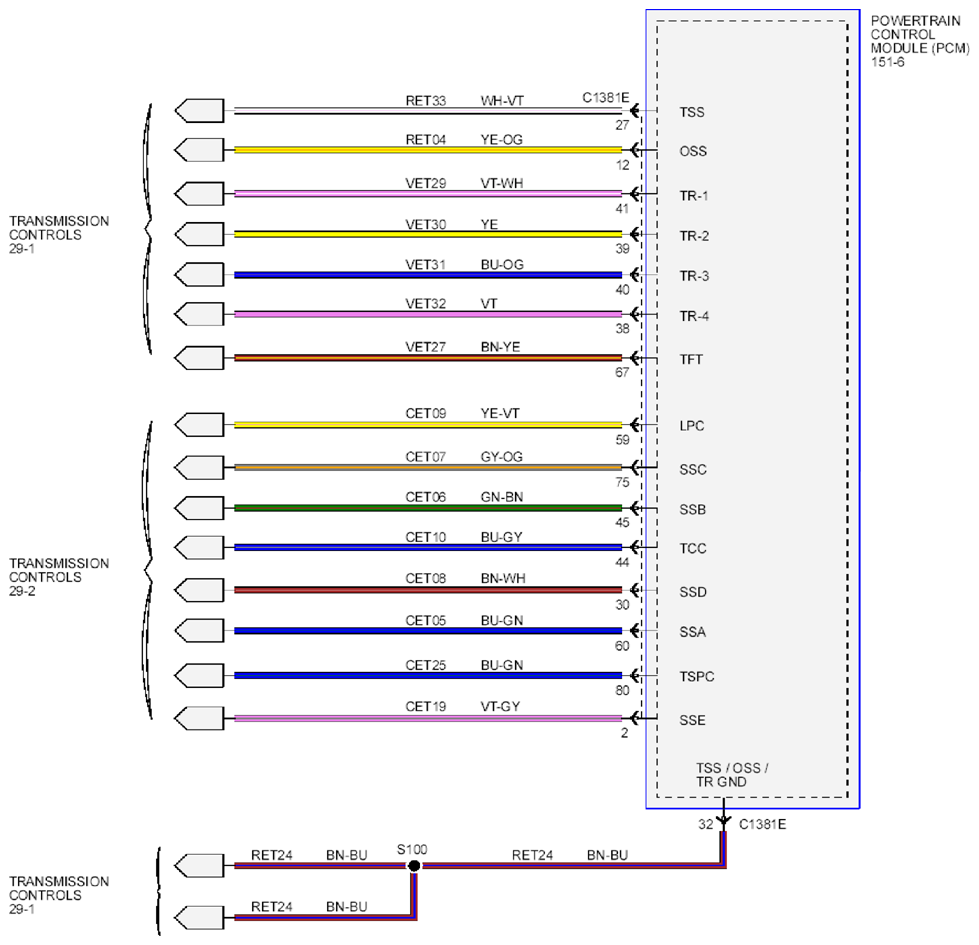

Fig 8: Electronic Engine Controls - 3.5L GTDI - Wiring Diagram (8 Of 15)

Courtesy of FORD MOTOR CO.

Fig 9: Electronic Engine Controls - 3.5L GTDI - Wiring Diagram (9 Of 15)

Courtesy of FORD MOTOR CO.

Fig 10: Electronic Engine Controls - 3.5L GTDI - Wiring Diagram (10 Of 15)

Courtesy of FORD MOTOR CO.

Fig 11: Electronic Engine Controls - 3.5L GTDI - Wiring Diagram (11 Of 15)

Courtesy of FORD MOTOR CO.

Fig 12: Electronic Engine Controls - 3.5L GTDI - Wiring Diagram (12 Of 15)

Courtesy of FORD MOTOR CO.

Fig 13: Electronic Engine Controls - 3.5L GTDI - Wiring Diagram (13 Of 15)

Courtesy of FORD MOTOR CO.

Fig 14: Electronic Engine Controls - 3.5L GTDI - Wiring Diagram (14 Of 15)

Courtesy of FORD MOTOR CO.

Fig 15: Electronic Engine Controls - 3.5L GTDI - Wiring Diagram (15 Of 15)

Courtesy of FORD MOTOR CO.
