With Adaptive Cruise

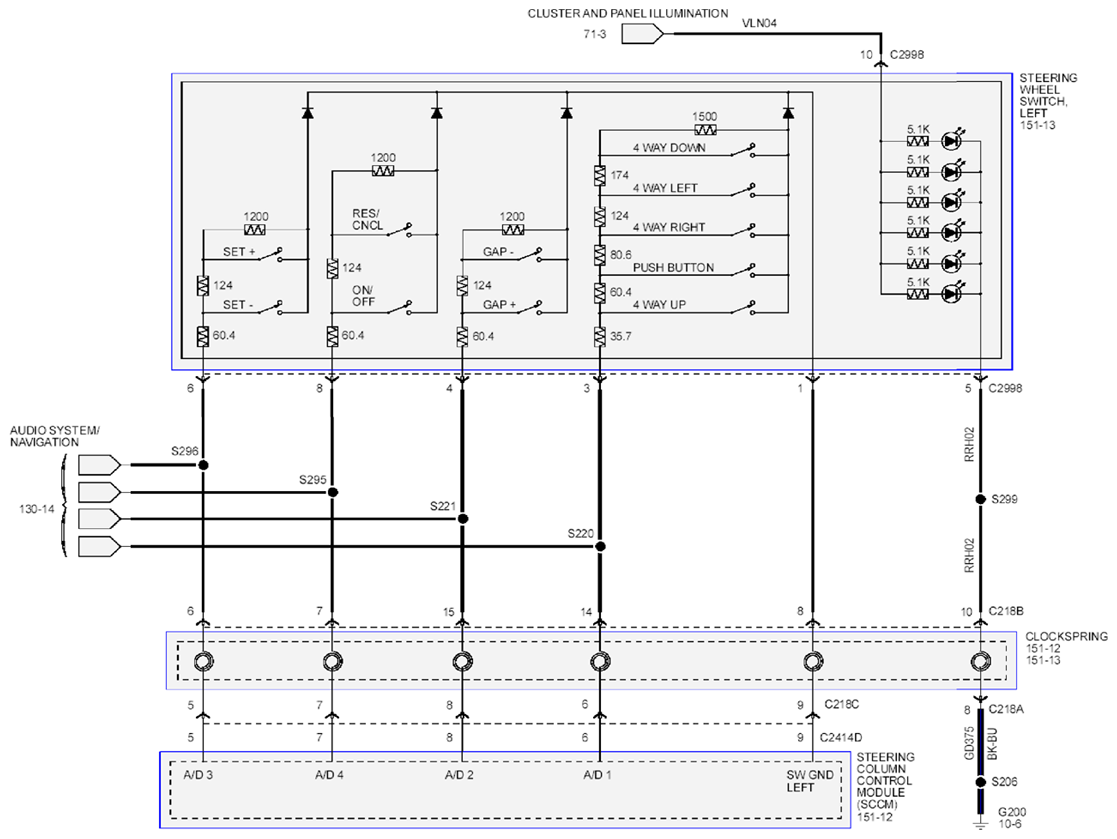

Fig 1: Cruise Control - Wiring Diagram (With Adaptive Cruise; 1 Of 2)
G09252406Courtesy of FORD MOTOR CO.

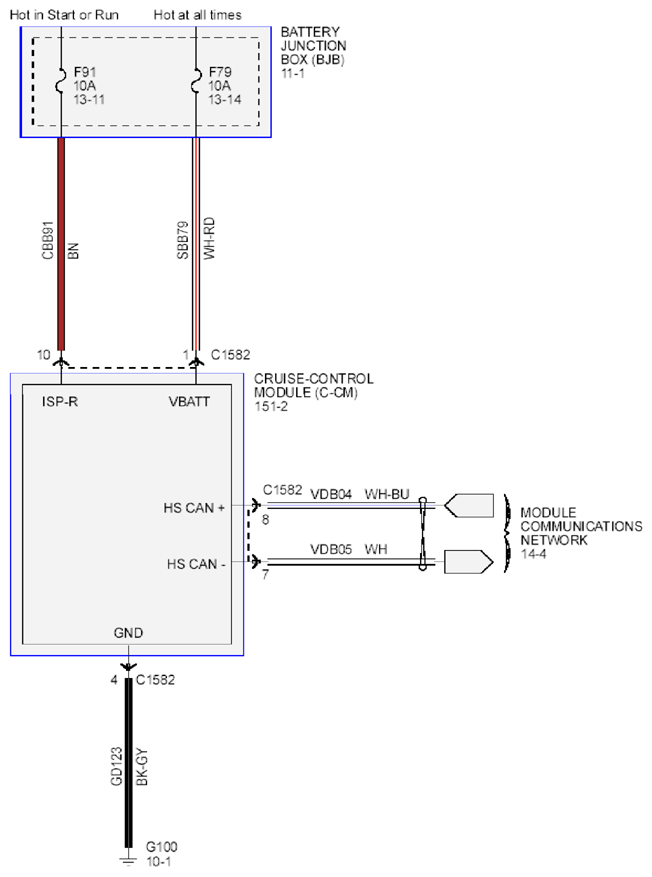

Fig 2: Cruise Control - Wiring Diagram (With Adaptive Cruise; 2 Of 2)
G09252407Courtesy of FORD MOTOR CO.
