All Wheel Drive (AWD)

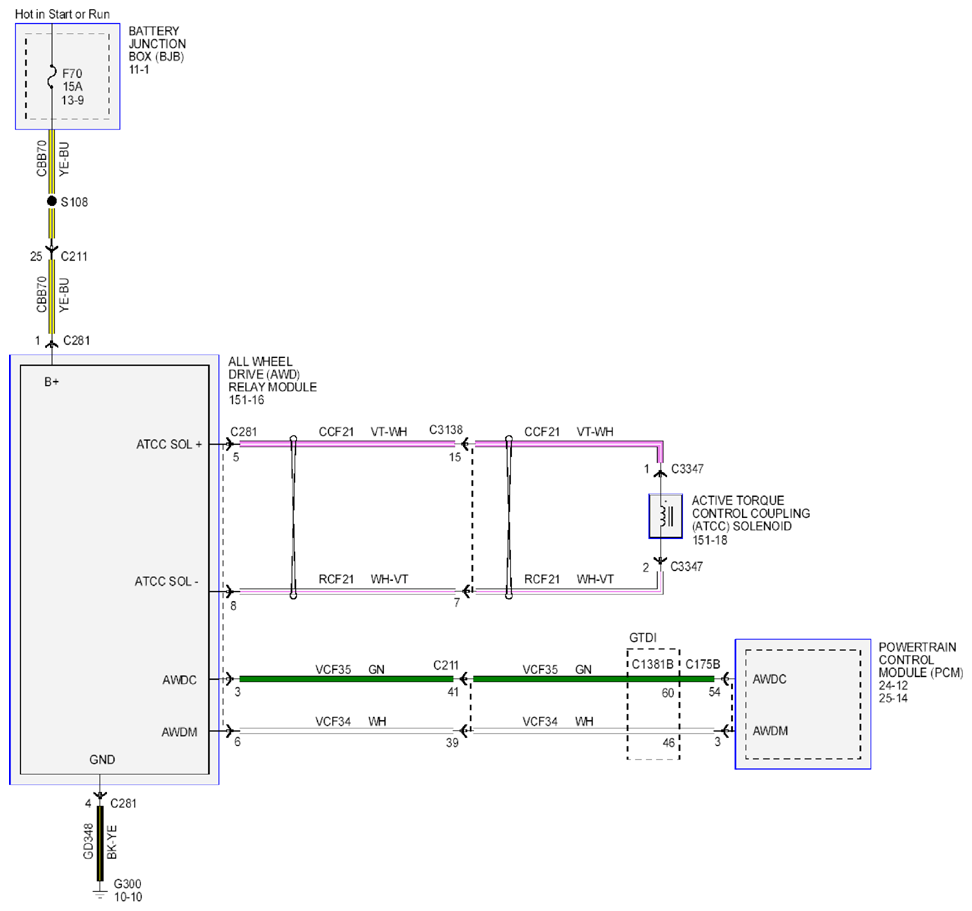

Fig 1: All Wheel Drive - Wiring Diagram

G09252412

Courtesy of FORD MOTOR CO.
