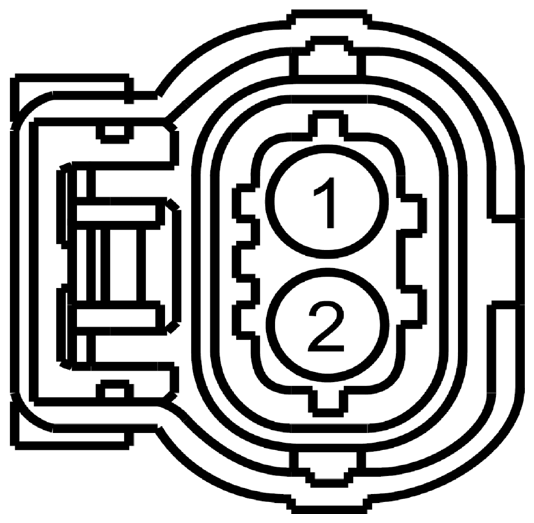

Turbocharger Bypass (TCBY2) Valve 2 Connector End View (C1585)

Fig 1: Identifying Turbocharger Bypass Valve 2 Connector (C1585)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK03 (GY)	18	FUSE - 3 OR CIRCUIT BREAKER (VPWR)
2	CE435 (YE-BU)	20	CTRL MOD. - POWERTRAIN # TURBO CONTROL VALVE (TCBY2)

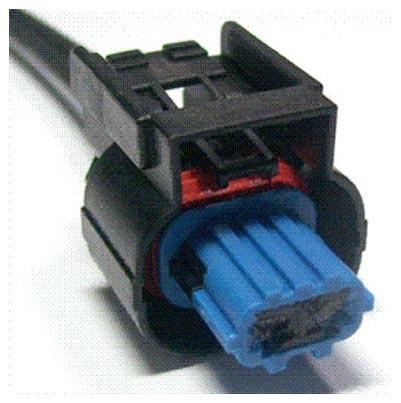

Available Pigtail Kits
Pigtail Kit Part Number WPT-1062	Service Part Number: AU2Z-14S411-UA  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Fuel Injector Sensor - Fuel Tank Temperature Solenoid - Super Charger Bypass
