Turbocharger (TC) WASTEGATE Regulating Valve Solenoid Connector End View (C1246)

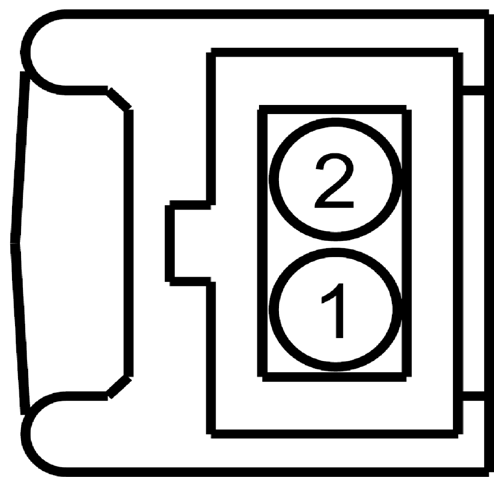

Fig 1: Identifying Turbocharger Wastegate Regulating Valve Solenoid Connector (C1246)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK03 (GY)	18	FUSE - 3 OR CIRCUIT BREAKER (VPWR)
2	VE824 (YE-GN)	20	SENSOR - BOOST PRESSURE (TCWRVS)

Available Pigtail Kits

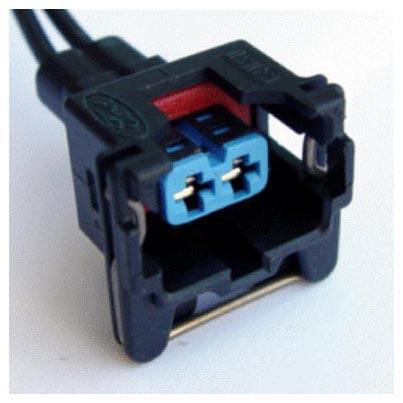

Pigtail Kit Part Number WPT-552	Service Part Number: 3U2Z-14S411-GLA  Gauge: 14  Pin material: Tin  Cavities: 2  Vehicle Uses Actuator - Turbocharger Waste Gate Fuel Injector Sensor - Cam Shaft Position Sensor - Crank Shaft Position

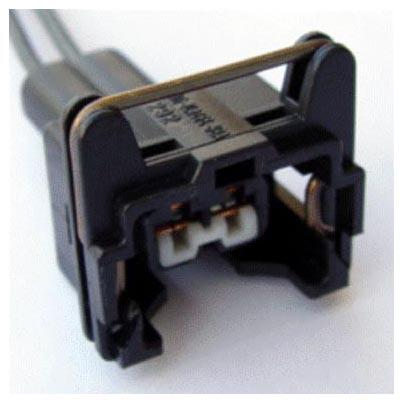

Pigtail Kit Part Number WPT-1054	Service Part Number: 3U2Z-14S411-GLB  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Actuator - Turbocharger Waste Gate Fuel Injector Sensor - Cam Shaft Position Sensor - Crank Shaft Position Valve - Cold Start

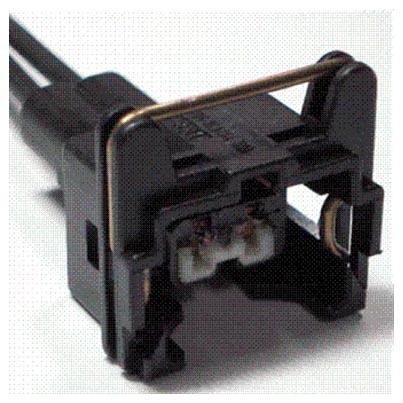

Pigtail Kit Part Number WPT-551	Service Part Number: 3U2Z-14S411-LPA  Gauge: 18  Pin material: Tin  Cavities: 2  Vehicle Uses Actuator - Turbocharger Waste Gate Lamp - Front Turn Sensor - Cam Shaft Position Sensor - Crank Shaft Position
