Lumbar Motor, Passenger Seat Connector End View (C3216)

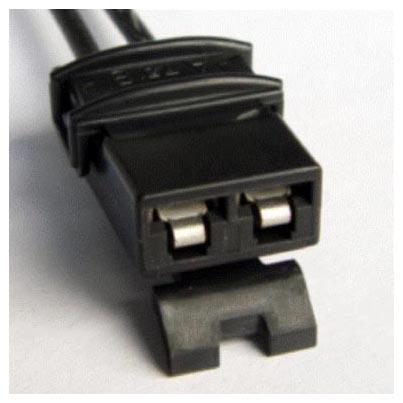

Fig 1: Identifying Lumbar Motor, Passenger Seat Connector (C3216)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
A	CPS19 (GY-VT)	18	SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE
B	CPS18 (BN-GN)	18	SWITCH - DRIVER LUMBAR PUMP

Available Pigtail Kits
Pigtail Kit Part Number WPT-687	Service Part Number: 3U2Z-14S411-ZAA  Gauge: 14  Pin material: Tin  Cavities: 2  Vehicle Uses Motor - Air Suspension Compressor Switch - Dimmer (Instrument Panel)
