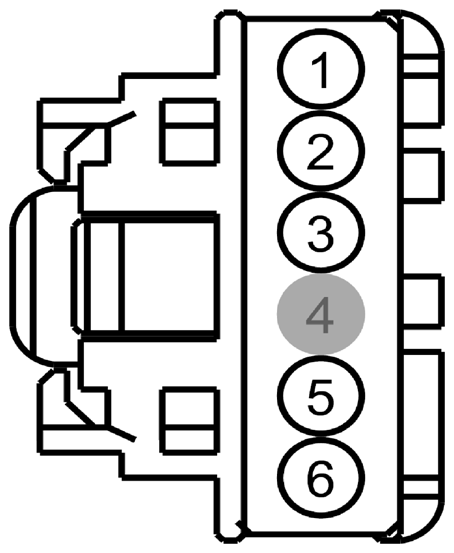

Air Inlet Mode Door Actuator Connector End View (C289)

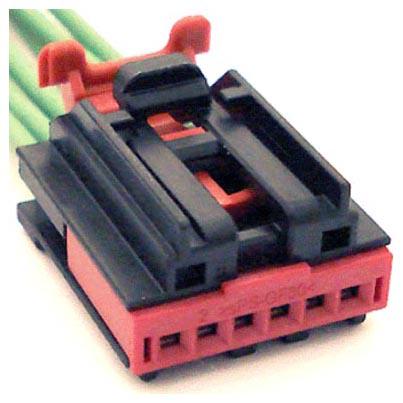

Fig 1: Identifying Air Inlet Mode Door Actuator Connector (C289)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LH111 (BN)	26	CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS
2	VH438 (GN)	26	SENSOR - DOOR POSITION RECIRC.
3	RH111 (GY-BU)	22	CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS
4	*	*	Not Used
5	CH207 (BU)	26	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1/CLOSE (IF PLUS)
6	CH208 (OG)	26	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2/OPEN (IF PLUS)

Available Pigtail Kits
Pigtail Kit Part Number WPT-1049	Service Part Number: 9U2Z-14S411-UA  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Actuator - Door Lock - RH - Front Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Inlet Door Switch - Heated Back Light (Rear Defrost) Switch - Heated Seat - LH - Rear Switch - Heated Seat - RH - Front Switch - Heated Seat - RH - Rear
