Right Rear Door Harness
Right Rear Door Harness

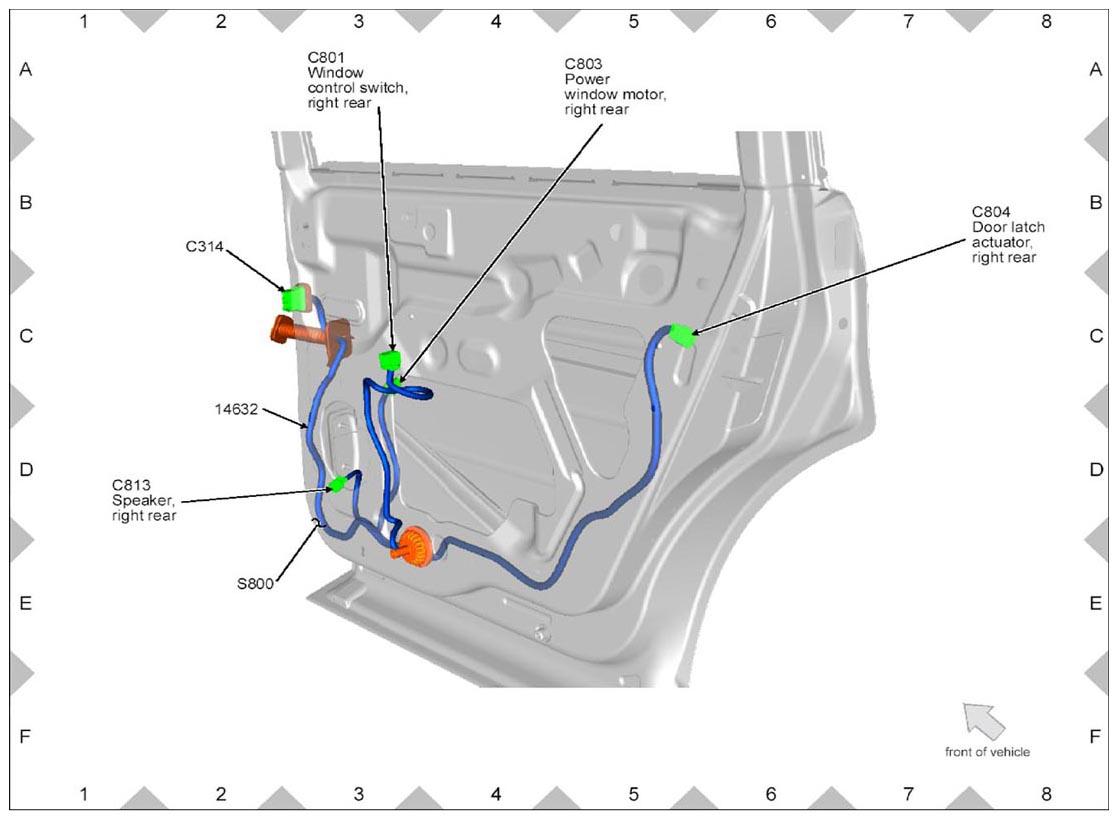

Fig 1: Right Rear Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
