Passenger Seat Harness
Passenger Seat Harness

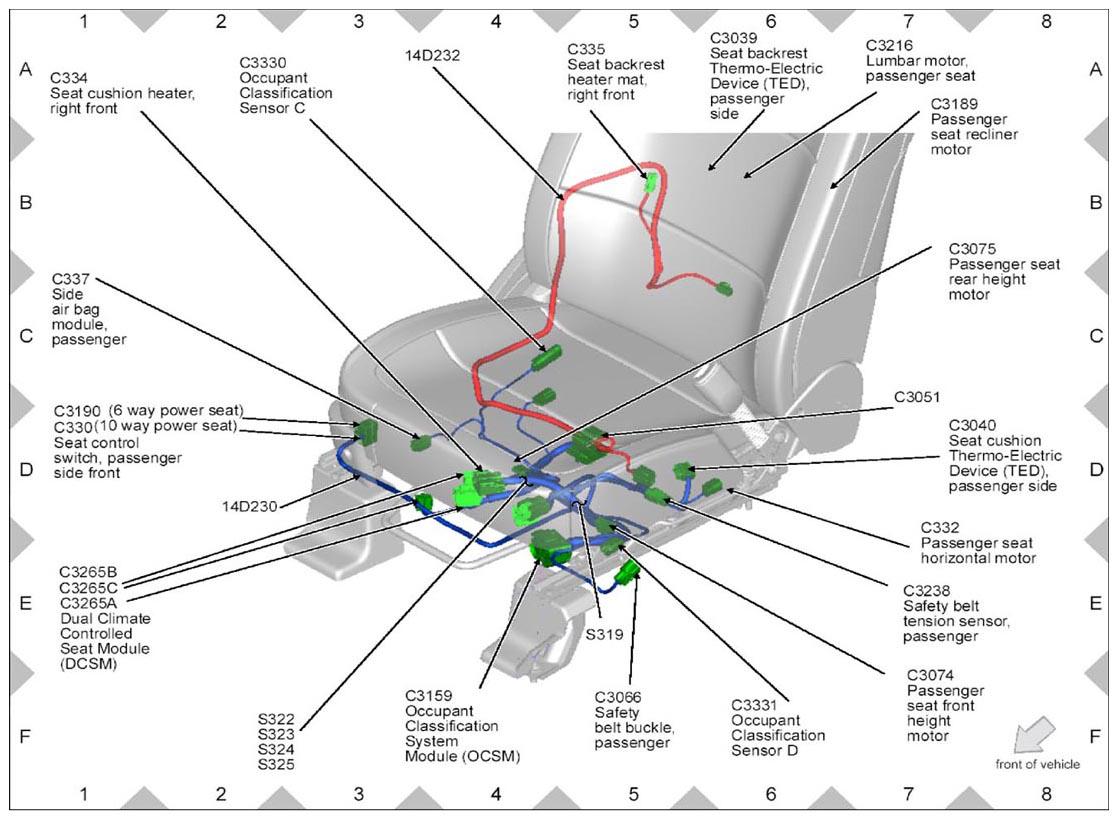

Fig 1: Passenger Seat Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
