Component Location Views
>>
Passenger Door Harness
Passenger Door Harness

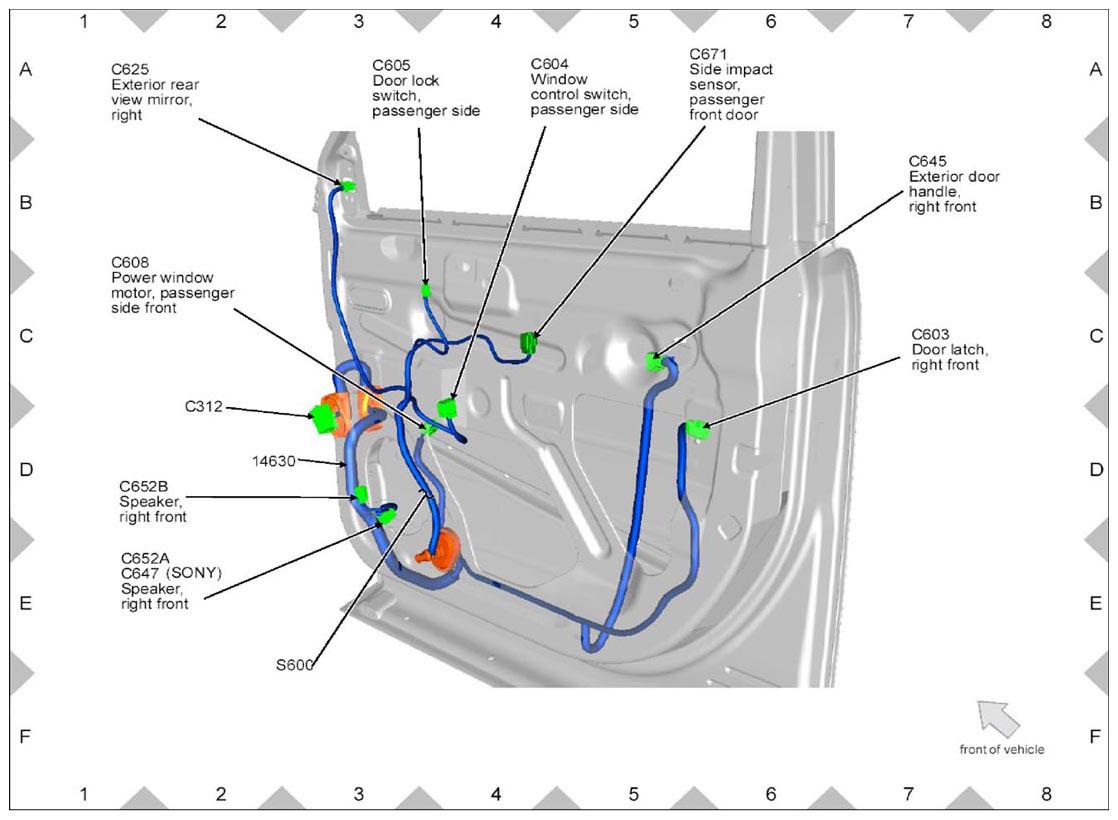

Fig 1: Passenger Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
