6-Way Power Seat - Passenger

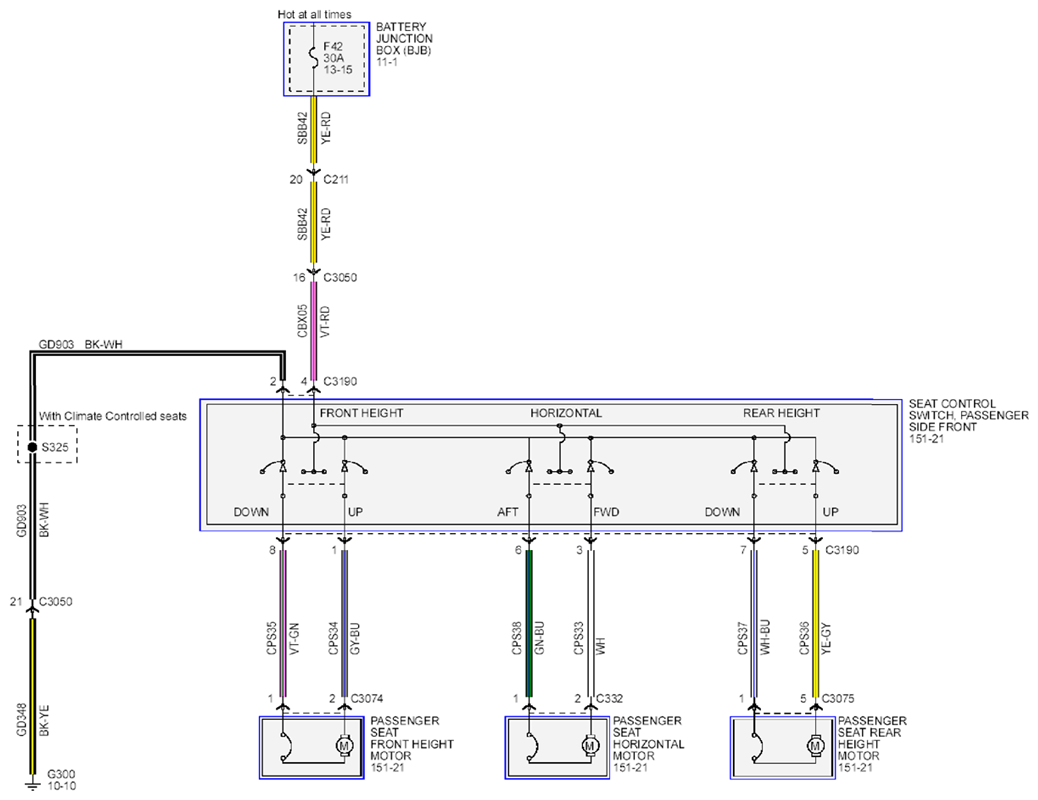

Fig 1: Passenger 6-Way Power Seats - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
