10-Way Power Seat - Passenger

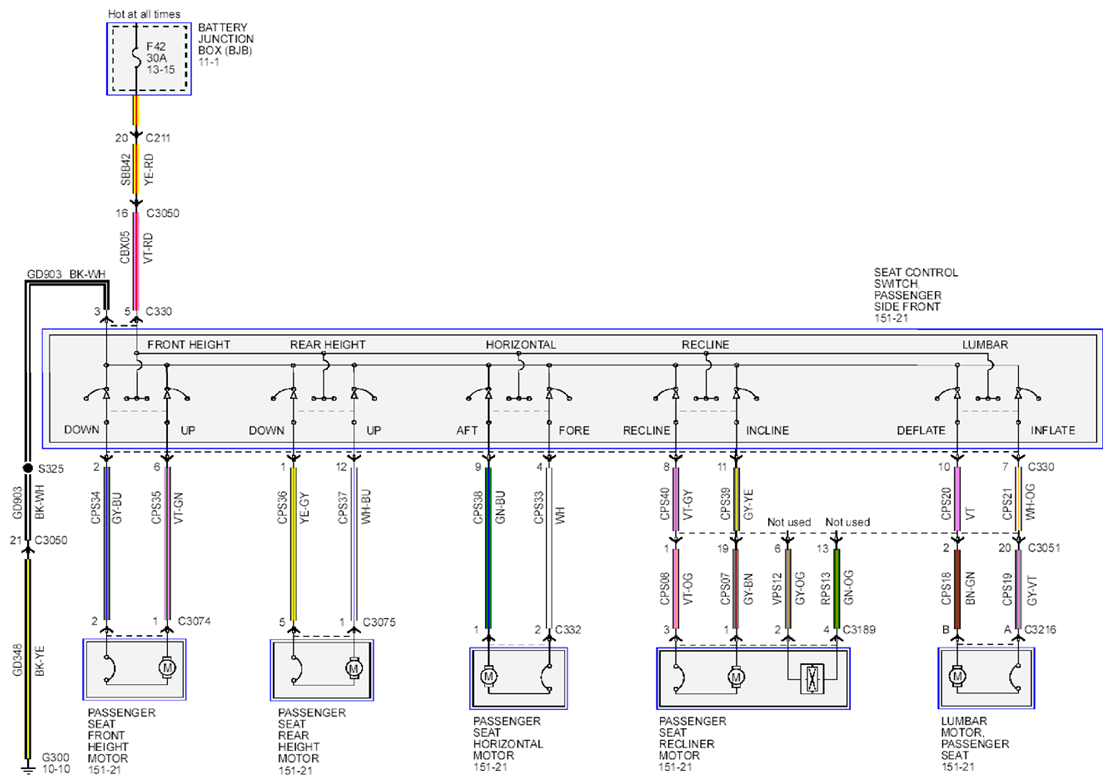

Fig 1: Passenger Seats 10-Way Power - Wiring Diagram

G09252525

Courtesy of FORD MOTOR CO.
