F33, F34, F35, F36, F37, F41, F42

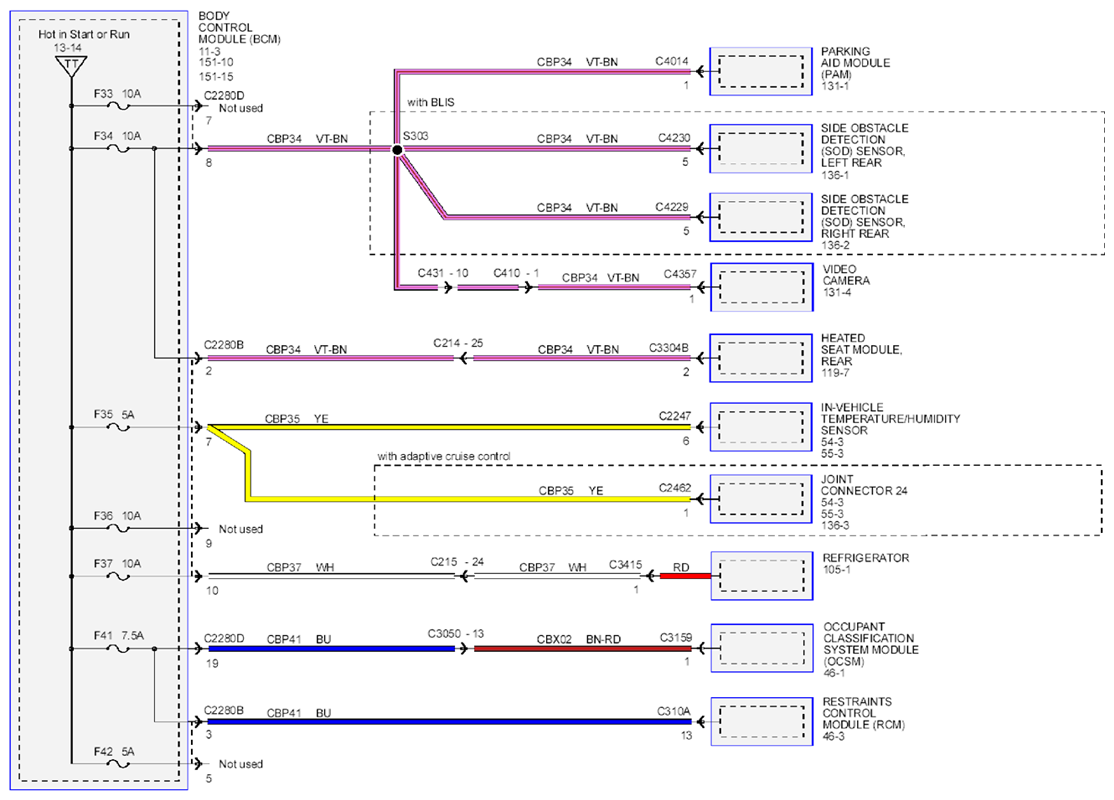

Fig 1: Power Distribution Wiring Diagram - F33, F34, F35, F36, F37, F41, F42 (1 Of 5)
G09252355Courtesy of FORD MOTOR CO.

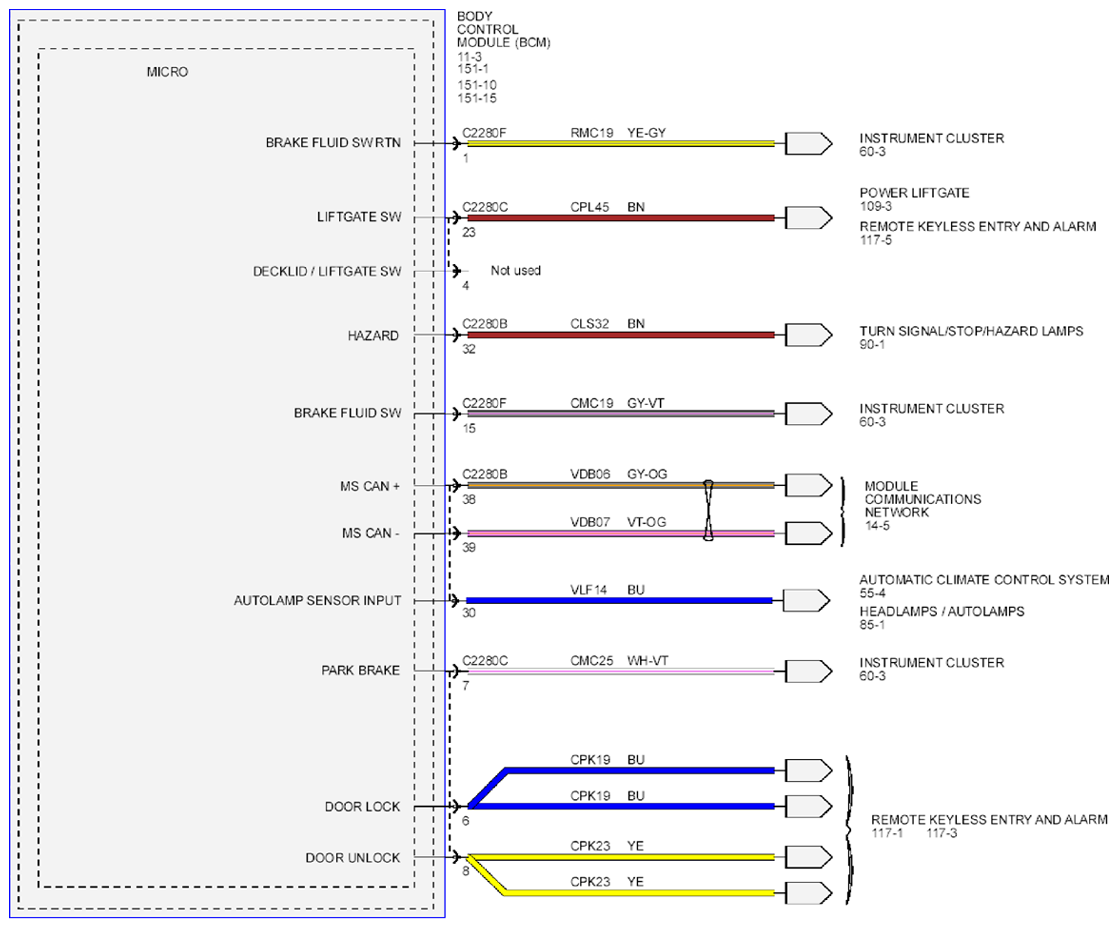

Fig 2: Power Distribution Wiring Diagram - F33, F34, F35, F36, F37, F41, F42 (2 Of 5)
G09252356Courtesy of FORD MOTOR CO.

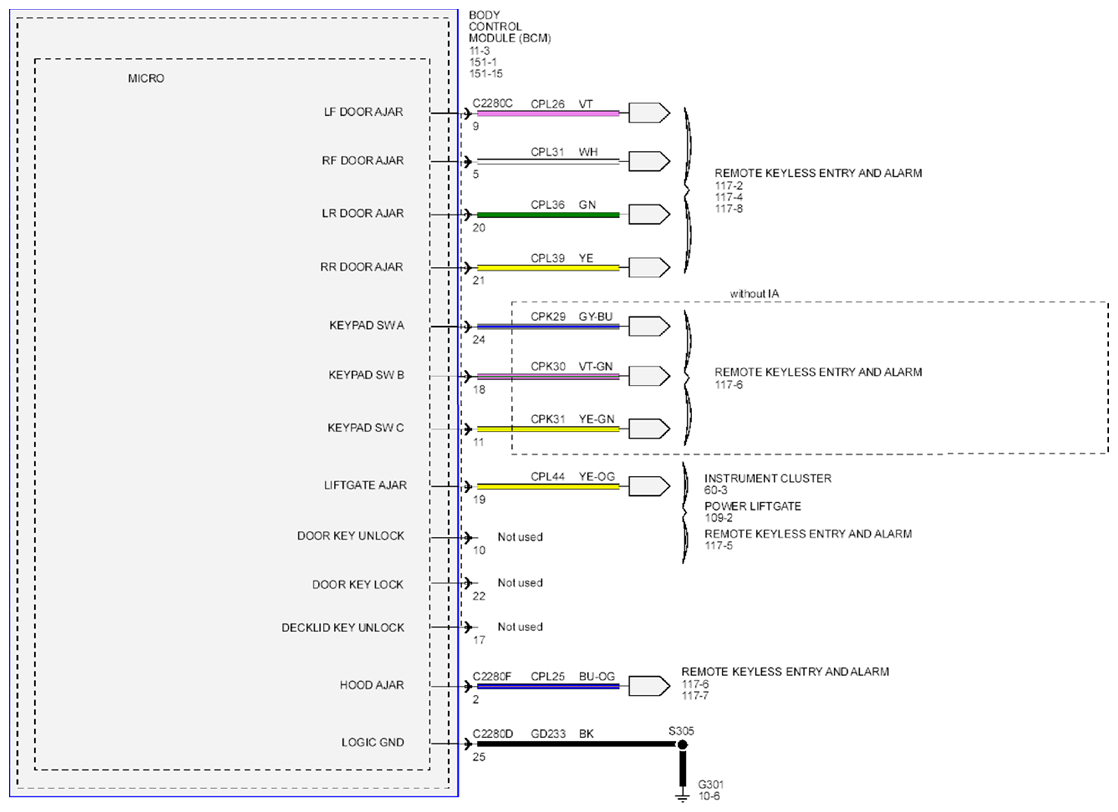

Fig 3: Power Distribution Wiring Diagram - F33, F34, F35, F36, F37, F41, F42 (3 Of 5)
G09252357Courtesy of FORD MOTOR CO.

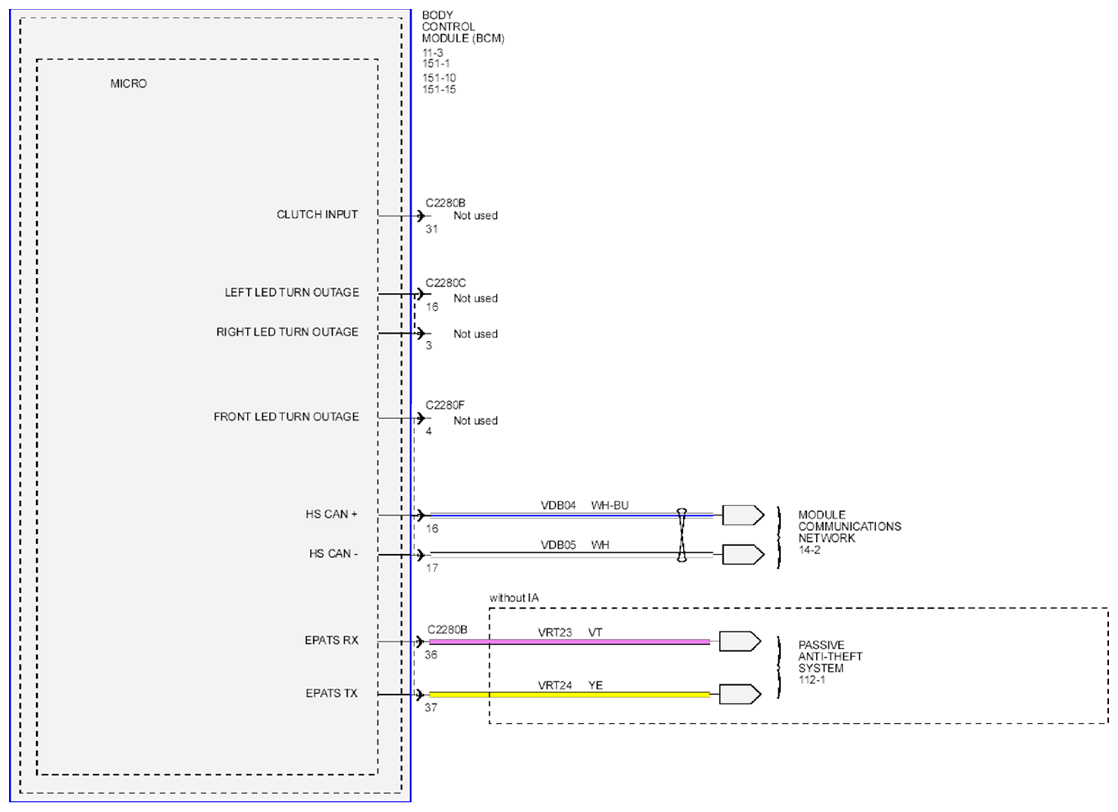

Fig 4: Power Distribution Wiring Diagram - F33, F34, F35, F36, F37, F41, F42 (4 Of 5)
G09252358Courtesy of FORD MOTOR CO.

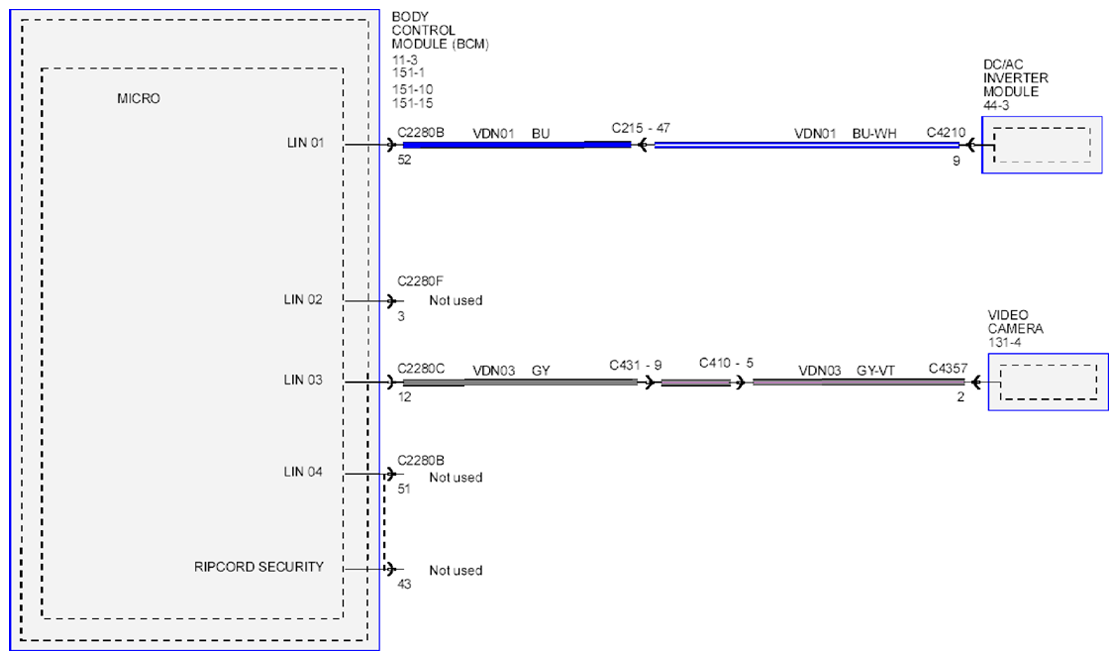

Fig 5: Power Distribution Wiring Diagram - F33, F34, F35, F36, F37, F41, F42 (5 Of 5)
G09252359Courtesy of FORD MOTOR CO.
