Horn Cigar Lighter

Fig 1: Horn Cigar Lighter - Wiring Diagram (1 Of 3)
G09252421Courtesy of FORD MOTOR CO.

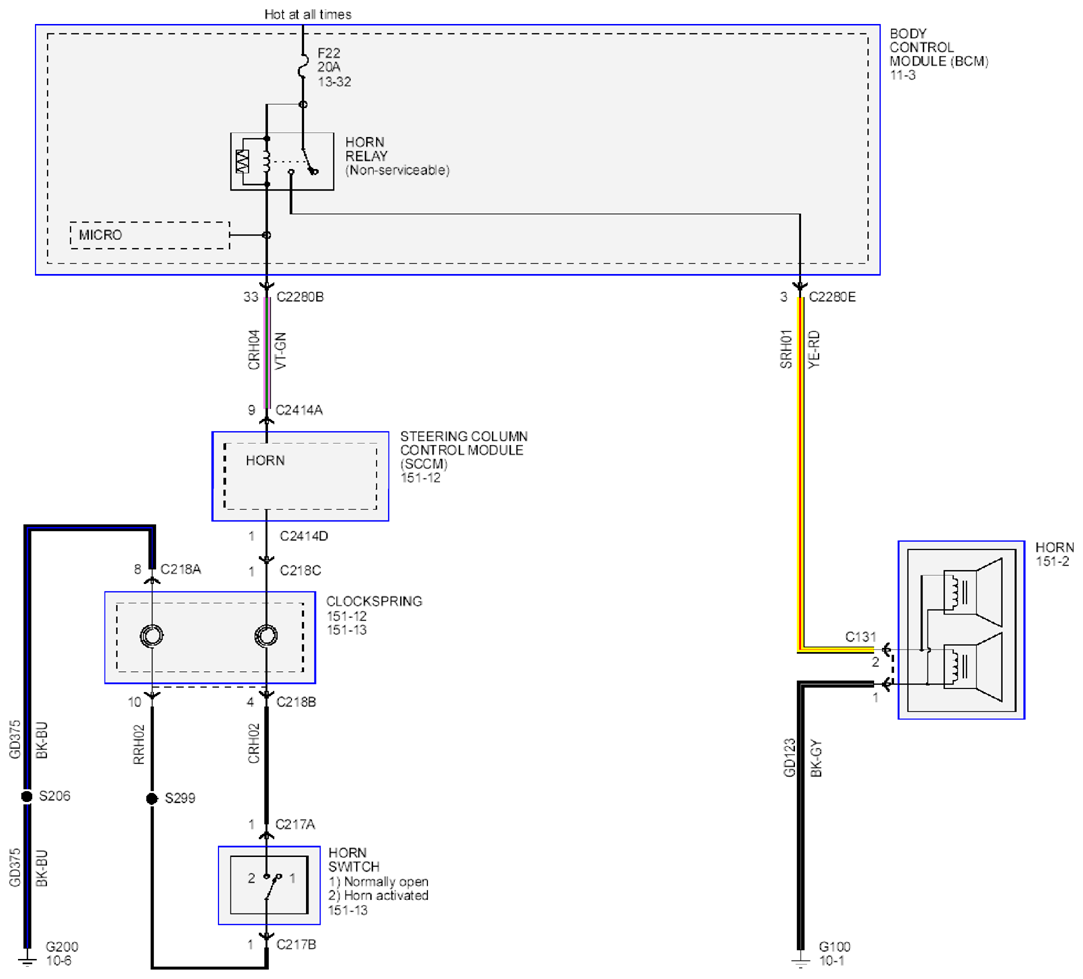

Fig 2: Horn Cigar Lighter - Wiring Diagram (2 Of 3)
G09252422Courtesy of FORD MOTOR CO.
Fig 3: Horn Cigar Lighter - Wiring Diagram (3 Of 3)
G09252423Courtesy of FORD MOTOR CO.
