With Rear Heated Seats

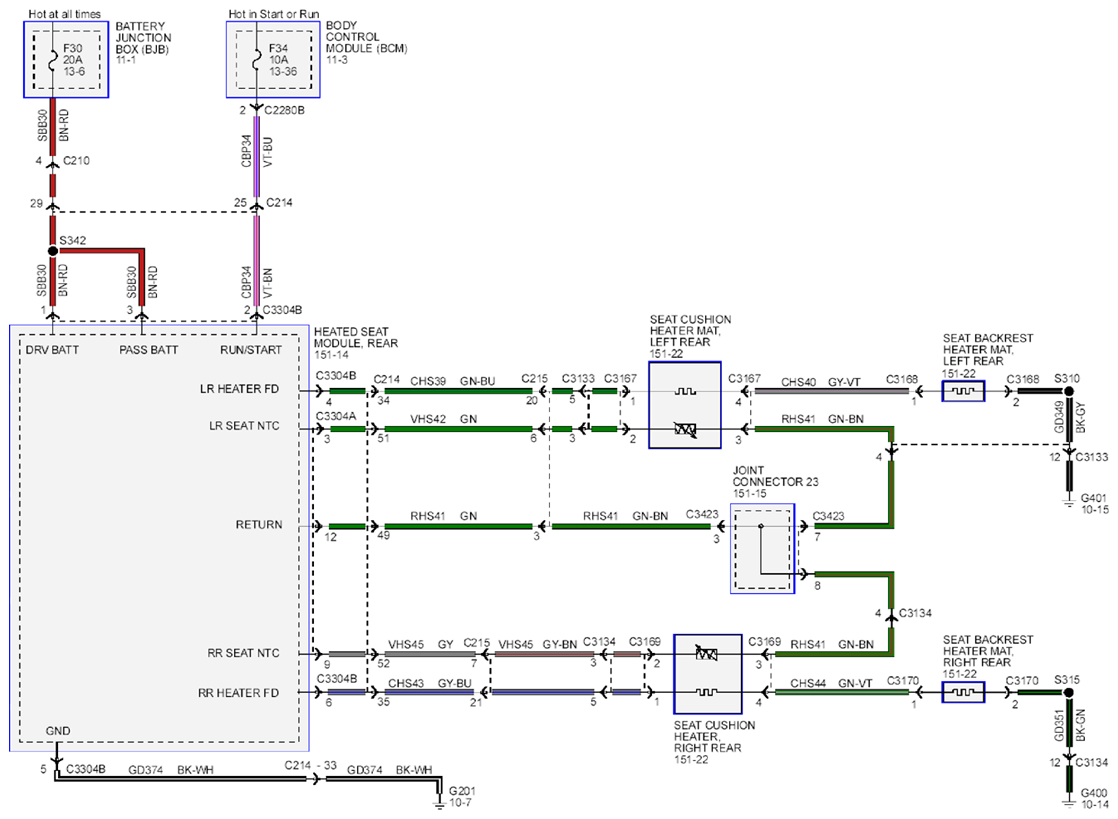

Fig 1: Climate Controlled Seats - With Rear Heated Seats - Wiring Diagram (1 Of 2)
G09252520Courtesy of FORD MOTOR CO.

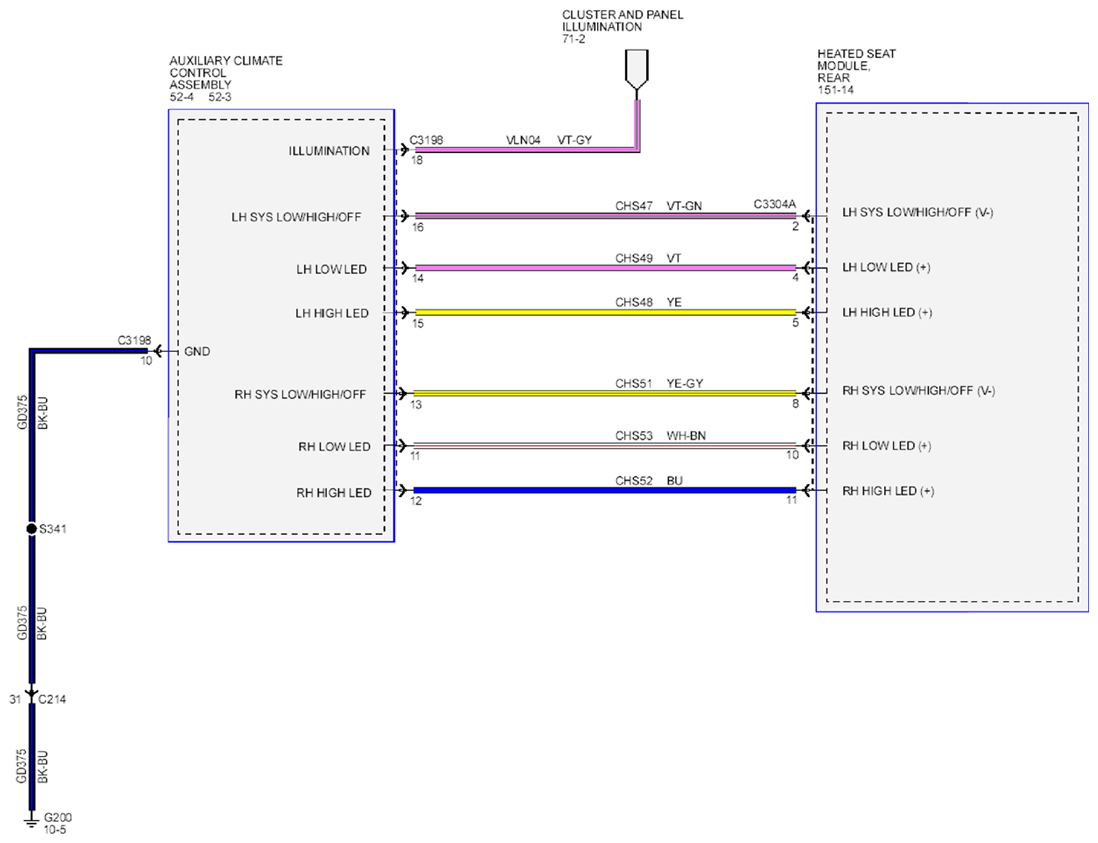

Fig 2: Climate Controlled Seats - With Rear Heated Seats - Wiring Diagram (2 Of 2)
G09252521Courtesy of FORD MOTOR CO.
