OEM Ground Distribution
>>
Grounds
>>
G102, G103, G104, G106, G107
G102, G103, G104, G106, G107

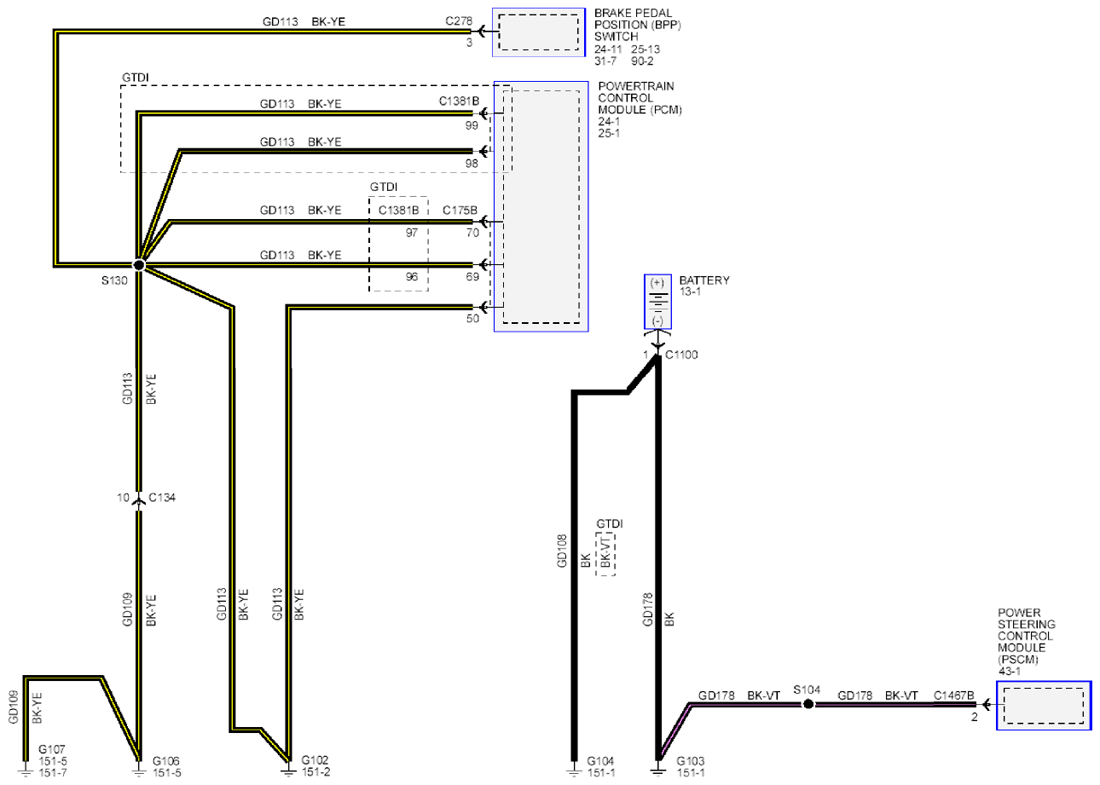

Fig 1: Grounds - Wiring Diagram - G102, G103, G104, G106, G107
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
