Variable Camshaft Timing 21 (VCT21) Solenoid Connector End View (C1610)

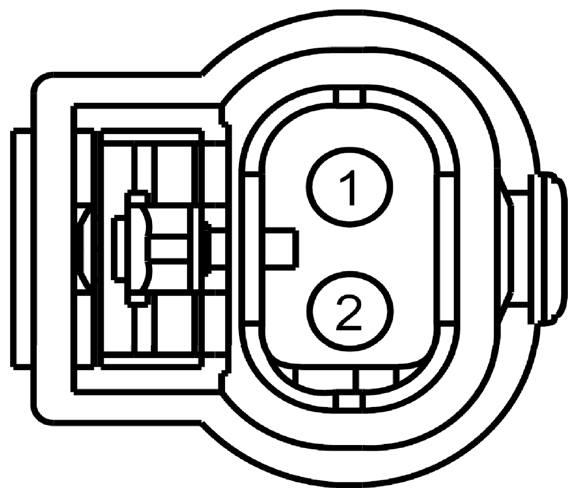

Fig 1: Identifying Variable Camshaft Timing 21 Solenoid Connector (C1610)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR)
2	CE442 (YE-GY)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 21 (VCT21)

Available Pigtail Kits
Pigtail Kit Part Number WPT-1250	Service Part Number: CU2Z-14S411-CA  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Solenoid - Engine Variable Timing
