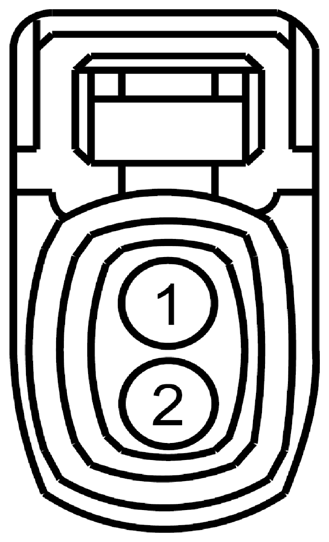

Variable Camshaft Timing 11 (VCT11) Solenoid Connector End View (C1451)

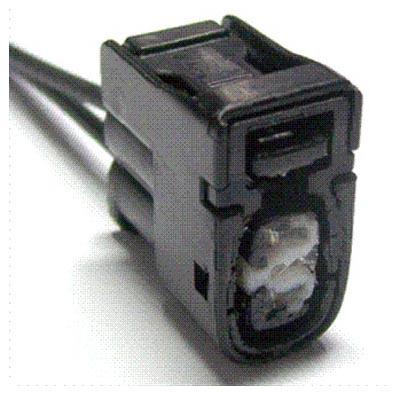

Fig 1: Identifying Variable Camshaft Timing 11 Solenoid Connector (C1451)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR)
2	CE421 (VT)	20	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 11 (VCT11)

Available Pigtail Kits
Pigtail Kit Part Number WPT-1094	Service Part Number: AU2Z-14S411-ADA  Gauge: 16  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Solenoid - Engine Variable Timing
