Seat Cushion Thermoelectric Device (Ted), Passenger Side Connector End View (C3040)

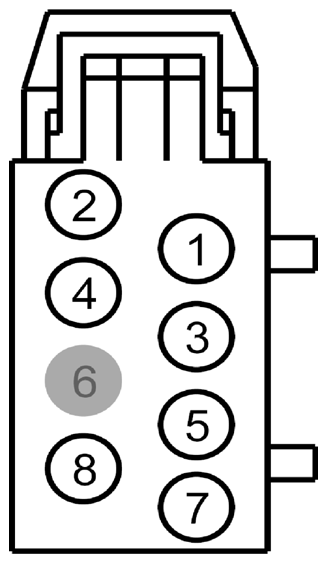

Fig 1: Identifying Seat Cushion Thermoelectric Device, Passenger Side Connector (C3040)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CHS07 (GY-BU)	14	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER +
2	CHS08 (BN-YE)	16	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN +
3	RHS07 (BU)	14	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER -
4	RHS08 (VT-WH)	16	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN -
5	VHS27 (WH-OG)	18	SENSOR - CUSHION TEMP. PASSENGER
6	*	*	Not Used
7	VHS23 (BN-BU)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION BLOWER SPEED CONTROL
8	RHS10 (BU-OG)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP.

Available Pigtail Kits

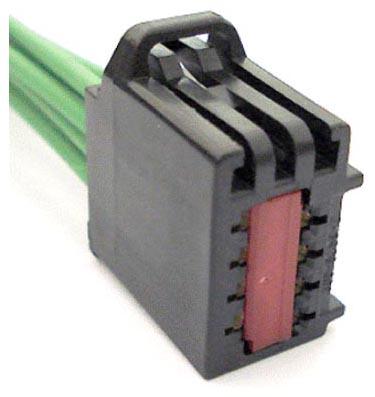

Pigtail Kit Part Number WPT-961	Service Part Number: 3U2Z-14S411-RHB Gauge: 14 Pin material: Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Element - Heated Seat

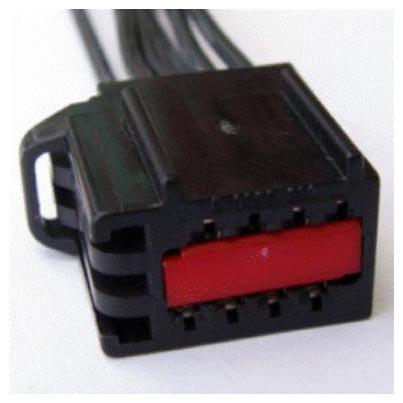

Pigtail Kit Part Number WPT-500	Service Part Number: 3U2Z-14S411-RHA Gauge: 16 Pin material: Tin Cavities: 8 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Element - Heated Seat Mirror - Sideview Module - Heated Seat (driver) Switch - Heated Seat Switch - Heated Seat - LH - Front Switch - Heated Seat - LH - Rear Switch - Heated Seat - RH - Front Switch - Multifunction
