Brake Master Cylinder: Removal
WARNING:
Before beginning any service procedure in this service information, refer to Safety Warnings in
SERVICE INFORMATION
. Failure to follow this instruction may result in serious personal injury.
NOTE:
Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
NOTE:
Removal steps in this procedure may contain installation instructions.
- Remove the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .

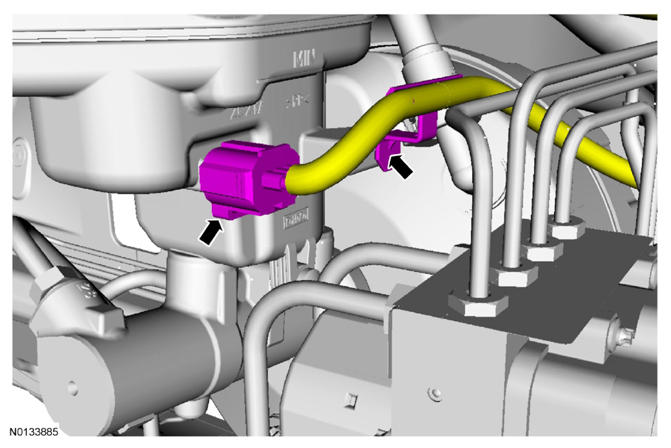

- Remove the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
-

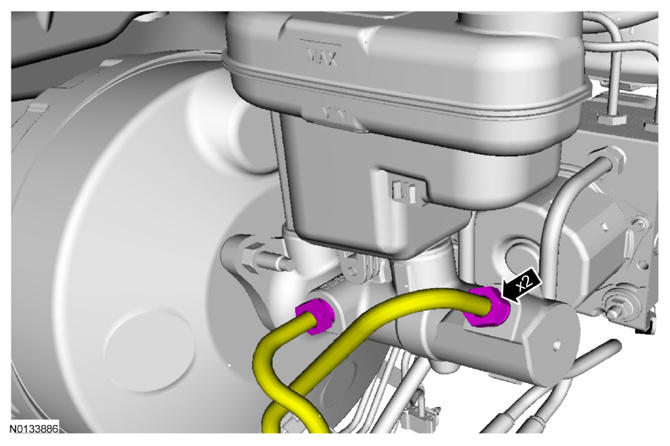

NOTE: The brake tubes must be installed in the same position and orientation as removed.
-

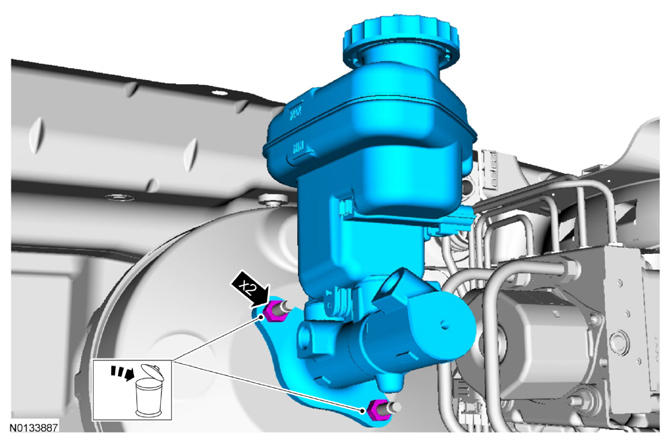

NOTE: Make sure that the master cylinder-to-booster seal is removed with the master cylinder.
Discard the specified component. Follow local disposal regulations.
