Removal and Installation

NOTE: For parts identification and location, refer to SEAT - EXPLODED VIEW, SECOND ROW in this article.

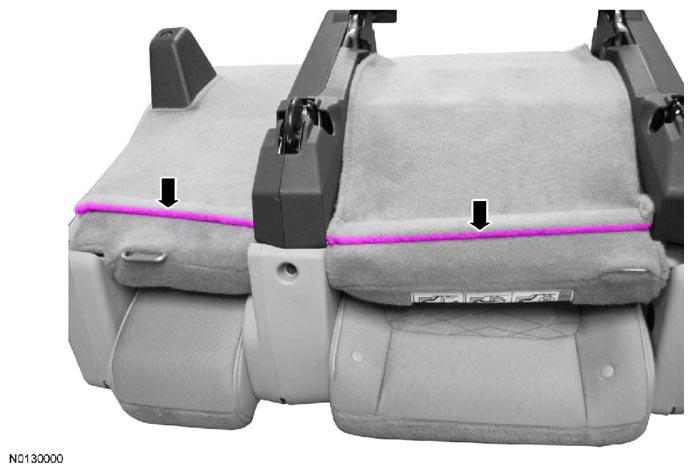

From under the seat, detach the 2 sets of cushion cover J-clips, 1 side retainer and separate the cushion cover from the lower anchor and tethers for children wires.

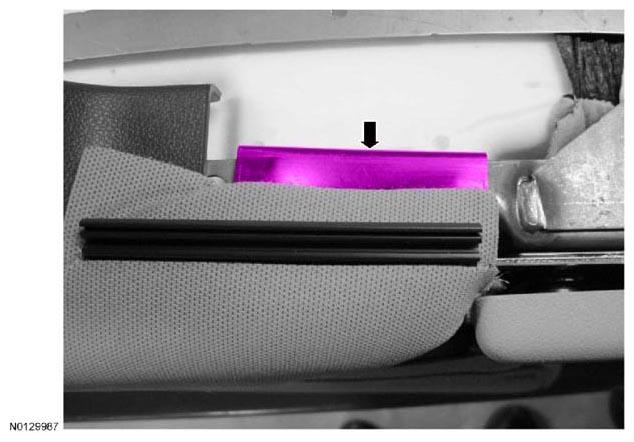

NOTE: Typical cushion cover retainer shown in illustration, others similar.

Detach the cushion cover retainers and pull them out from between the riser and cushion frame.

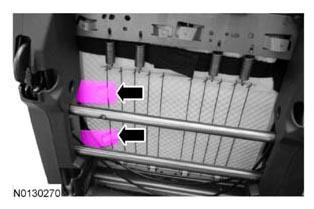

Detach the cushion cover J-clip from the cushion frame.
NOTE: Use care when separating the cushion cover from the hook-and-loop strip or the hook-and-loop strip may be torn from the cushion foam pad.

Turn the cushion cover inside out, separate the hook-and-loop strips, remove the hog rings and the cushion cover.
To install, reverse the removal procedure.
- Make sure the lower anchor and tether for children wires at the rear of the cushion frame are positioned through the cushion cover and accessible for use after installation.
