Removal and Installation

NOTE: For parts identification and location, refer to SEAT - EXPLODED VIEW, SECOND ROW in this article.

Open the cushion cover.
1. Release the clip and separate the strut.
2. Separate the J-clips.
3. Separate the hook-and-loop strips.

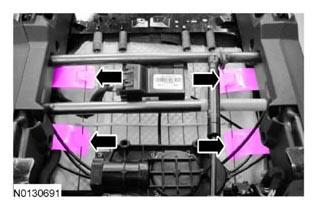

  Fig 1: Identifying Cushion Cover Related Components
  Courtesy of FORD MOTOR CO.
NOTE: Typical cushion cover retainer shown in illustration, others similar.

From under the seat, detach the 4 cushion cover retainers and pull them out from between the cushion frame and seat track.
Remove the cushion foam pad and cushion cover from the cushion frame.
- If equipped, disconnect the cushion heater mat electrical connector.
Remove the hog rings and the cushion cover.
To install, reverse the removal procedure.
- Make sure the lower anchor and tether for children wires at the rear of the cushion frame are positioned through the cushion trim cover and accessible for use after installation.
