Bumper Cover - Rear: Removal
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
- Remove the rear tail lamps. For additional information, refer to Removal .

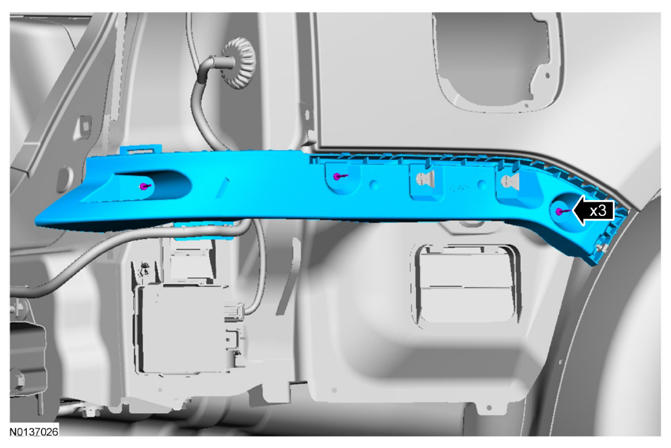

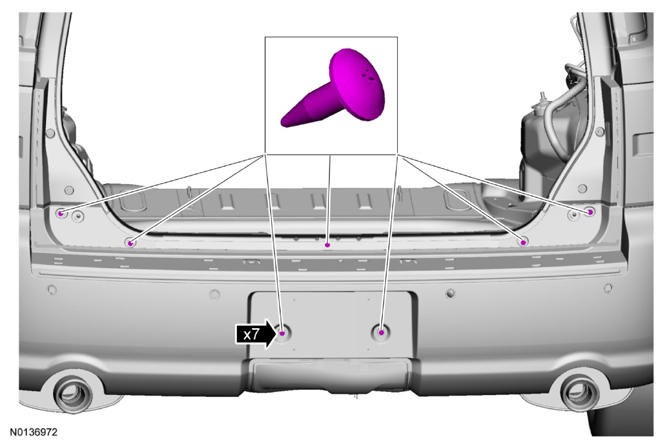

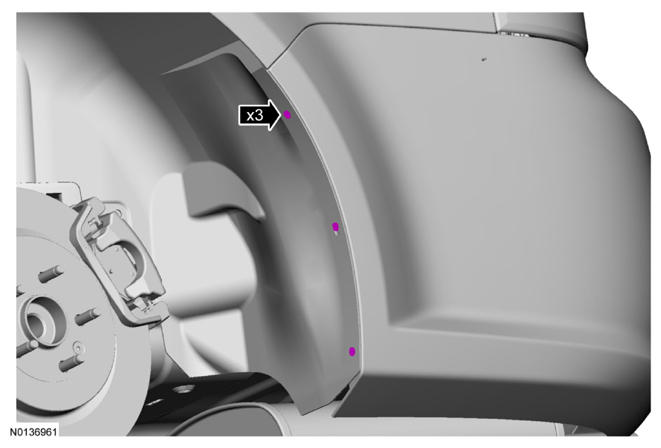

- Three on each side.
-

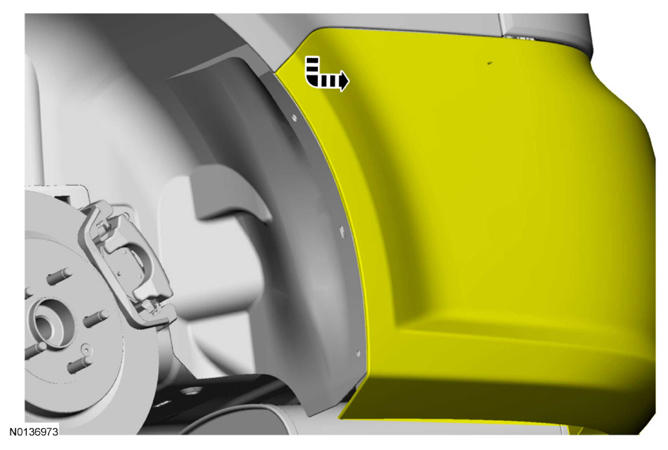

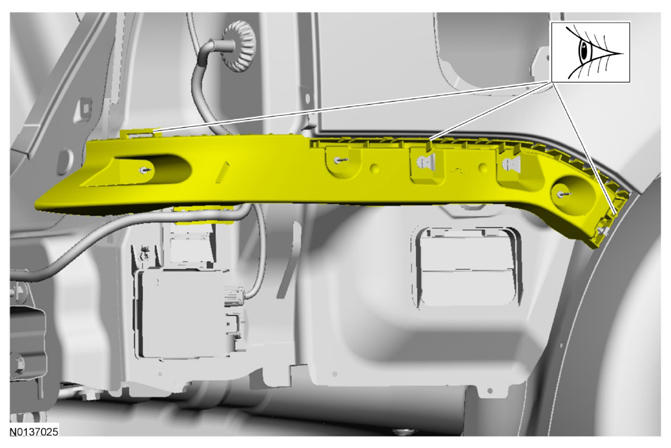

NOTE: The upper rearward portion of the bumper cover must be pulled outward to release it from the bumper cover mounting reinforcement.
On each side.
-

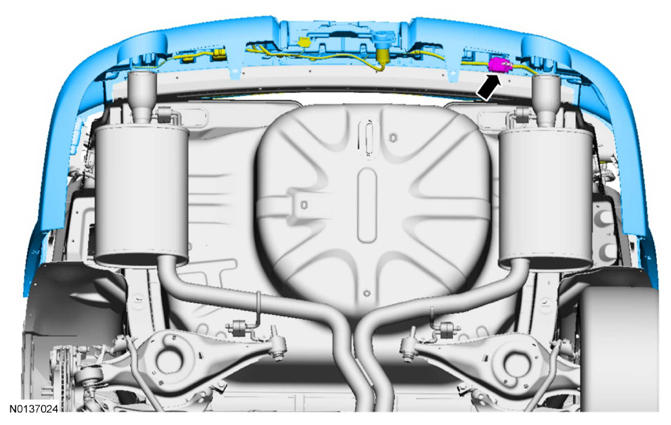

NOTE: The rear parking aid sensors and license plate lamps will stay attached to the rear bumper cover.
- Remove the rear bumper cover.
- If necessary.
