Bumper - Rear: Removal

  1. Remove the rear bumper cover. For additional information, refer to BUMPER COVER - REAR .
    • To install, tighten to 23 Nm (17 lb-ft).

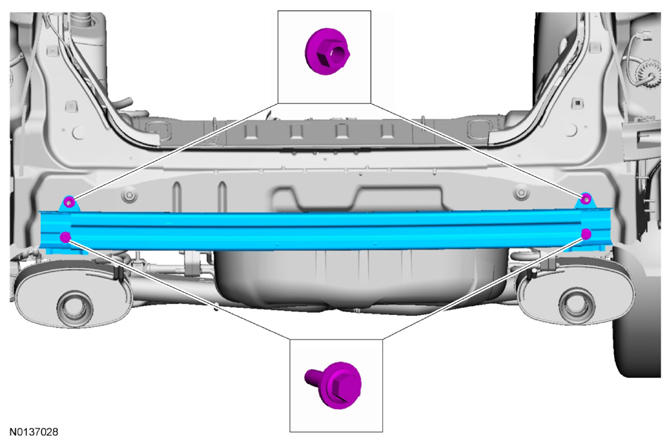

      G08619795
  3. NOTE: Inspect the rear bumper double-ended studs for damage. If necessary, install new rear bumper double-ended studs.
    NOTE: Anytime the rear bumper nuts are removed, it is necessary to re-tighten the rear bumper double-ended studs.
    • Tighten the rear bumper double-ended studs to 12 Nm (106 lb-in).
