Removal and Installation

NOTE: Removal steps in this procedure may contain installation details.

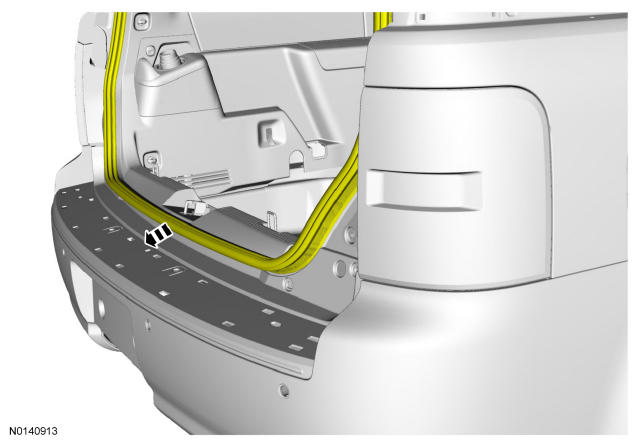

  1. G08619189

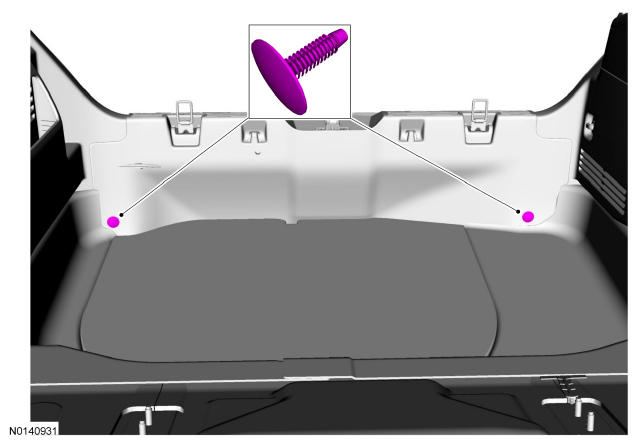

  2. G08619190

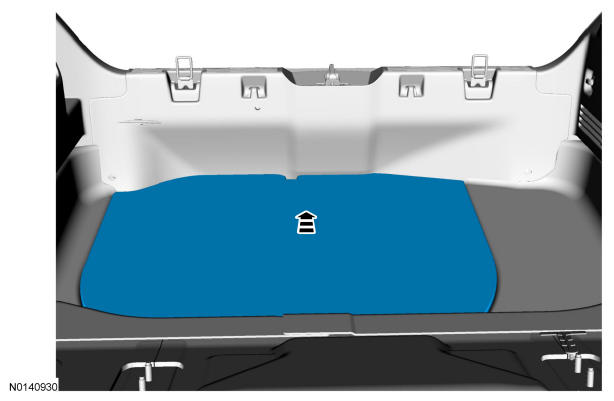

  3. G08619191

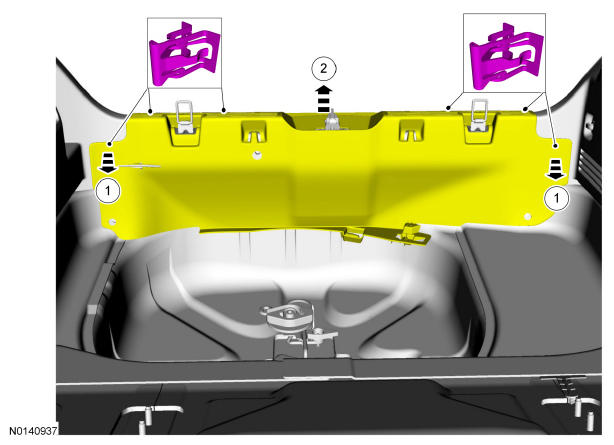

  4. G08619192

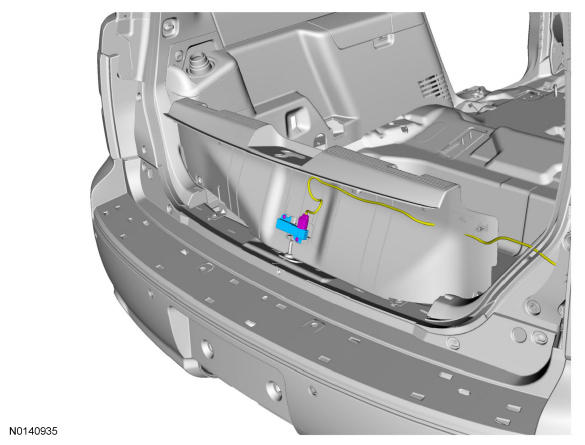

  5. G08619193
  6. To install, reverse the removal procedure.
