Removal and Installation

NOTE: Driver seat shown in illustration, passenger seat similar.

NOTE: Removal steps in his procedure may contain installation details.

Remove the front seat. Refer to SEAT - FRONT .
If equipped.

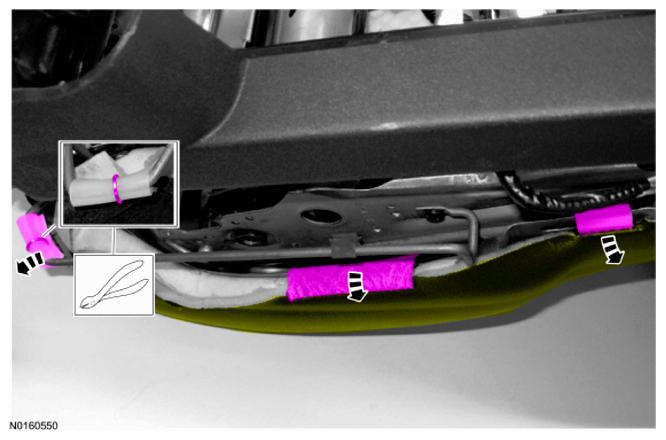

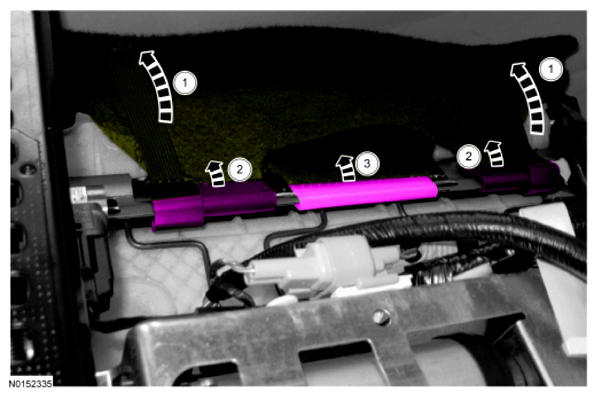

1. Release the 2 toe-kick J-clips.
2. Release the 2 seat back trim cover J-clips.
3. Release the 2 seat cushion trim cover J-clips.

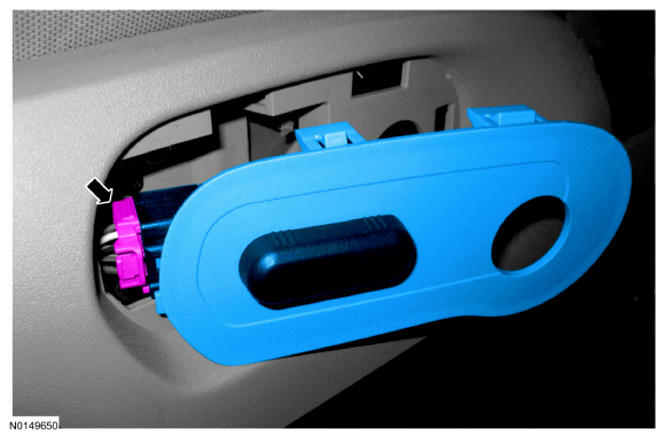

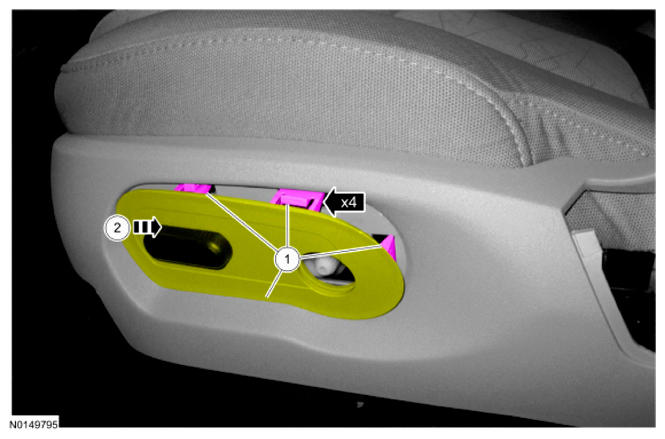

NOTE: 6-way seat control switch shown in illustration, 10-way similar
1. From under the cushion side shield, push out from behind the seat control switch bezel to start detachment.
2. NOTE: Do not pull out at the front of the seat control switch bezel, slide it rearward. Otherwise, the seat control switch bezel retainers can break.

  Slide the seat control switch bezel rearward to release from the cushion side shield.
NOTE: 6-way seat control switch shown in illustration, 10-way similar.
NOTE: Follow the unique instructions or graphic for this step in installation.

General Equipmnet: Side Cutter Pliers

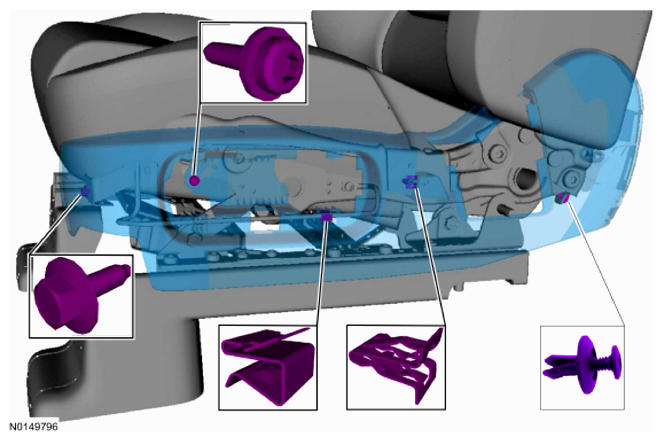

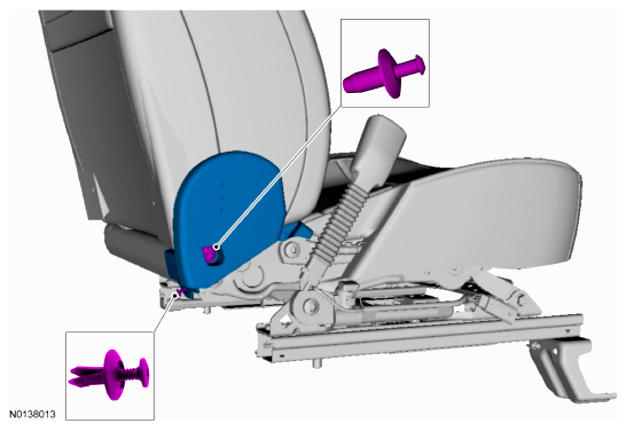

1. On both sides.

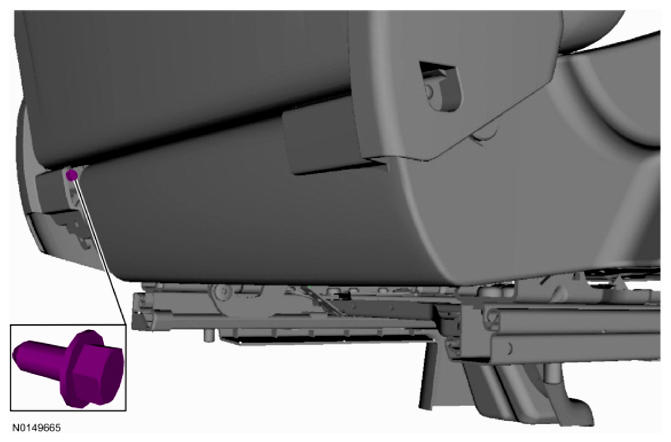

2. On both sides.
NOTE: Follow the unique instructions or graphic for this step in installation.

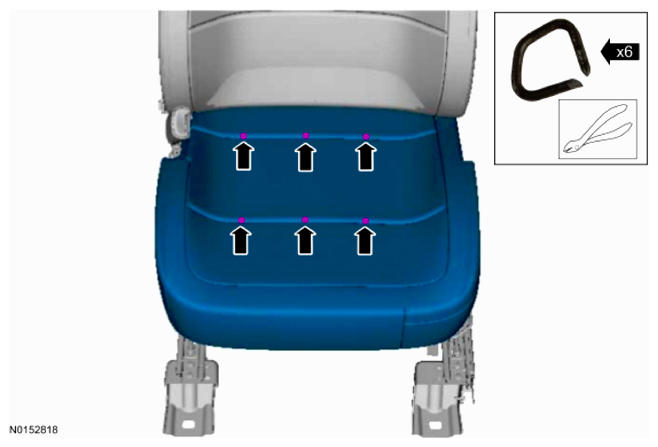

General Equipment: Side Cutter Pliers

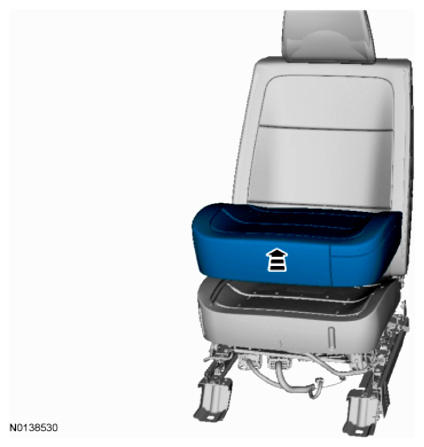

To install, reverse the removal procedure.

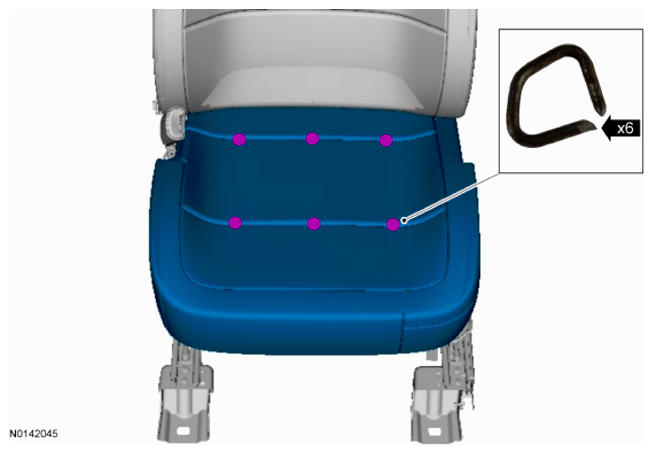

General Equipment: Hog Ring Pliers.
General Equipment: Hog Ring Pliers.
