Removal and Installation

NOTE: Driver seat shown in illustration, passenger seat similar.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front seat. Refer to SEAT - FRONT .

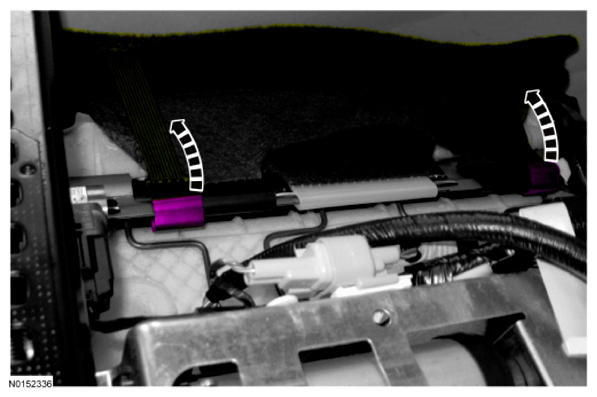

  2. G09574778
  3. NOTE: 6-way seat control switch shown in illustration, 10-way similar
    1. From under the cushion side shield, push out from behind the seat control switch bezel to start detachment.
    2. NOTE: Do not pull out at the front of the seat control switch bezel, slide it rearward. Otherwise, the seat control switch bezel retainers can break.

      Slide the seat switch bezel rearward to release from the cushion side shield.

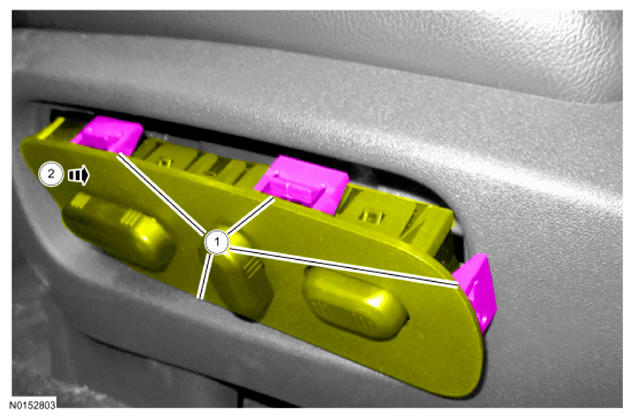

      G09574779

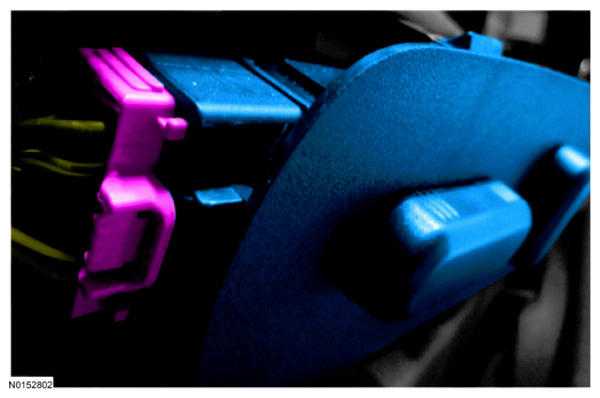

  4. G09574780

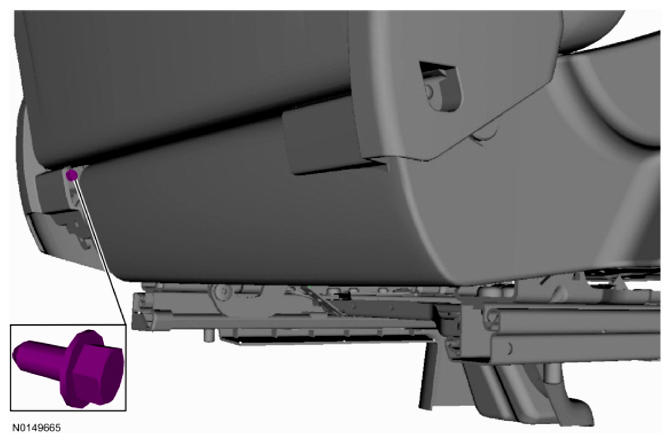

  5. G09574781

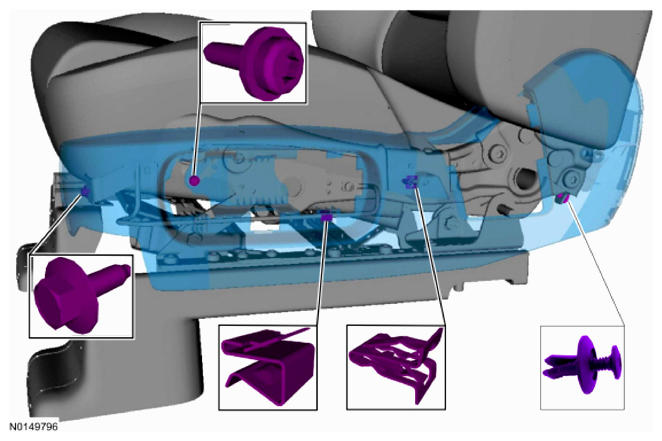

  6. G09574782

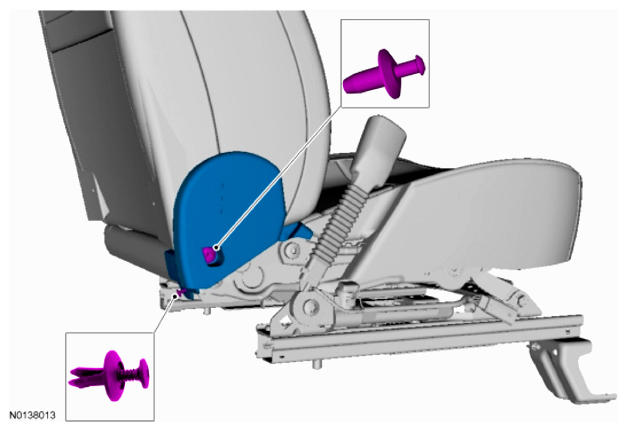

  7. G09574783

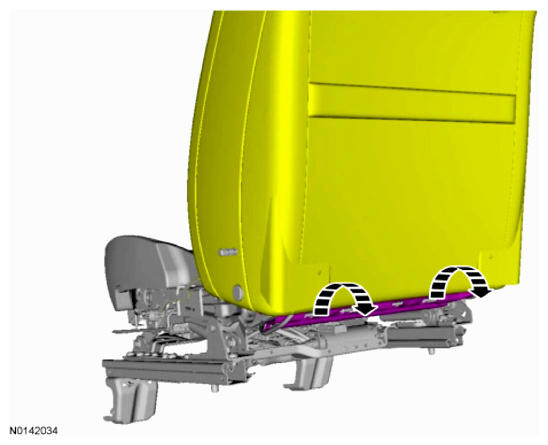

  8. G09574784
  9. NOTE: Follow the unique instructions or graphic for this step in installation.

    General Equipment: Side Cutter Pliers.

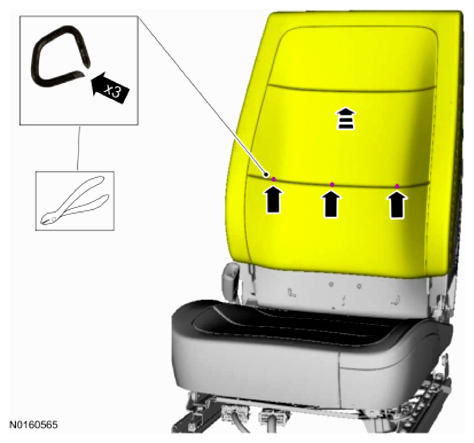

    G09574785
  10. G09574786

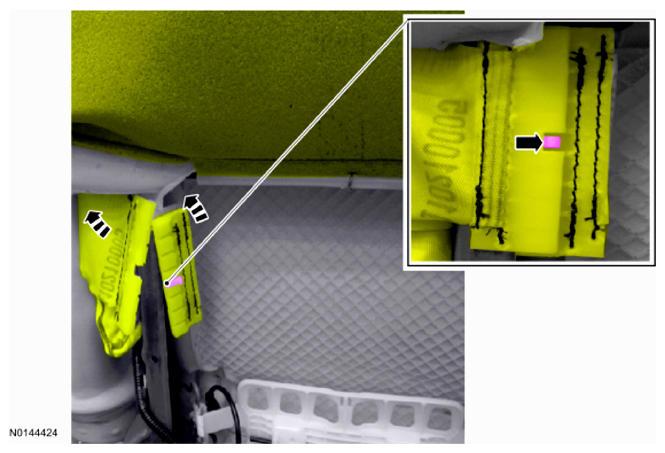

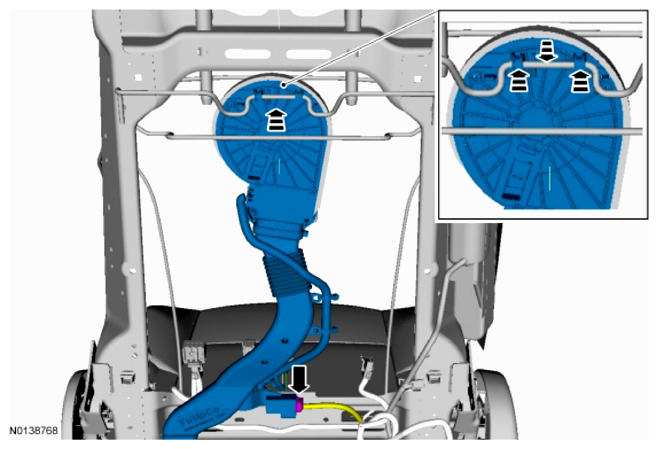

  11. G09574787
  12. To install, reverse the removal procedure.
  13. General Equipment: Hog Ring Pliers.

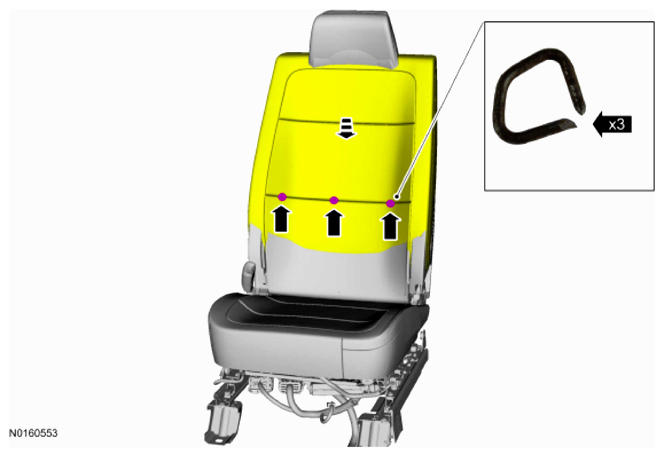

    G09574788
