60/40 Percent Seats

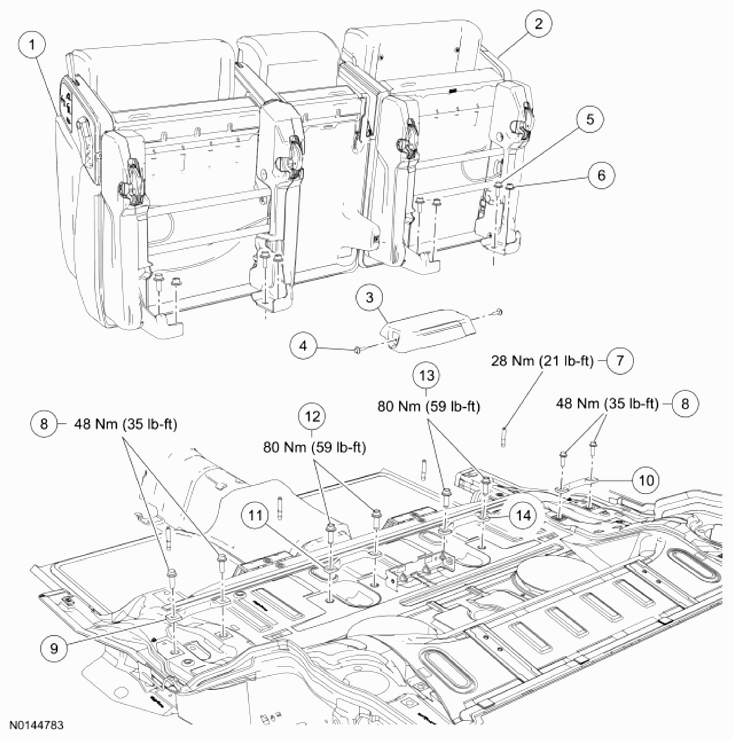

Fig 1: Exploded View Of Second Row Seat (60/40 Percent)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	60 percent seat assembly
2	-	40 percent seat assembly
3	04752	Console bracket cover
4	W706862	Screw (2 required)
5	W708175	Seat-to-floor bolt (4 required)
6	N802068	Seat-to-floor nut (4 required)
7	W708166	Floor stud (4 required)
8	W505275	Outboard striker-to-floor bolts (4 required)
9	78613A64	LH outboard striker
10	74613A64	RH outboard striker
11	74613B96	LH inboard striker
12	W714306	LH inboard striker-to-floor bolts (2 required)
13	W505285	RH inboard striker-to-floor bolts (2 required)
14	74613B96	RH inboard striker
