40 Percent Power-Fold Seat

NOTE: LH seat shown in illustration, RH similar.

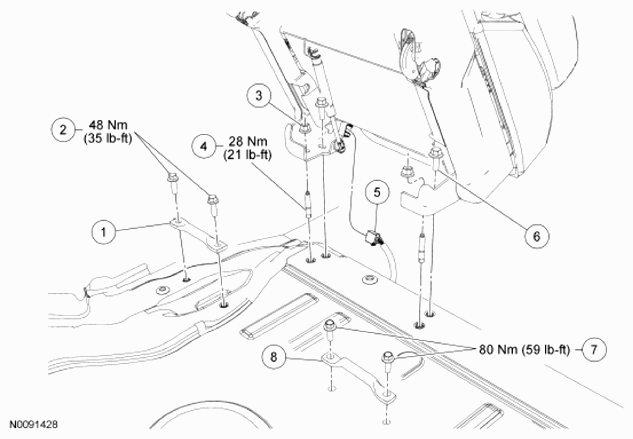

Fig 1: LH Seat Related Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	78613A64	LH outboard striker
2	W505275	LH outboard striker-to-floor bolts (2 required)
3	N802068	Seat-to-floor nuts (2 required)
4	W708166	Floor studs (2 required)
5	-	Power-fold seat electrical connector
6	W708175	Seat-to-floor bolts (4 required)
7	W714306	LH inboard striker-to-floor bolts (2 required)
8	74613B96	LH inboard striker
