Removal and Installation

NOTE: For parts identification and location, refer to SEAT - EXPLODED VIEW, SECOND ROW in this article.

Remove the manual recline handle.
1. Locate the spring clip between the recline cover and handle.
2. Remove the clip and slide the manual recline handle off the shaft.

  Fig 1: Identifying Spring Clip And Manual Recline Handle
  Courtesy of FORD MOTOR CO.
Pull to release the retainers and remove the outboard recliner outer cover.
- Pull the strap through the outboard cover.
Separate the cable retainer and cable end from the outboard recliner.

Fig 2: Locating Cable Retainer And Cable End
Courtesy of FORD MOTOR CO.
Separate the J-clips and open the cushion cover.

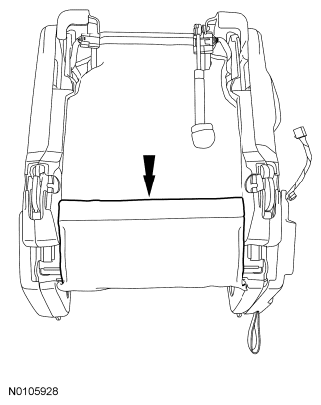

Fig 3: Locating Cushion Cover
Courtesy of FORD MOTOR CO.
NOTE: Typical cushion cover retainer shown in illustration, others similar.

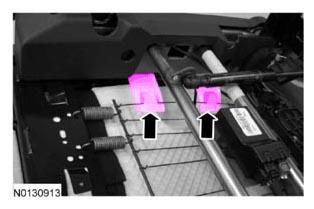

From under the seat, pull the cushion cover retainers out from between the cushion frame and seat track on the outboard side.
Remove the 2 screws, disconnect the electrical connector, route the cable out and remove the power fold seat motor.

Fig 4: Locating Power Fold Seat Motor Cable And Mounting Screws
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
