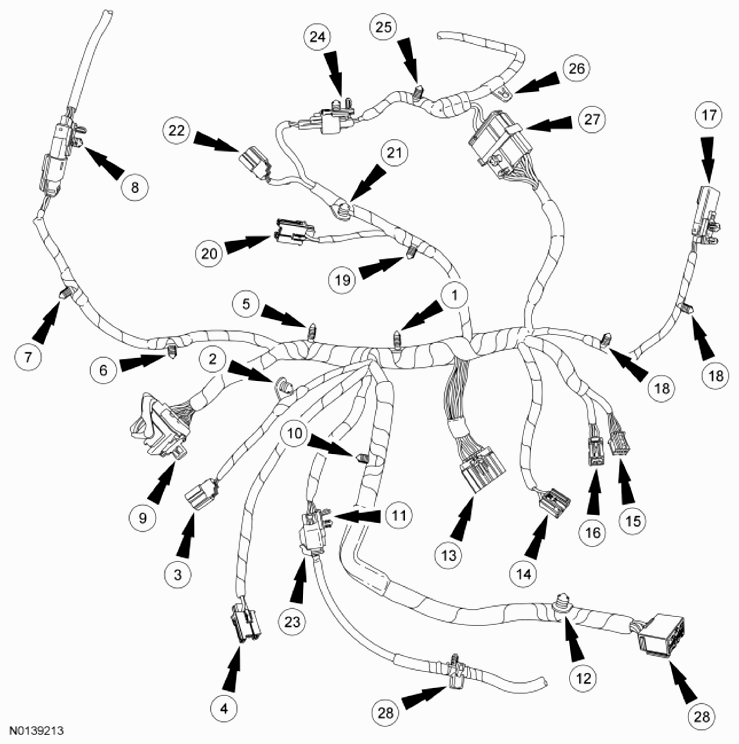

| 1 |
Seat wire harness main retainer |
| 2 |
Occupant Classification Sensor (OCS) weight sensor bolt D wire harness retainer |
| 3 |
OCS weight sensor bolt D electrical connector |
| 4 |
Front height motor electrical connector |
| 5 |
Seat wire harness main retainer |
| 6 |
Safety belt buckle and pretensioner wire harness retainer |
| 7 |
Safety belt buckle and pretensioner wire harness retainer |
| 8 |
Safety belt buckle and pretensioner electrical connector and retainer |
| 9 |
Seat wire harness main electrical connector and retainer |
| 10 |
Seat control switch wire harness retainer |
| 11 |
Cushion heater mat electrical connector and retainer |
| 12 |
Seat control switch wire harness retainer |
| 13 |
Occupant Classification System Module (OCSM) electrical connector |
| 14 |
Rear height motor electrical connector |
| 15 |
Heated seat module electrical connector (large) |
| 16 |
Heated seat module electrical connector (small) |
| 17 |
Belt Tension Sensor (BTS) wire harness electrical connector and retainer |
| 18 |
BTS wire harness retainer |
| 19 |
OCS weight sensor bolt C wire harness retainer |
| 20 |
Horizontal motor electrical connector |
| 21 |
OCS weight sensor bolt C wire harness retainer |
| 22 |
OCS weight sensor bolt C electrical connector |
| 23 |
Cushion heater mat component side electrical connector and retainer |
| 24 |
Side air bag electrical connector and retainer |
| 25 |
Backrest wire harness retainer |
| 26 |
Backrest wire harness retainer |
| 27 |
Backrest wire harness electrical connector and retainer |
| 28 |
Seat control switch electrical connector |
