Seat Wire Harness Routing
>>
Power Passenger Seat Track
>>
Wire Harness Installed View
Wire Harness Installed View

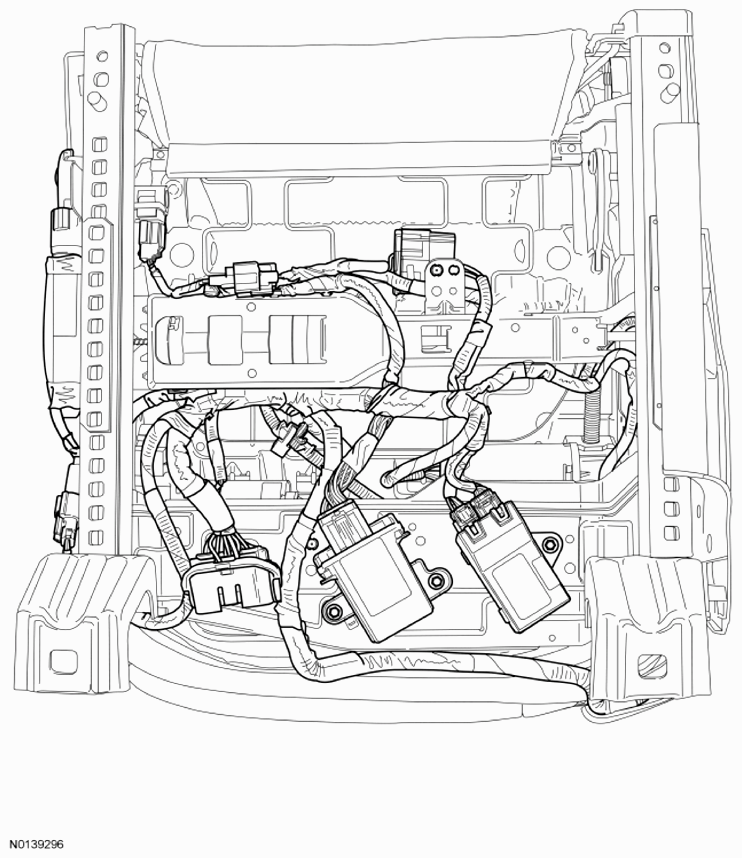

Fig 1: Overview Of Power Passenger Seat Track Wire Harness
Courtesy of FORD MOTOR CO.
Make sure the passenger seat cushion wire harness is correctly routed and attached.
Courtesy of FORD MOTOR CO.
