Retainer and Connector Location View, Outboard Side

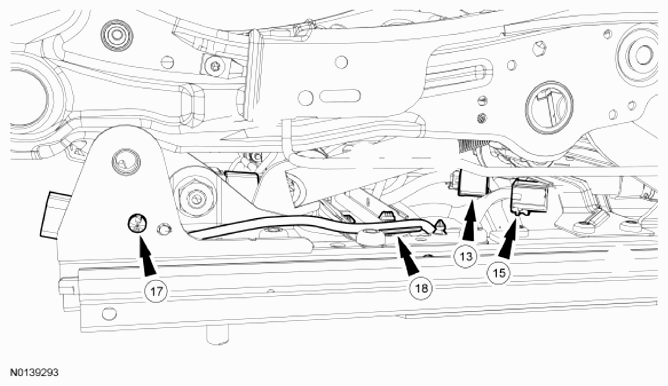

Fig 1: Power Passenger Seat Track Retainer And Connector Location (Outboard Side)

G09574712

Courtesy of FORD MOTOR CO.
