Retainer and Connector Location View, Cushion Frame From Underneath

NOTE: See supporting views for missing numbers.

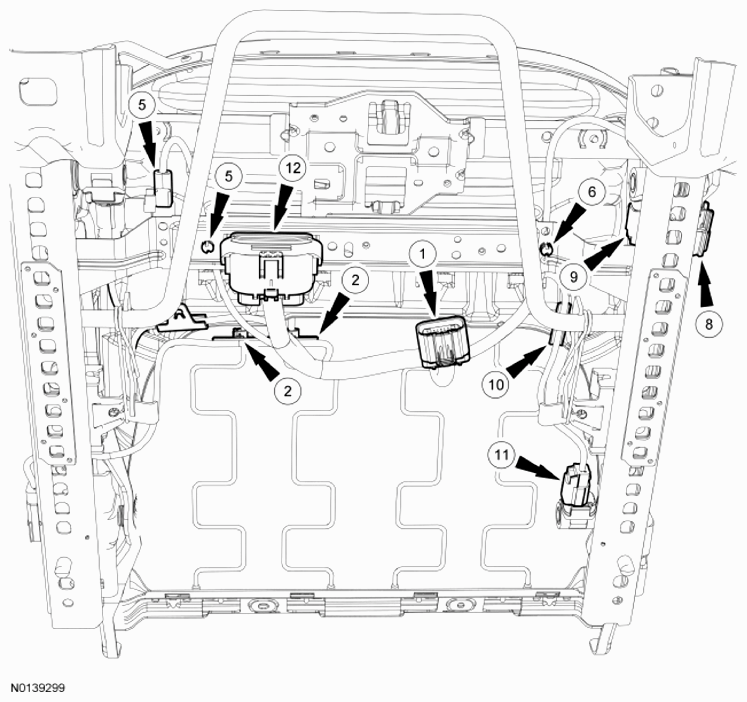

Fig 1: Manual Passenger Seat Track Retainer And Connector Location (Cushion Frame From Underneath)

Courtesy of FORD MOTOR CO.

Item	Description
1	Occupant Classification System Module (OCSM) electrical connector
2	Belt Tension Sensor (BTS) wire harness retainers
3	BTS wire harness retainer
4	BTS wire harness electrical connector and retainer
5	Side air bag module electrical connector and wire harness retainer
6	Safety belt buckle and pretensioner wire harness retainer
7	Safety belt buckle and pretensioner wire harness retainer
8	Safety belt buckle and pretensioner electrical connector
9	OCS weight sensor bolt D electrical connector
10	OCS weight sensor bolt C wire harness retainer(1)
11	OCS weight sensor bolt C electrical connector
12	Seat wire harness main electrical connector and retainer
(1) Make sure the wire harness passes on the correct side of seat track lever as shown in illustration.
