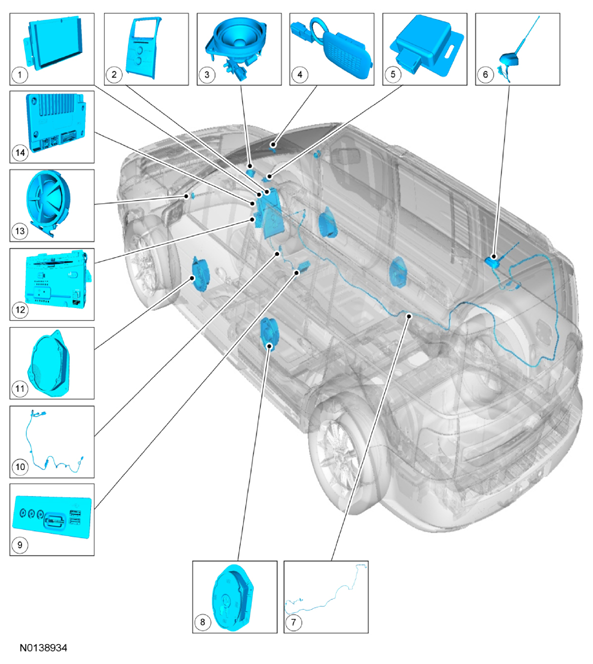

Component Location
| Item | Description | Comments |
|---|---|---|
| 1 | Front Display Interface Module (FDIM) | - |
| 2 | Front Controls Interface Module (FCIM) | - |
| 3 | Speaker - instrument panel | - |
| 4 | Microphone - SYNC® | - |
| 5 | Global Positioning System Module (GPSM) | - |
| 6 | Antenna - satellite radio | - |
| 7 | Antenna cable - satellite radio, AM/FM | - |
| 8 | Speaker - rear door | - |
| 9 | Media hub | - |
| 10 | Universal Serial Bus (USB) cable | - |
| 11 | Speaker - front door | - |
| 12 | Audio Front Control Module (ACM) | - |
| 13 | Speaker - A-pillar | - |
| 14 | Accessory Protocol Interface Module (APIM) | - |
