Removal and Installation

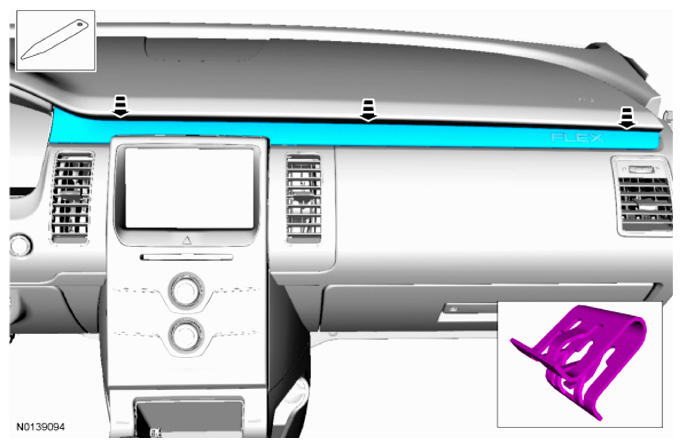

  1. Remove the RH instrument panel finish panel.
    • Starting at the RH side of the RH instrument panel finish panel, pry the RH instrument panel finish panel outward to release the retaining clips.
      G09575192
  2. To install, reverse the removal procedure.
    • Make sure to align the retaining clips to the adjacent retaining clip holes.
