Turbocharger Coolant Supply Tube - RH: Installation

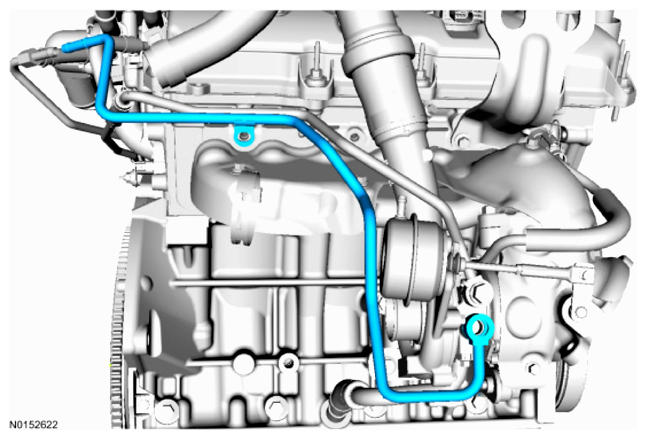

  1. G09570981

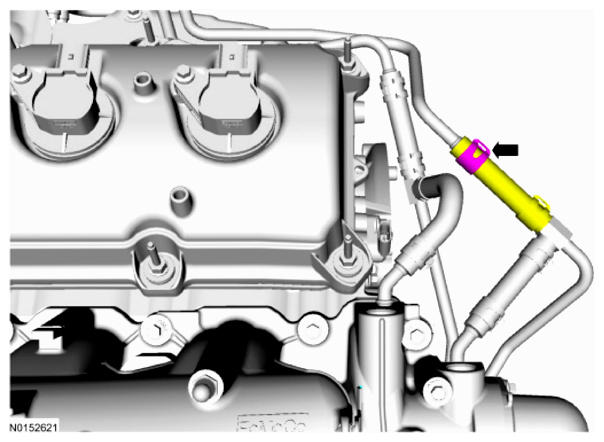

  2. G09570980
  3. Install a new turbocharger coolant tube linked sealing washer.
    G09570963
  4. Finger tighten only at this stage.
    G09570978
  5. Finger tighten only at this stage.
    G09570933

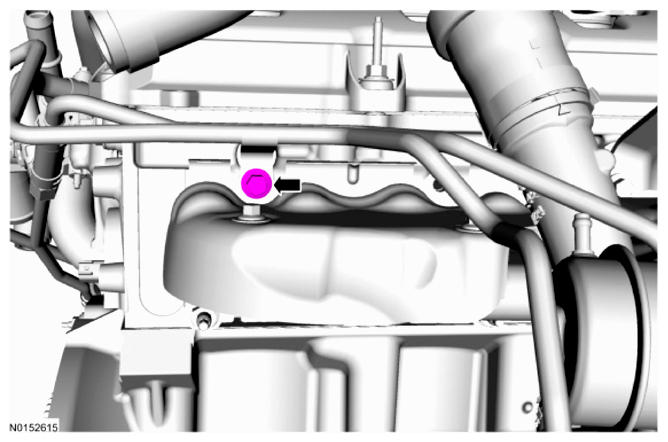

  6. Tighten to 40 Nm (30 lb-ft).

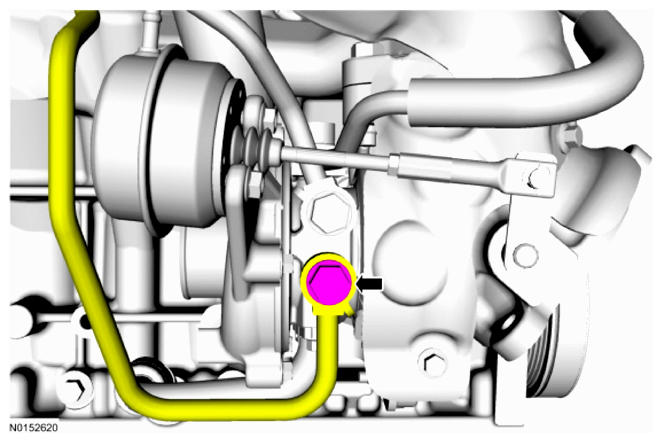

    G09570978
  7. Tighten to 12 Nm (107 lb-in).
    G09570933

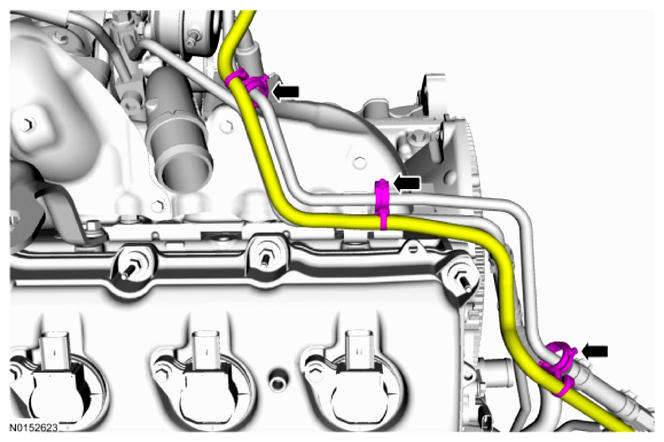

  8. G09570932
  9. Install the turbocharger inlet air tube.
    • 1. Tighten to 5 Nm (44 lb-in).
    • 2. Tighten to 5 Nm (44 lb-in).

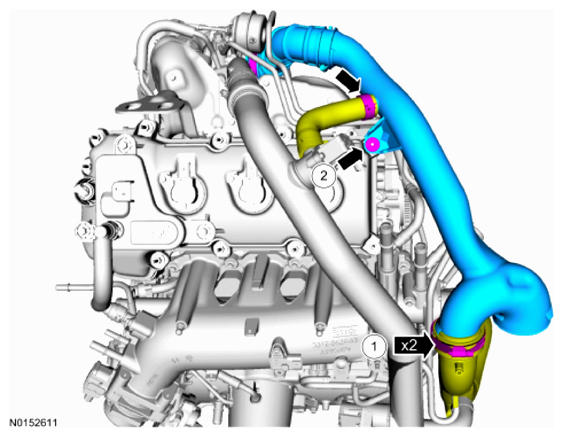

      G09570946
  10. Instal the air cleaner assembly and the air cleaner outlet tube. Refer to INTAKE AIR DISTRIBUTION AND FILTERING
  11. 11 Nm (97 lb-in).

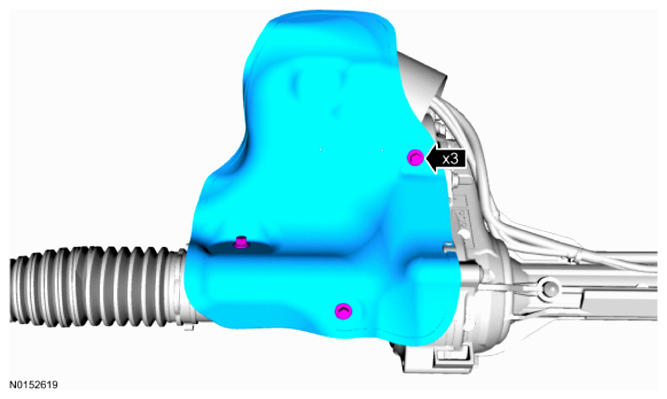

    G09570930
  12. Install the RH  catalytic converter. Refer to EXHAUST SYSTEM
  13. Fill the cooling system. Refer to ENGINE COOLING
  14. If equipped.
    G09570907
  15. G09570906
