Brake Vacuum Pump - 1.0L EcoBoost (90kW/120PS): Removal
NOTE:
Removal steps in this procedure may contain installation details.

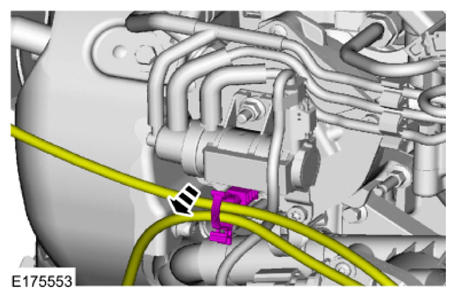

- Refer to: AIR CLEANER OUTLET PIPE .

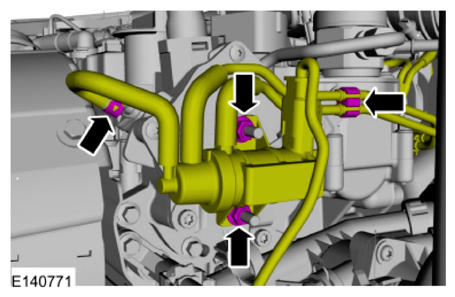

- Torque
: 89 lb.in (10 Nm)
-

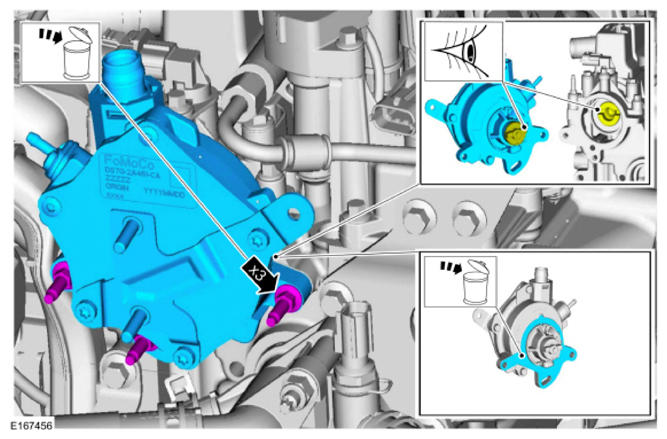

NOTE: Manually align the brake vacuum pump drive key with the camshaft slot before installation.
Torque : 89 lb.in (10 Nm)
-
NOTE: Make sure the mating surfaces are clean and free of foreign material and thread lock residue is cleaned from the bolt holes.
Material : Motorcraft® Metal Surface Prep/ZC-31-B
