1.6L EcoBoost

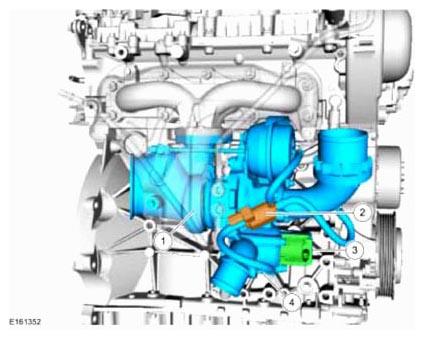

G08637577
Item Description
1 Turbocharger
2 Turbocharger wastegate regulating valve solenoid
3 Turbocharger bypass valve
4 Pressure side of compressor
